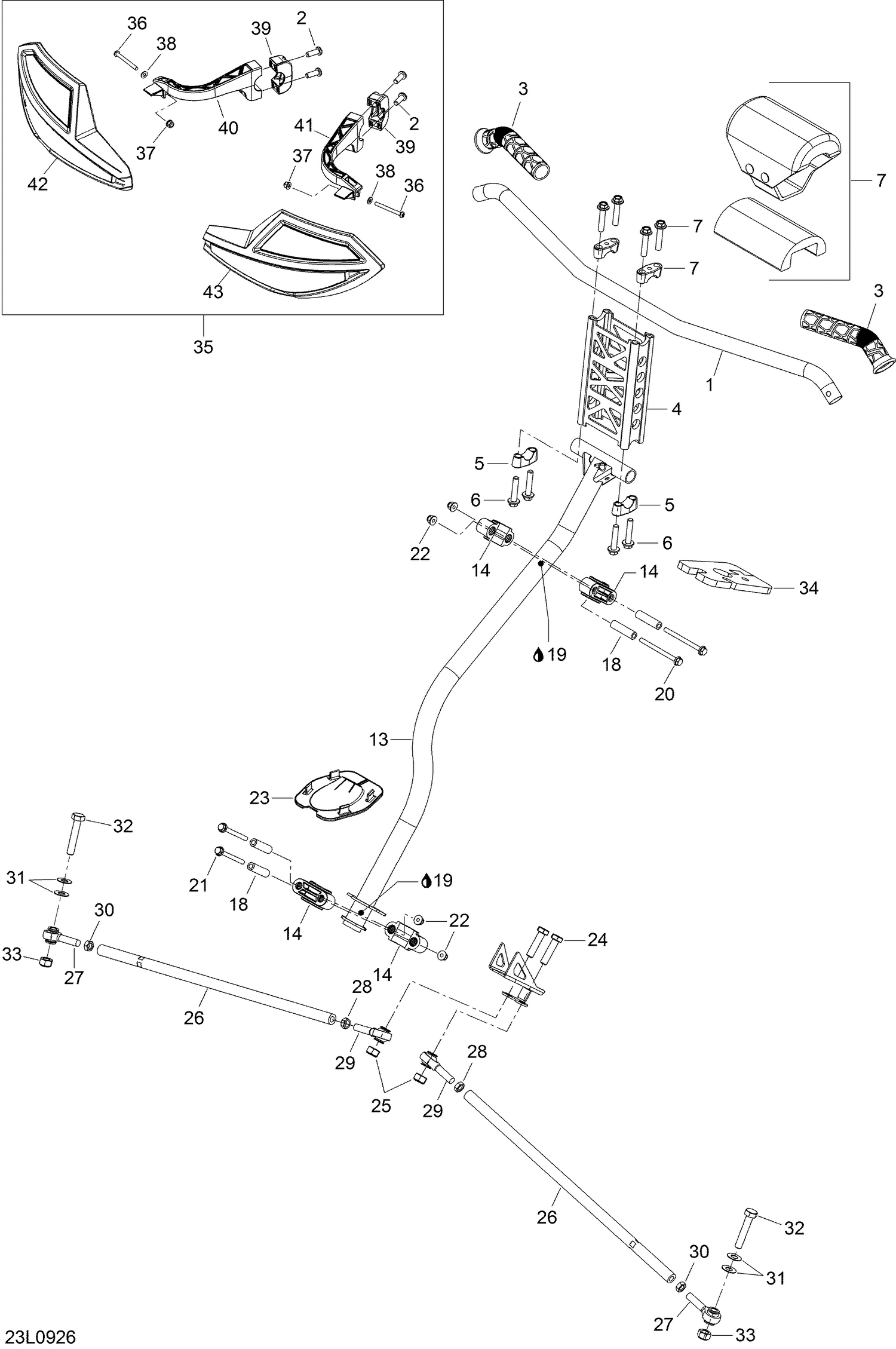

07- Steering System
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152087 | BLACK HANDLE BAR - Call your local BRP dealership |
| 2 | 250000172 | SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 3 | 506152486 | Grip This part replaces 506152226. |
| 4 | 506152457 | Extension 130 mm. This part replaces 506152109. |
| 5 | 506152751 | Steering Support This part replaces 506152395. |
| 6 | 250000285 | Hex Flanged Screw M8 x 40 |
| 7 | 506152265 | Steering Pad |
| 13 | 506152964 | Main Tube This part replaces 506152401. |
| 14 | 506152293 | Upper Half-Housing |
| 18 | 506152297 | Housing Bushing |
| 19 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 20 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 21 | 207667044 | Hex Flange Screw M6 x 65 |
| 22 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 23 | 506152163 | Plate |
| 24 | 207004034 | Hex. Screw M10 X 40 |
| 25 | 232500416 | Elastic Stop Nut M10 |
| 26 | 506152499 | ROD_TIE ASSY - Call your local BRP dealership This part replaces 506152413. |
| 27 | 506152081 | Ball Joint |
| 28 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 29 | 506152019 | Ball Joint |
| 30 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 31 | 506152194 | Washer |
| 32 | 207005544 | Hex Screw M10 X 55 |
| 33 | 232500416 | Elastic Stop Nut M10 |
| 34 | 506152334 | CUSHION - Call your local BRP dealership |
| 36 | 205444086 | Socket Head Screw M4 X 40 |
| 37 | 232541484 | Elastic Stop Nut M4 |
| 38 | 234041480 | Flat Washer 4 mm |
| 39 | 517303264 | U-clamp |
| 40 | 517303590 | RH DEFLECTOR SUPPORT - Call your local BRP dealership |
| 41 | 517303591 | LH DEFLECTOR SUPPORT - Call your local BRP dealership |
| 42 | 517303956 | R.H. deflector |
