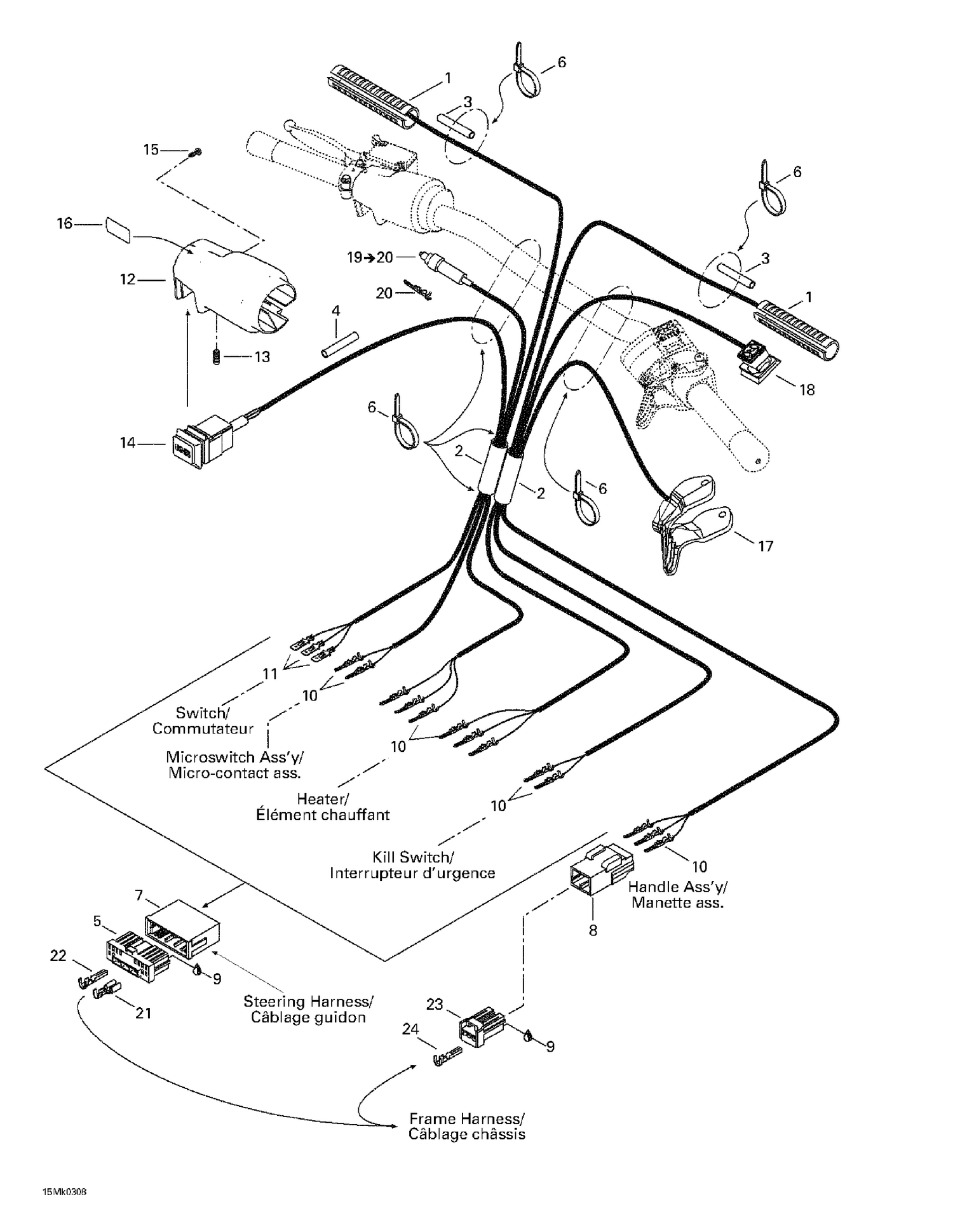

| Ref | Part Number | Description |
|---|
| 1 |
515175573 |
Heating Grip |
| 2 |
515175314 |
GAINE LOW TEMP.VINYL - Call your local BRP dealership |
| 3 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 4 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 5 |
515175350 |
Female Terminal Housing, 13 Circuits |
| 6 |
414115200 |
Tie-Rap 180 mm |
| 7 |
515175352 |
MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 8 |
515175494 |
Male Housing, 3 Circuits |
| 9 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 10 |
515175232 |
Male Terminal |
| 11 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 12 |
515175696 |
BRAKE HOUSING - Call your local BRP dealership |
| 13 |
414440800 |
Socket Set Screw M8 X 10 |
| 14 |
515175563 |
Dimmer Switch |
| 15 |
250000022 |
SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 16 |
415025500 |
Switch Decal |
| 17 |
512059159 |
Heat Throttle Handle (26 mm) |
| 18 |
515177362 |
Emergency Stop Switch This part replaces 512059482. |
| 19 |
507032366 |
Microswitch |
| 20 |
515175232 |
Male Terminal |
| 21 |
515175282 |
Female Terminal |
| 22 |
515175231 |
Female Terminal |
| 23 |
515175495 |
Female Housing, 3 Circuits |
| 409901300 |
Gaine |
De Vinyle Basse Température - Appelez votre concessionnaire BRP local 409901300 |
| 409901300 |
LOW |
TEMPERATURE VINYL TUBING - Call your local BRP dealership 409901300 |
