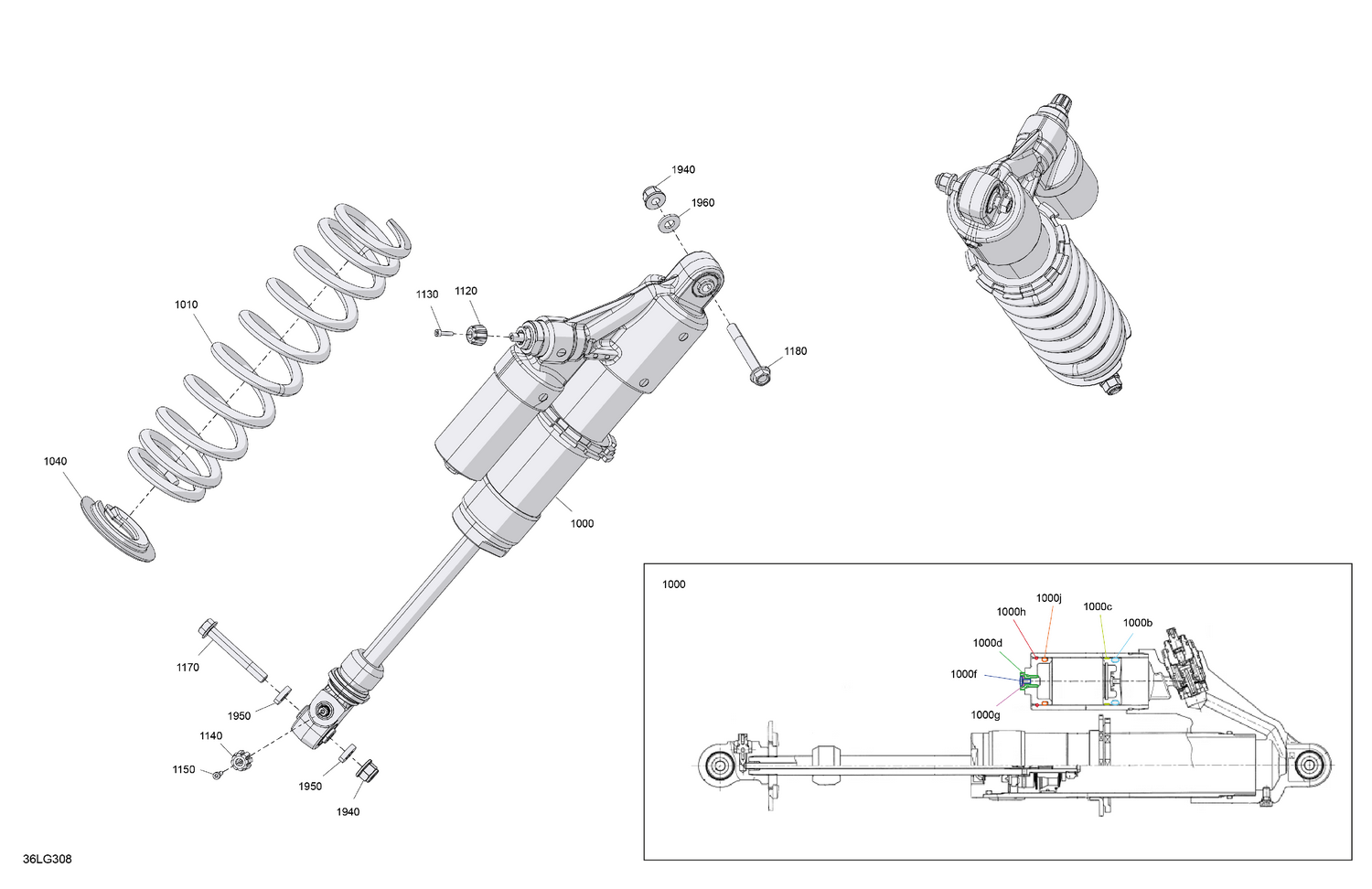

05- Suspension - Front Shocks
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1000b | 415093807 | O-Ring |
| 1000c | 415093806 | Piston Ring |
| 1000d | 505070398 | Air Valve |
| 1000f | 505070399 | Screw |
| 1000g | 505070400 | O-Ring |
| 1000h | 715900076 | CIRCLIP - Call your local BRP dealership |
| 1000j | 415093804 | O-Ring |
| 1010 | 505076114 | Viper Red, Spring 280Mm-20 N/Mm |
| 1040 | 503196528 | Stopper Spring |
| 1120 | 505072753 | Adjustment Knob |
| 1130 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1140 | 505072753 | Adjustment Knob |
| 1150 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1170 | 250000824 | Hexagonal Flange Screw M8 X 58 |
| 1180 | 250000824 | Hexagonal Flange Screw M8 X 58 |
| 1940 | 233281466 | Elastic Flang Nut M8 |
| 1950 | 505073892 | Spacer |
