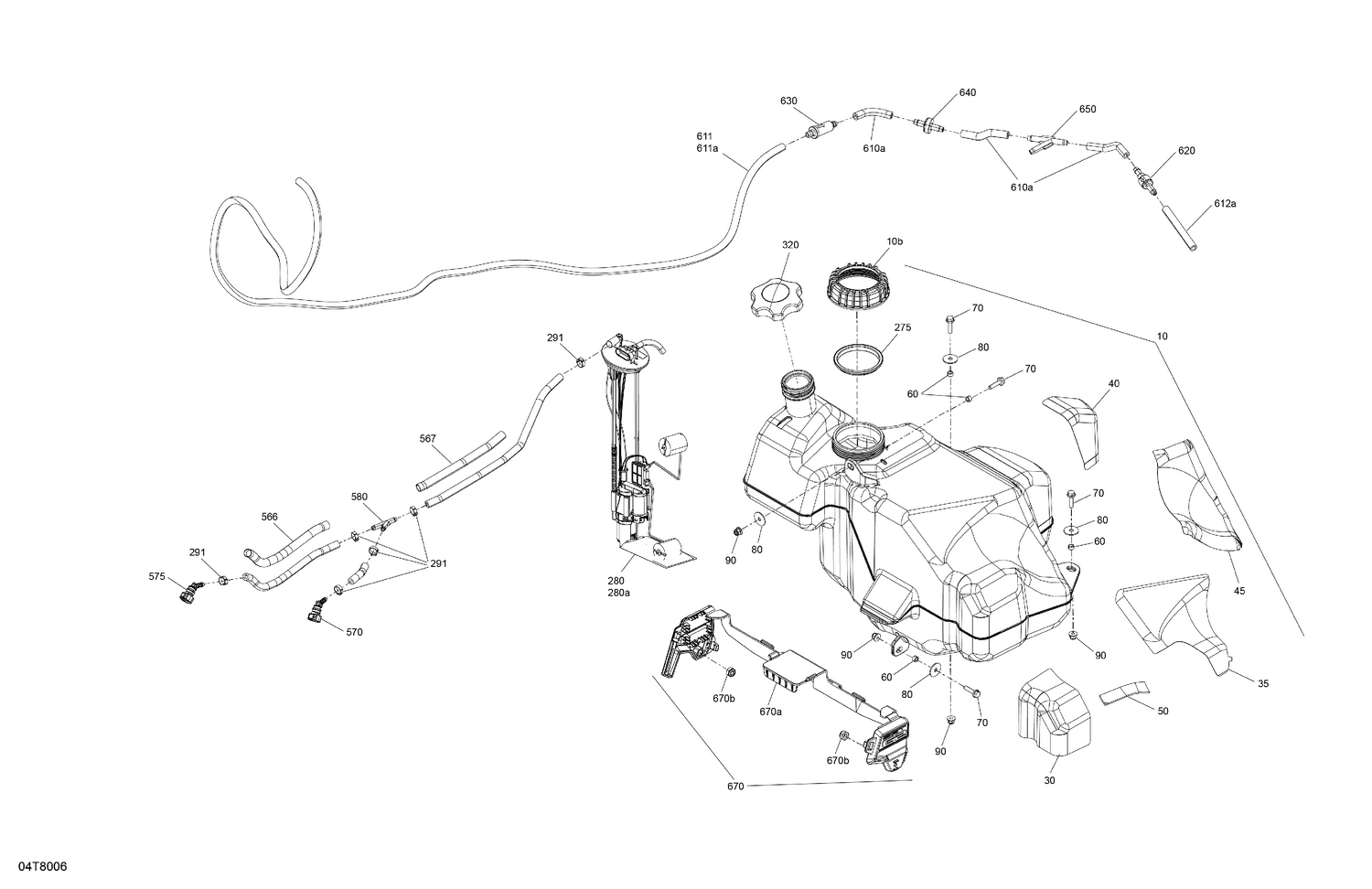

02- Engine - Fuel
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 709000328 | Fuel Pump Module Nut |
| 30 | 709000381 | Heat Reflective Sheet |
| 35 | 709000387 | Heat Reflective Sheet |
| 40 | 709001071 | Heat Reflective Sheet |
| 45 | 709000388 | Heat Reflective Sheet |
| 50 | 293830172 | Rubber Pad |
| 60 | 293900104 | Bushing |
| 70 | 207662544 | Hex. Flange Screw M6 X 25 |
| 80 | 224060251 | Washer |
| 90 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 275 | 709000208 | Seal |
| 280a | 715900677 | Prefilter Fuel Pump Kit 125mm Long |
| 291 | 293650047 | Crimp Clamp, 15.3-706R |
| 320 | 513033025 | Fuel Tank Cap |
| 566 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 567 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 570 | 709000627 | Quick Fitting 45° Ass'y |
| 575 | 709000627 | Quick Fitting 45° Ass'y |
| 580 | 293710136 | Y-Fitting, 5/16'' |
| 610a | 293830193 | Polyurethane Hose |
| 611a | 293830193 | Polyurethane Hose |
| 612a | 293830193 | Polyurethane Hose |
| 620 | 513033469 | Check Valve |
| 630 | 709000330 | Filter |
| 640 | 275500398 | Check Valve |
| 650 | 293710059 | Y-Fitting |
| 670a | 709000359 | Hose Support Ass'y |
