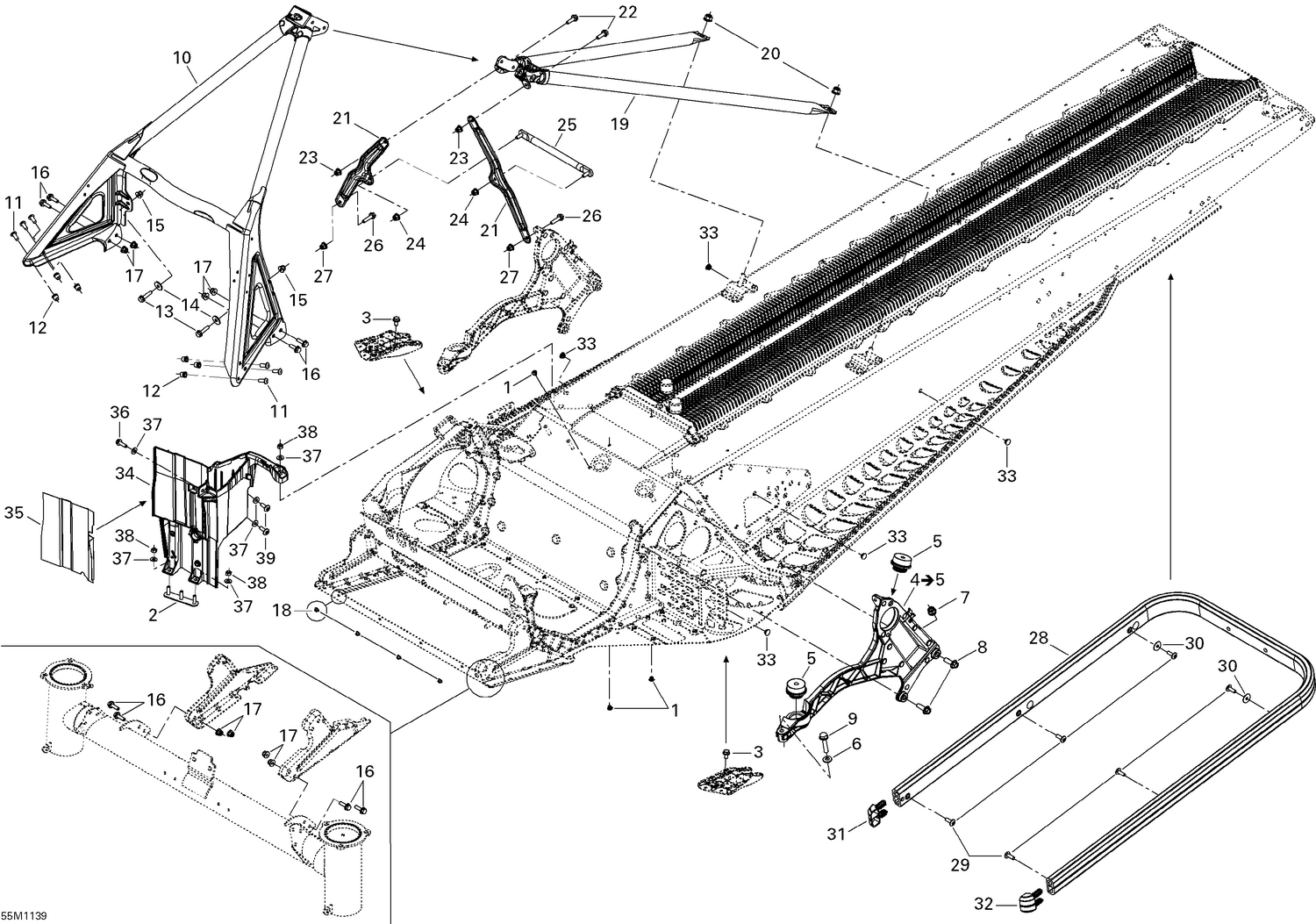

09- Frame and Components
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 390402400 | Pop Rivet 3/16" |
| 2 | 518326550 | Retaining Plate |
| 3 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 5 | 512061516 | Vibration Damper This part replaces 512060295. |
| 6 | 234281474 | Conical Spring Washer M8 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 8 | 250000351 | Hex. Flange Screw M8 X 25, Nylon |
| 9 | 207584034 | Hex. Flange Screw, Scotch Grip |
| 10 | 518326557 | Front Member, S Module |
| 11 | 207662044 | Hex. Flange Screw M6 X 20 |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 207662544 | Hex. Flange Screw M6 X 25 |
| 14 | 224061201 | Flat Washer |
| 15 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 16 | 207662044 | Hex. Flange Screw M6 X 20 |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 390402200 | Pop Rivet 3/16" |
| 19 | 518326559 | Rear Member |
| 20 | 233281414 | Hex. Flange Elastic Nut M8 |
| 21 | 518326848 | Upper Column Support |
| 22 | 207662044 | Hex. Flange Screw M6 X 20 |
| 23 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 24 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 25 | 518326355 | Center Column Support |
| 26 | 207662544 | Hex. Flange Screw M6 X 25 |
| 27 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 28 | 518325579 | Clear Rear Bumper |
| 29 | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 30 | 224061201 | Flat Washer |
| 31 | 520000711 | Full Moon RH Cap |
| 32 | 520000712 | Full Moon LH Cap |
| 33 | 293730041 | Full Moon Dart 8 mm |
| 34 | 518326472 | Battery Support |
| 35 | 514054755 | HEAT SHIELD - Call your local BRP dealership |
| 36 | 210262040 | Hex. Flange Screw M6 X 20 |
| 37 | 250200039 | Flat Washer |
| 38 | 232561414 | Elastic Stop Nut M6 |
