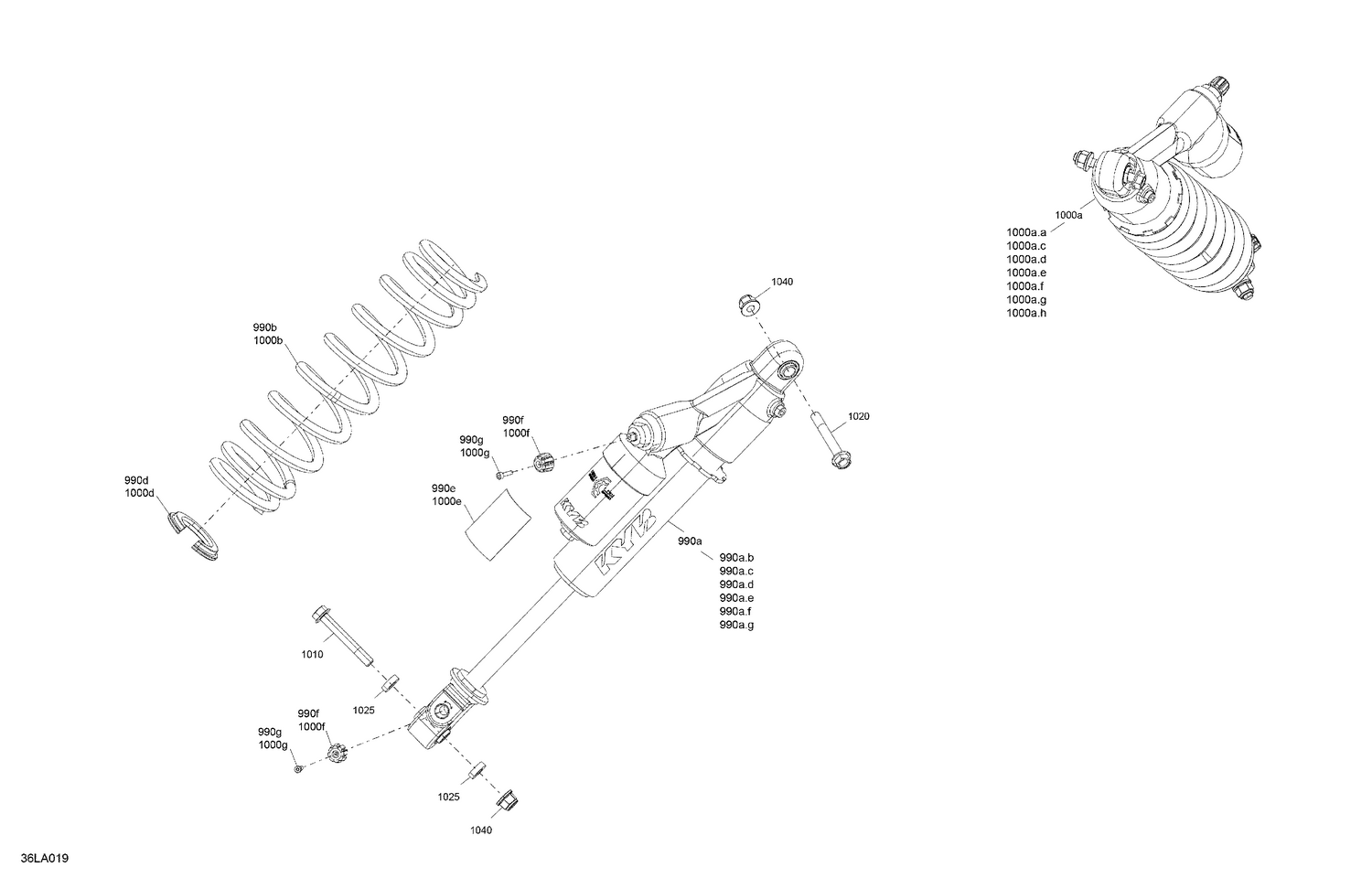

05- Suspension - Front Shocks
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 990b | 505074423 | Black, Spring 280 MM 20 N/MM |
| 990d | 503194270 | Spring Stopper |
| 990e | 516008320 | Shock Adjustment Decal KYB |
| 990f | 505072753 | Adjustment Knob |
| 990g | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1000b | 505074423 | Black, Spring 280 MM 20 N/MM |
| 1000d | 503194270 | Spring Stopper |
| 1000e | 516008320 | Shock Adjustment Decal KYB |
| 1000f | 505072753 | Adjustment Knob |
| 1000g | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1010 | 250000824 | Hexagonal Flange Screw M8 X 58 |
| 1020 | 250000824 | Hexagonal Flange Screw M8 X 58 |
| 1025 | 505073892 | Spacer |
