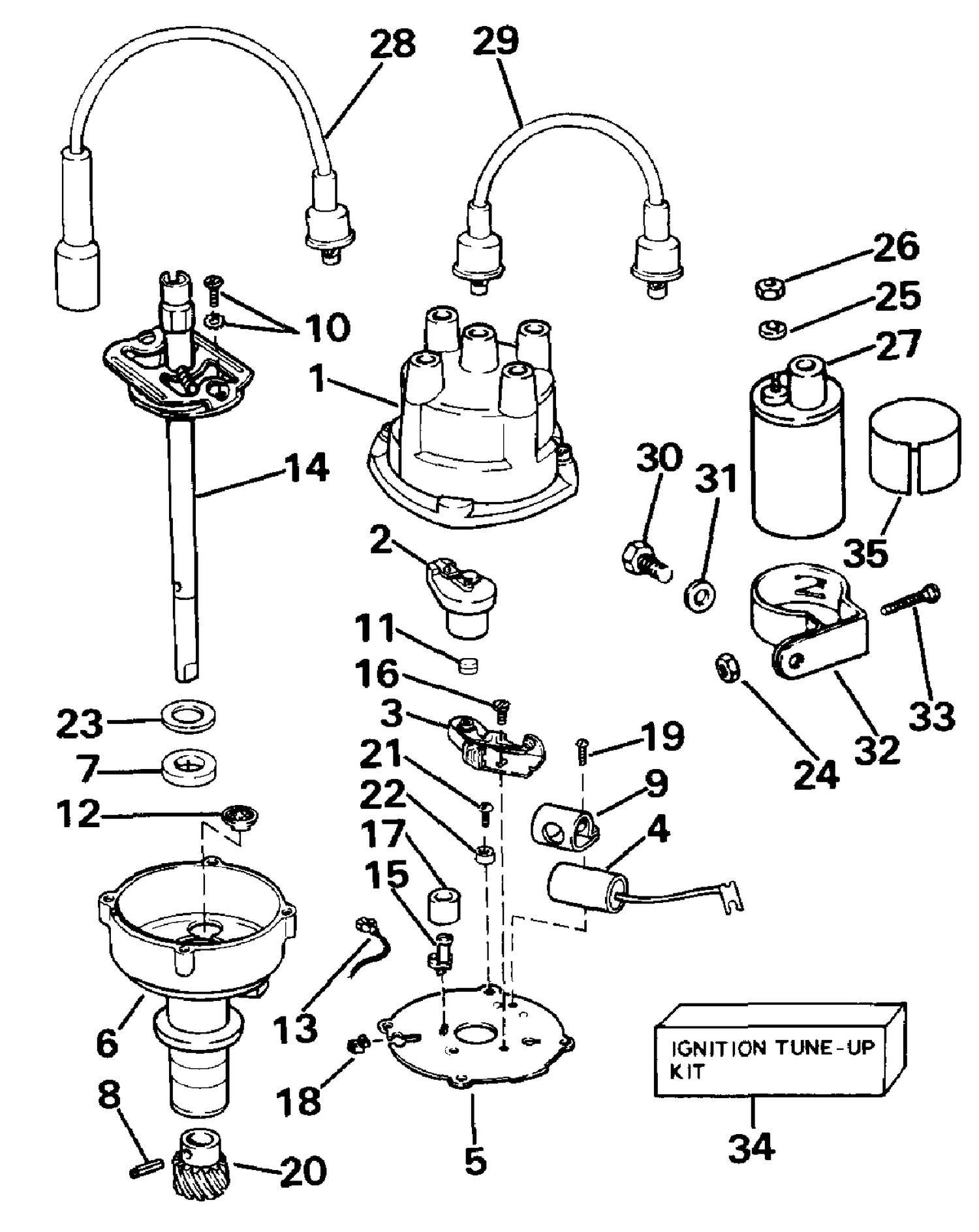

| Ref | Part Number | Description |
|---|
| 1 |
0380541 |
CAP & BUTTON ASSEMBLY |
| 2 |
0384735 |
ROTOR ASSEMBLY |
| 3 |
0380538 |
CONTACT POINTS SET |
| 4 |
0380537 |
CONDENSER ASSEMBLY |
| 5 |
0311705 |
BREAKER PLATE |
| 6 |
0908104 |
HOUSING, Distributor |
| 8 |
3854266 |
PIN, Gear This part replaces 0311702. |
| 9 |
0908107 |
BRACKET, Capacitor |
| 10 |
0311718 |
SCREW & LOCKWASHER, Weight hold down |
| 11 |
0908108 |
WICK, Rotor |
| 12 |
0980155 |
SCREEN ASSEMBLY |
| 13 |
0983860 |
LEAD, Primary |
| 14 |
0983859 |
MAIN SHAFT ASSEMBLY |
| 15 |
0911656 |
RETAINER, Cam lubricator |
| 16 |
0311695 |
SCREW, Contact adjusting |
| 17 |
0908608 |
WICK, Cam lubricator |
| 18 |
0311693 |
GROMMET |
| 19 |
0908609 |
SCREW, Bracket |
| 20 |
0311703 |
GEAR, Distributor dr |
| 21 |
0330133 |
SCREW, Breaker plate |
| 22 |
0908105 |
RUBBER CLIP, Breaker plate |
| 23 |
0908106 |
RUBBER CLIP, Breaker plate |
| 24 |
0308335 |
CLAMP, Coil |
| 27 |
3852217 |
COIL ASSY. Ignition This part replaces 0383444. |
| 28 |
0584361 |
CONNECTOR ASSY., Blue leads |
| 28 |
0979872 |
LEAD , #3 |
| 29 |
0580558 |
LEAD ASSEMBLY, Coil |
| 30 |
0306834 |
BOLT, Throttle lever retainer |
| 31 |
0120177 |
L'WASHER, Alternator to brkt |
| 32 |
3852218 |
BRACKET, Oil cooler This part replaces 0383448. |
| 34 |
0172527 |
IGNITION TUNE UP KIT |
| 0982351 |
0982351 |
DISTRIBUTOR ASSEMBLY |
