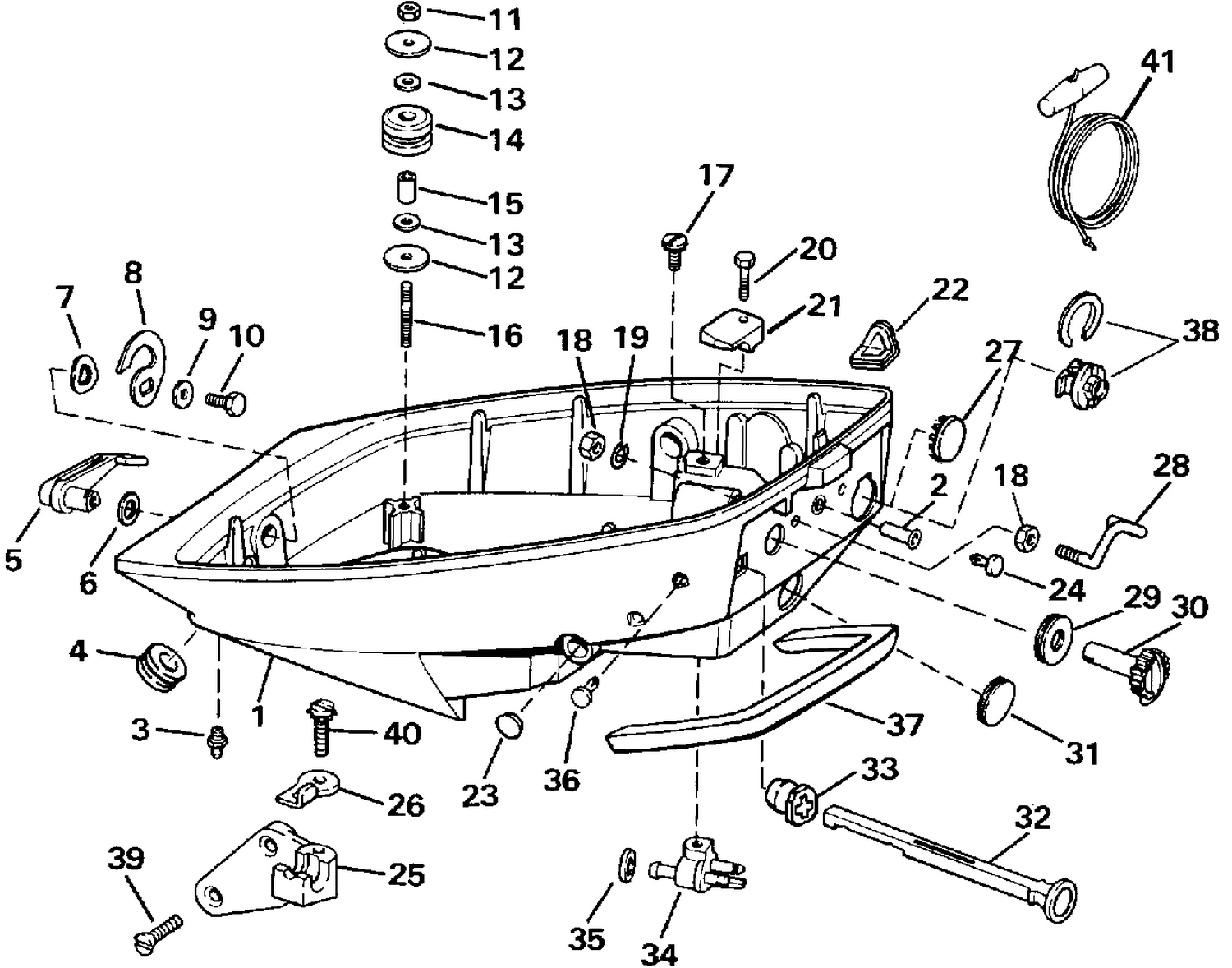

| Ref | Part Number | Description |
|---|
| 1 |
0431873 |
ENGINE COVER, Lower |
| 4 |
0334761 |
GROMMET |
| 8 |
0319064 |
LATCH, Rear engine cover, lower |
| 14 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 15 |
0302406 |
SLEEVE |
| 16 |
0331044 |
STUD, Mount engine cover |
| 17 |
0328731 |
VIS, câble de verrouillage This part replaces 0329265. |
| 21 |
0334093 |
RETAINER, Trunnion |
| 22 |
0331193 |
GROMMET, Cable |
| 23 |
0316337 |
PLUG |
| 24 |
0335306 |
PLUG, Starter rope |
| 27 |
0332606 |
PLUG, Engine cover |
| 28 |
0328305 |
ROPE GUIDE |
| 29 |
0319131 |
GROMMET, Knob |
| 30 |
0319152 |
ADJUSTING KNOB, Slow speed |
| 31 |
0335779 |
GROMMET, Cables |
| 32 |
0319291 |
CHOKE KNOB |
| 33 |
0320731 |
BUSHING, Choke knob |
| 36 |
0334076 |
CAP, Tilt tube |
| 37 |
0327428 |
SEAL, Engine cover to steering bracket |
| 38 |
0435448 |
CONNECTOR, Throttle This part replaces 0334860. |
