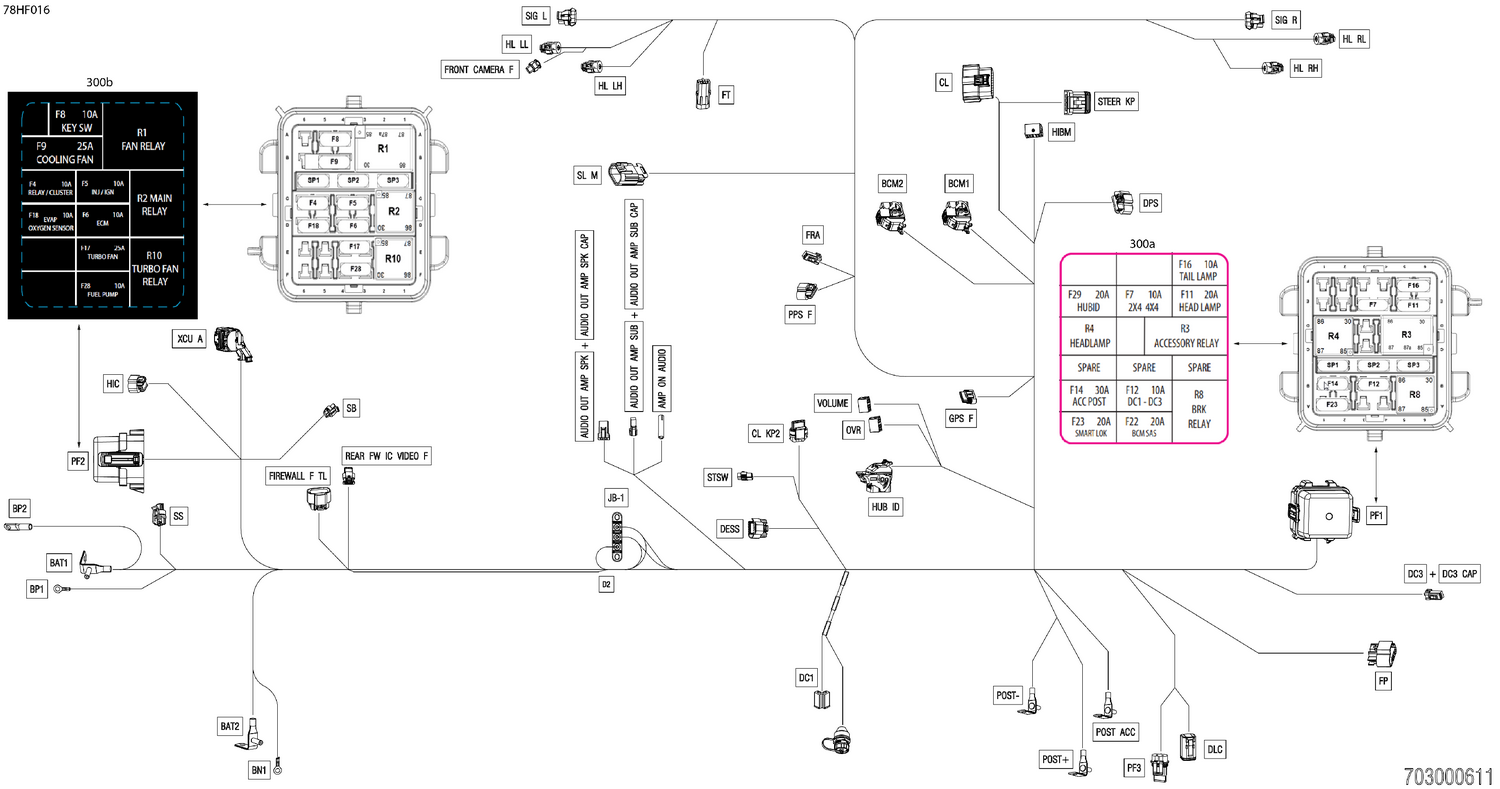

08- Electric - Main Harness - 710010748
Parts (99)
| Ref | Part Number | Description |
|---|---|---|
| AMP | ON | AUDIO 278000770 Insulated Sheath 278000770 |
| AUDIO | OUT | AMP SPK 710007945 Female Connector 8 Cavities 710007945 |
| BN1 | 278001392 | Open Barrel Terminal |
| BP1 | 278000992 | Open Barrel |
| BP1 | 515177246 | Shrink Tubing, 6 mm |
| CL | 278002860 | Sealing Cap |
| CL | 515178018 | Female Terminal |
| CL | 515178349 | Female Terminal 22 AWG |
| CL | 515179227 | Female Molex Connector 20 Cavities |
| D2 | 409012700 | Diode |
| DC1 | 710005373 | Housing |
| DC1 | 710005518 | Terminal |
| DC3 | 515175231 | Female Terminal |
| DC3 | 515175658 | Female Housing, 2 Circuits |
| DESS | 710001163 | Wire Seal |
| DESS | 710001164 | Female Terminal |
| DESS | 710007151 | Female Delphi Connector 5 Cavities |
| DESS | 710007243 | Lock |
| DLC | 710002705 | Lock |
| DLC | 710002706 | Female Housing 6 Circuits |
| DLC | 710005438 | Female Terminal |
| DLC | 710005439 | Female Terminal |
| DPS | 278002186 | Wire Seal |
| DPS | 278002187 | Female Terminal |
| DPS | 710001222 | Lock |
| DPS | 710001873 | Terminal This part replaces 710001765. |
| DPS | 710002075 | Plug |
| DPS | 710003153 | Seal |
| DPS | 710004989 | Female Housing |
| DPS | 710005098 | Lock |
| FIREWALL | F | TL 710001951 Housing 710001951 |
| FP | 278002185 | Male Housing, 4 Circuits |
| FP | 710001222 | Lock |
| FP | 710001869 | Terminal |
| FP | 710001873 | Terminal This part replaces 710001765. |
| FP | 710003153 | Seal |
| FP | 710006214 | Lock |
| FRA | 515175231 | Female Terminal |
| FRA | 515175658 | Female Housing, 2 Circuits |
| FRONT | CAMERA | F 710008501 Connector_TYCO Female 3 Cavities 710008501 |
| FT | 278000217 | Female Housing, 2 Circuits |
| FT | 278000218 | Wire Seal |
| FT | 409004300 | Male Terminal |
| FT | 710000992 | Clip |
| HIBM | 710002000 | Housing |
| HIBM | 710003047 | Terminal |
| HIBM | 710005491 | Female Terminal |
| HIC | 710001222 | Lock |
| HIC | 710001225 | Cap |
| HIC | 710001228 | Terminal |
| HIC | 710001229 | Terminal |
| HIC | 710001233 | Seal |
| HIC | 710001332 | Seal Wire |
| HIC | 710001928 | Housing |
| HIC | 710006181 | Lock |
| HUB | ID | LT 710007617 Plug 710007617 |
| OVR | 710002000 | Housing |
| OVR | 710005491 | Female Terminal |
| PF1 | 278000216 | Wire Seal |
| PF1 | 278000218 | Wire Seal |
| PF1 | 278001065 | Wire Seal |
| PF1 | 278002578 | Female Terminal |
| PF1 | 278003448 | Fuse Base Ass'y |
| PF1 | 278003553 | Fuse Cover |
| PF1 | 293300198 | Seal |
| PF1 | 515177177 | Female Terminal |
| PF1 | 710000048 | Wire Seal |
| PF1 | 710000918 | Female Terminal |
| PF1 | 710010765 | Decal Fuses |
| PF2 | 278000216 | Wire Seal |
| PF2 | 278000218 | Wire Seal |
| PF2 | 278001065 | Wire Seal |
| PF2 | 278002578 | Female Terminal |
| PF2 | 278003448 | Fuse Base Ass'y |
| PF2 | 278003553 | Fuse Cover |
| PF2 | 293300198 | Seal |
| PF2 | 710000048 | Wire Seal |
| PF2 | 710000890 | Female Terminal |
| PF2 | 710000918 | Female Terminal |
| PF2 | 710007297 | Fuses Decal |
| PF3 | 278001325 | Fuse Holder |
| PF3 | 710000113 | Female Terminal |
| REAR | FW | IC VIDEO F 710008501 Connector_TYCO Female 3 Cavities 710008501 |
| SB | 278001482 | Seal |
| SB | 710001134 | Female Terminal |
| SB | 710002043 | Lock |
| SB | 710002177 | Housing |
| SS | 515177192 | Female Housing, 2 Circuits |
| SS | 710001152 | Lock |
| SS | 710001163 | Wire Seal |
| SS | 710001164 | Female Terminal |
| STSW | 409012100 | Female Terminal |
| STSW | 710000402 | Wire Seal |
| VOLUME | 710002000 | Housing |
| VOLUME | 710005491 | Female Terminal |
| XCU | A | LT 515178598 Terminal 515178598 |
| 300 | 710010748 | Main Wiring Harness |
| 300a | 710010765 | Decal Fuses |
| 300b | 710007297 | Fuses Decal |
