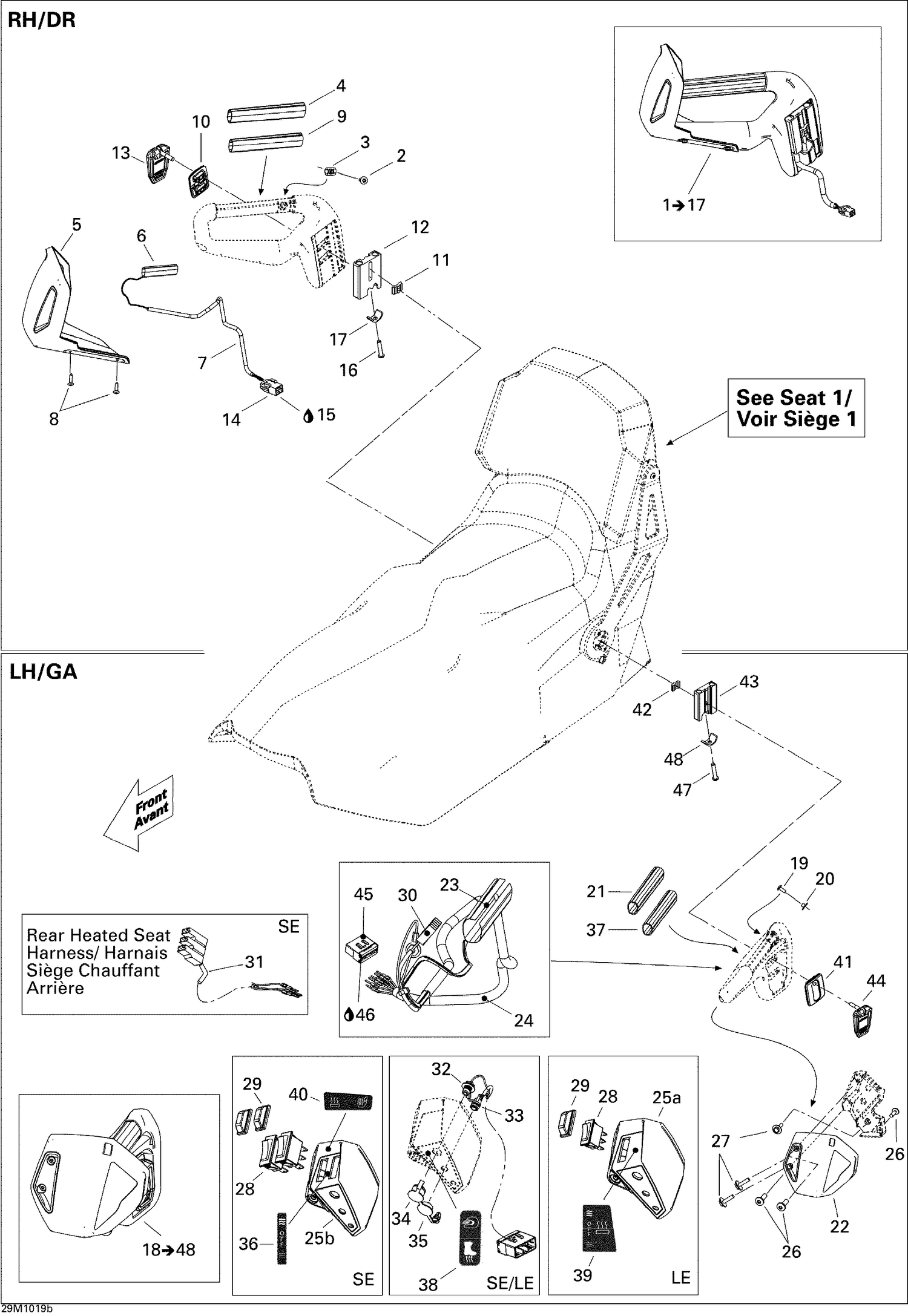

09- Seat 2, SE

09- Seat 2, SE

Parts (40)

RefPart NumberDescription
2 250000721 Torx Truss Screw M6 X 16 This part replaces 250000129.
3 293100003 Nut Welded, M6
4 510004449 Handle Grip
5 510005009 RH Air Deflector
6 515176999 Heated Element This part replaces 515176768.
7 219704426 Was 515175506 Tubing
8 250000725 Screw M4 X 16 This part replaces 250000113.
9 510005814 Reinforcement Handle This part replaces 510005011.
10 510006602 Passenger Handle Trim This part replaces 510004405.
11 510004804 Stopper Block
12 510004798 HANDLE LINK - Call your local BRP dealership
13 510004806 Lever Lock Ass'y
14 515175494 Male Housing, 3 Circuits
15 219704453 Was 293550004 Dielectric Grease, 150 g
16 250000220 SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership
17 510004565 HANDLE CLAMP - Call your local BRP dealership
19 250000721 Torx Truss Screw M6 X 16 This part replaces 250000129.
20 293100003 Nut Welded, M6
21 510004449 Handle Grip
22 510005010 LH Air Deflector
23 515176999 Heated Element This part replaces 515176768.
24 219704426 Was 515175506 Tubing
25a XXX Not Available As Spare Parts
26 250000720 Torx Screw K50 X 16 This part replaces 250000146.
27 250000725 Screw M4 X 16 This part replaces 250000113.
30 515176697 Handle Harness
32 515176698 Visor Connector Harness
33 515177018 WIRING HARNESS_HEATED SOLE - Call your local BRP dealership This part replaces 515176654.
34 572103300 Cap
35 510004950 Cap
37 510005814 Reinforcement Handle This part replaces 510005011.
38 516003612 VISOR AND LINER DECAL - Call your local BRP dealership
39 XXX Not Available As Spare Parts
41 510006602 Passenger Handle Trim This part replaces 510004405.
42 510004804 Stopper Block
43 510004798 HANDLE LINK - Call your local BRP dealership
44 510004806 Lever Lock Ass'y
45 515176033 Male Connector
46 219704453 Was 293550004 Dielectric Grease, 150 g
47 250000220 SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership
