Home / BRP / STERN DRIVE / 1989 / 7.50 / 460AMLMED 1989 / CRANKCASE

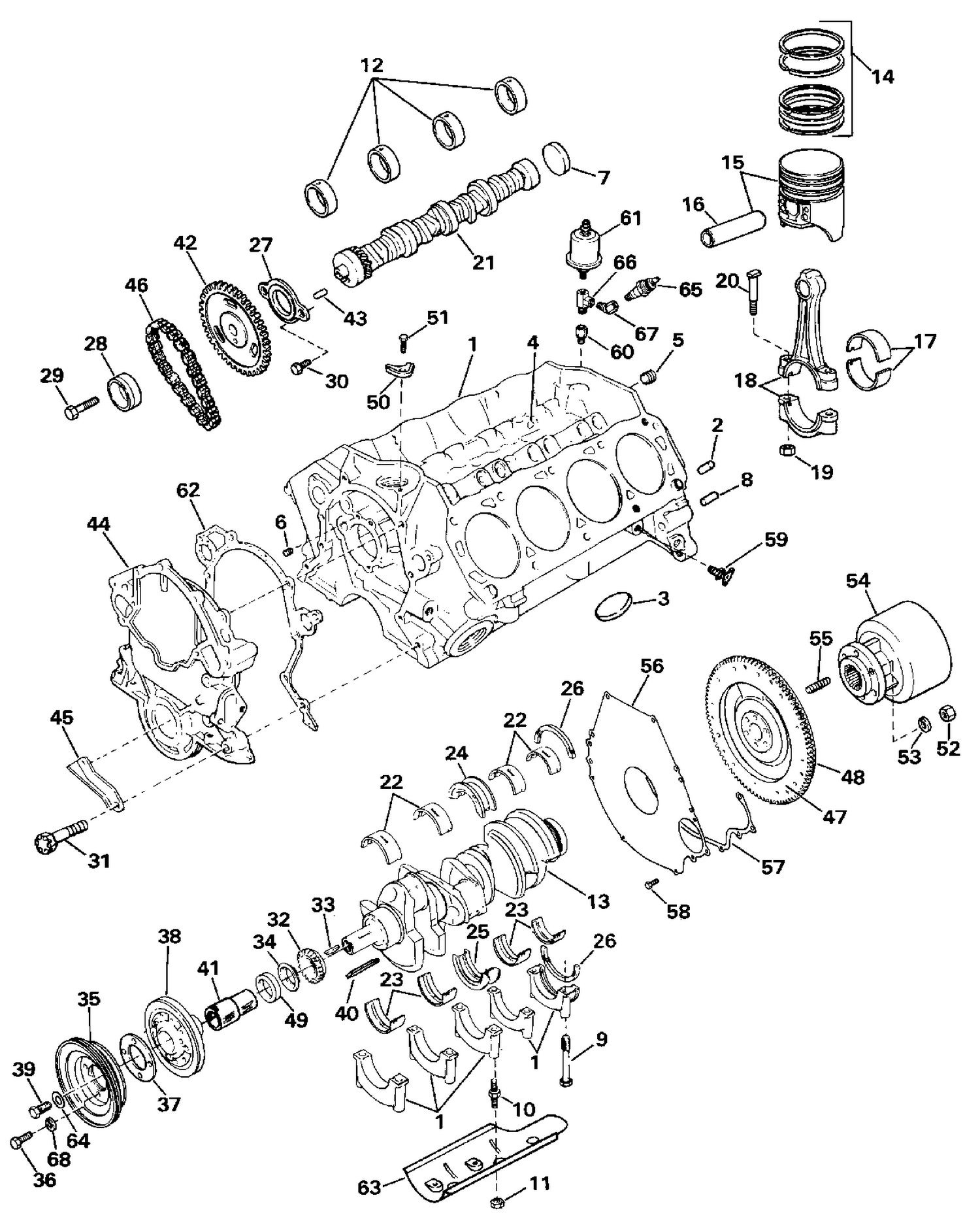

CRANKCASE

CRANKCASE

Parts (99)

RefPart NumberDescription
1 0984882 PARTIAL ENGINE
2 0914085 DOWEL, Cylinder head
3 3852650 PLUG, Core hole This part replaces 0912932.
4 3853108 PLUG, Oil gallery This part replaces 0914249.
5 0914239 PLUG - 3/8 NPT
6 0914086 PLUG, Oil gallery
7 0913180 PLUG, Rear, cam, standard
7 0914087 PLUG, Rear, cam, .60" O.S.
8 3853076 DOWEL, Adapter to block This part replaces 0914206.
9 0914118 BOLT, Main cap
10 0914119 STUD, Main cap
11 0914120 NUT, Main cap
12 0913178 BRG., Camshaft, standard
12 0914096 BRG., Camshaft, .015" U.S.
13 0985317 CRANKSHAFT
14 0985318 RING SET, Standard
15 0913188 PISTON, Standard
16 0913181 PIN, Piston, standard
16 0985122 PIN, Piston, .001" O.S.
17 0913186 BRG., Rod, standard, blue
17 0913187 BRG., Rod, standard red
17 0914091 BRG., Rod, .002" U.S.
17 0914092 BRG., Rod, .010" U.S.
17 0914093 BRG., Rod, .020" U.S.
17 0914094 BRG., Rod, .030" U.S.
17 0914095 BRG., Rod, .040" U.S.
18 0913189 CONNECTING ROD
19 3852675 NUT, Connecting rod This part replaces 0913185.
20 3852674 BOLT, Connecting rod This part replaces 0913184.
21 0913179 CAMSHAFT
22 0913173 BRG., Main, standard, upper
22 0914098 BRG., Main, .001" U.S., upper
22 0914099 BRG., Main, .002" U.S., upper
22 0914100 BRG., Main, .010" U.S., upper
22 0914101 BRG., Main, .020" U.S., upper
22 0914102 BRG., Main, .030" U.S., upper
23 0913172 BRG., Main std., lower
23 0914103 BRG., Main, .001" U.S., lower
23 0914104 BRG., Main, .002" U.S., lower
23 0914105 BRG., Main, .010" U.S., lower
23 0914106 BRG., Main, .020" U.S., lower
23 0914107 BRG., Main, .030" U.S., lower
24 0913171 BRG., Main, center, std., upper
24 0914108 BRG., Main, center, .001" U.S., upper
24 0914109 BRG., Main, center, .002" U.S., upper
24 0914110 BRG., Main, center, .010" U.S., upper
24 0914111 BRG., Main, center, .020" U.S., upper
24 0914112 BRG., Main, center, .030" U.S., upper
25 0913170 BRG., Main, center, std., lower
25 0914113 BRG., Main, center, .001" U.S., Lower
25 0914115 BRG., Main, center, .010" U.S., Lower
25 0914116 BRG., Main, center, .020" U.S., Lower
25 0914117 BRG., Main, center, .030" U.S., Lower
26 0984885 OIL SEAL, Rear
27 0913177 PLATE, Camshaft, thrust
28 0913175 ECCENTRIC, Fuel pump, inner
28 3852673 ECCENTRIC, Fuel pump, outer This part replaces 0913176.
29 0913174 BOLT, Eccentric
30 0913169 BOLT, Thrust plate
31 0914088 BOLT, Cover to block
32 0913015 SPROCKET, Crankshaft
32 0914795 SPROCKET, Crankshaft
33 0913016 KEY, sprocket
34 0913012 SLINGER, Oil
35 0912402 PULLEY, Crankshaft
36 0306539 BOLT, Distributor
37 0912435 SPACER, Pulley
38 0913014 DAMPER, Crankshaft
39 0914097 BOLT, Damper
40 0913013 KEY, Damper
41 0914131 SPACER, Damper
42 0912767 SPROCKET, Camshaft
42 0914796 SPROCKET, Camshaft
43 0913168 DOWEL PIN
44 0985319 COVER, Front
45 0913192 POINTER, Timing
46 0984883 CHAIN, Timing
46 0986741 CHAIN, Timing
47 0986305 FLYWHEEL
48 0913182 RING GEAR, Flywheel
49 3853827 OIL SEAL, Front cover This part replaces 0984884.
50 3853078 CLAMP, Distributor This part replaces 0914208.
51 3853077 SCREW & WASHER, Clamp This part replaces 0914207.
52 3853273 LOCKNUT, Coupler This part replaces 0912383.
53 0304671 LOCKWASHER, Coupler to flywheel
54 0986232 COUPLER, Flywheel This part replaces 0984537.
55 0911927 STUD, Coupling
56 0913943 COVER, Flywheel housing This part replaces 0912412.
57 0913944 GASKET, Flywheel housing This part replaces 0912425.
58 3852421 SCREW, Baffle This part replaces 0907768.
59 0379957 PETCHOCK ASSY, Water drain
60 0912414 ADAPTER, Oil pressure switch
61 3853800 OIL PRESSURE SENDER This part replaces 0982650.
62 0912765 GASKET, Front cover
63 0914122 BAFFLE, Oil pan
64 3853075 WASHER, Damper This part replaces 0914205.
65 0984897 SWITCH, Engine oil
66 3852610 TEE, Oil pressures This part replaces 0912751.
67 3852503 ELBOW, Oil pressure switch This part replaces 0910357.
