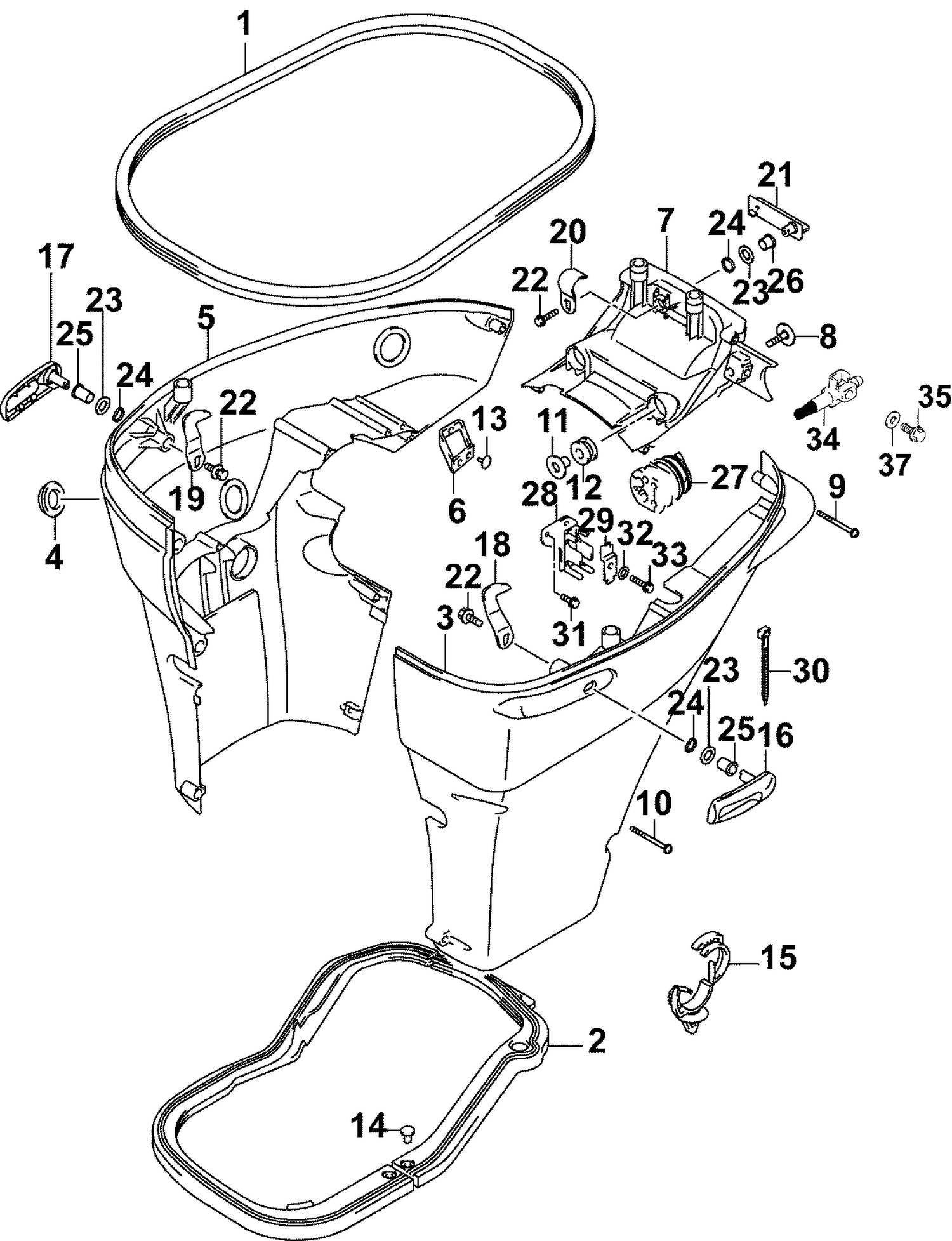

| Ref | Part Number | Description |
|---|
| 1 |
5033857 |
RUBBER, SIDE COVER |
| 2 |
5034642 |
SEAL, SIDE COVER - LOWER |
| 3 |
5033578 |
COVER, SIDE STBD |
| 4 |
5032128 |
PLUG, SIDE COVER |
| 5 |
5033579 |
COVER, SIDE PORT |
| 6 |
5033869 |
HOLDER, SIDE COVER |
| 7 |
5036047 |
PANEL, FRONT |
| 8 |
5030402 |
BOLT (8X40mm) |
| 9 |
5033589 |
SCREW (6X35) |
| 10 |
5033590 |
SCREW (6X55) |
| 11 |
5030473 |
WASHER |
| 12 |
5030558 |
CUSHION |
| 13 |
5033619 |
CUSHION |
| 14 |
5031906 |
CLIP |
| 15 |
5031279 |
CLAMP, HARNESS |
| 16 |
5037577 |
Lever This part replaces 5033575. |
| 17 |
5037577 |
Lever This part replaces 5033576. |
| 18 |
5033863 |
HOOK, ENGINE COVER RR STBD |
| 19 |
5033864 |
HOOK, ENGINE COVER RR PORT |
| 20 |
5033865 |
HOOK, ENGINE COVER FRONT |
| 21 |
5033577 |
LEVER, HOOK FRONT |
| 22 |
5031821 |
BOULON (6 x 12 mm) |
| 23 |
5031833 |
WASHER (13.2X25X1.0) |
| 24 |
5031858 |
RONDELLE, ondulée |
| 25 |
5033518 |
BUSHING - REAR |
| 26 |
5036048 |
BUSHING - FRONT |
| 27 |
5035965 |
GROMMET, CONTROL CABLE |
| 28 |
5033581 |
Holder |
| 29 |
5033582 |
Stopper |
| 30 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 5030347. |
| 32 |
5034131 |
BOLT |
| 33 |
5034142 |
RONDELLE (6,5 x 20 x 2,0 mm) |
| 34 |
5032150 |
CONNECTOR, Fuel |
