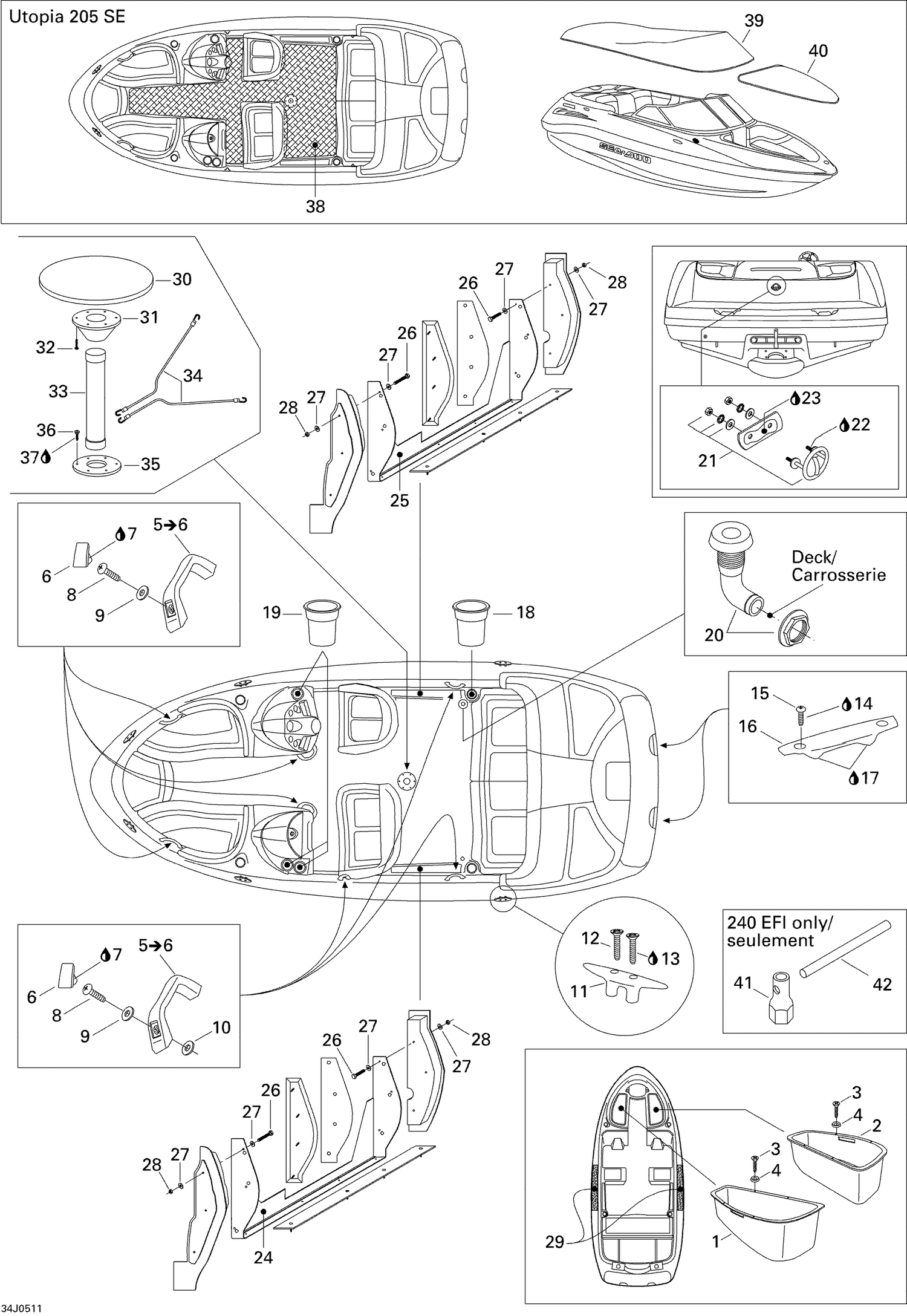

| Ref | Part Number | Description |
|---|
| 1 |
204071773 |
Storage Tray, Port Side |
| 2 |
204071774 |
Storage Tray, Starboard |
| 3 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 4 |
204100057 |
FINITION WASHER - Call your local BRP dealership |
| 6 |
204071195 |
Snap Cap |
| 8 |
205963060 |
SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership |
| 9 |
234061600 |
Stainless Flat Washer M6 |
| 10 |
234062600 |
Flat Washer M6, Stainless |
| 11 |
204070592 |
CLEAT - Call your local BRP dealership |
| 12 |
204100144 |
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership |
| 13 |
293800060 |
Loctite 243, 10 ml |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 16 |
204070194 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 17 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 18 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 19 |
204072216 |
HOLDER CUP, BLACK - Call your local BRP dealership |
| 20 |
204071166 |
DRAIN FITTING 90 - Call your local BRP dealership |
| 21 |
204070206 |
Ski Tow Hook |
| 22 |
293800005 |
Loctite 271, 10 ml |
| 23 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 24 |
204071521 |
Storage Latéral Carpet |
| 25 |
204071522 |
Storage Latéral Carpet |
| 26 |
207067060 |
Hex. Screw M6 X 70 |
| 27 |
234062600 |
Flat Washer M6, Stainless |
| 28 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 29 |
204071534 |
Deck/Storage Carpet |
| 30 |
204070632 |
Cockpit Table |
| 31 |
204071315 |
TABLE MOUNT - Call your local BRP dealership |
| 32 |
209951960 |
TAPPING SCREW M5 X 19 - Call your local BRP dealership |
| 33 |
204070634 |
TABLE POST, LARGE - Call your local BRP dealership |
| 34 |
204070905 |
ICE CHEST STRAP - Call your local BRP dealership |
| 35 |
204071209 |
TABLE BASE - Call your local BRP dealership |
| 36 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 37 |
296000309 |
Silicone Sealant 51388, 300 ml |
