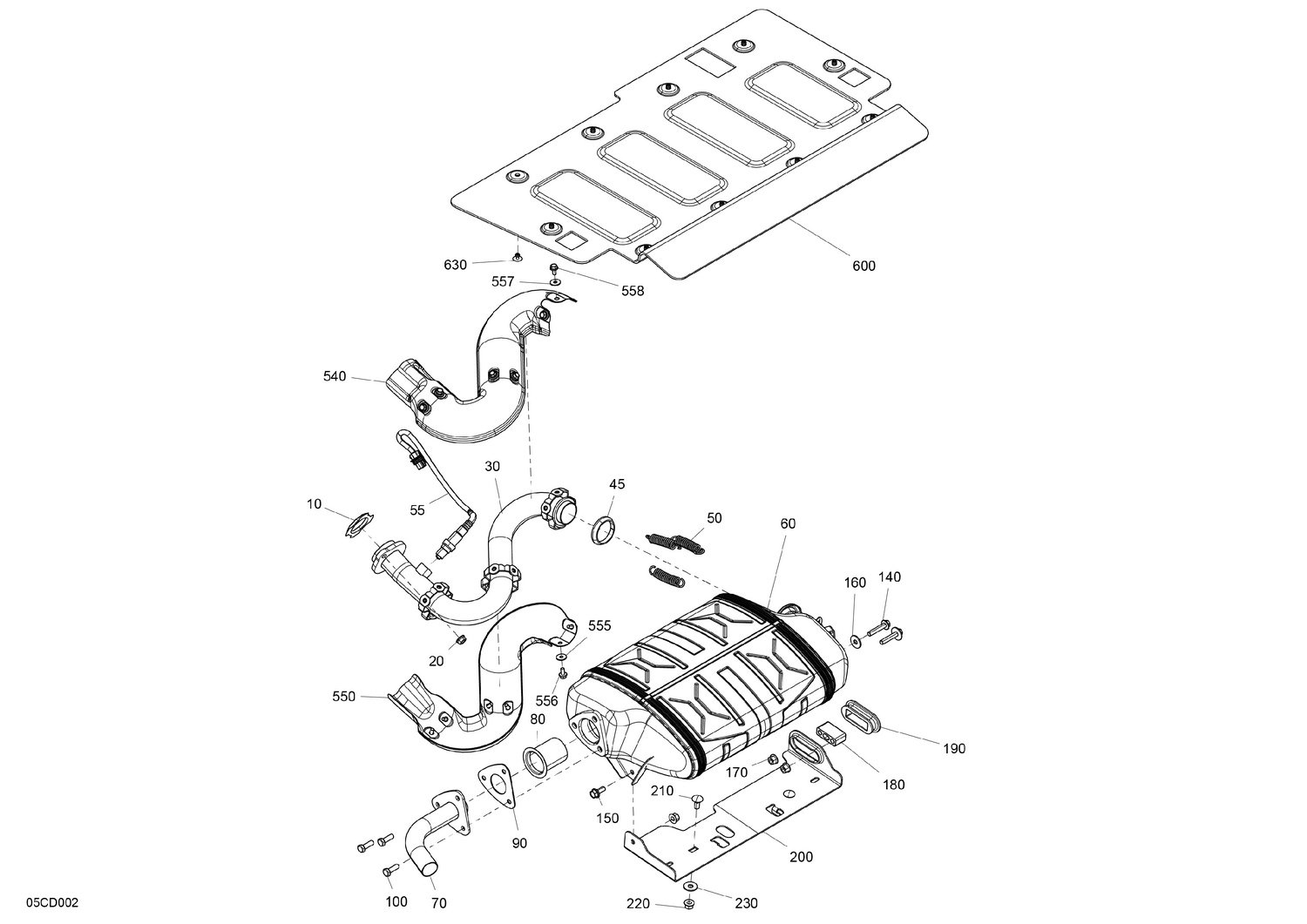

02- Engine - Exhaust
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707602697 | Exhaust Gasket |
| 20 | 233081436 | Hex. Flange Nut |
| 30 | 707603670 | Exhaust Pipe Ass'y |
| 45 | 707603439 | Exhaust Gasket |
| 50 | 707601834 | Spring |
| 55 | 707600872 | Oxygen Sensor |
| 60 | 707603075 | Exhaust Muffle Ass'y |
| 70 | 707603094 | Tailpipe |
| 80 | 707601803 | Spark Arrester |
| 90 | 707602731 | Gasket |
| 100 | 207182546 | Hex. Screw Cap DIN.933 |
| 140 | 207684044 | Hex. Flange Screw M8 X 40 |
| 150 | 207682044 | Hex. Flange Screw M8 X 20 |
| 160 | 234082410 | Flat Washer 8 mm |
| 170 | 233081436 | Hex. Flange Nut |
| 180 | 707603214 | Muffler Stopper |
| 190 | 707603330 | Rubber Bumper |
| 200 | 707603201 | Exhaust Support |
| 210 | 207782044 | Carriage Bolt, M8 X 20 |
| 220 | 233081436 | Hex. Flange Nut |
| 230 | 234082410 | Flat Washer 8 mm |
| 540 | 707603060 | Front Upper Heat Shield |
| 550 | 707603061 | Front Lower Heat Shield |
| 555 | 234062410 | Flat Washer 6 mm |
| 556 | 207661244 | Hex. Flange Screw M6 X 12 |
| 557 | 234062410 | Flat Washer 6 mm |
| 558 | 207661244 | Hex. Flange Screw M6 X 12 |
| 600 | 707603271 | Upper Heat Shield |
