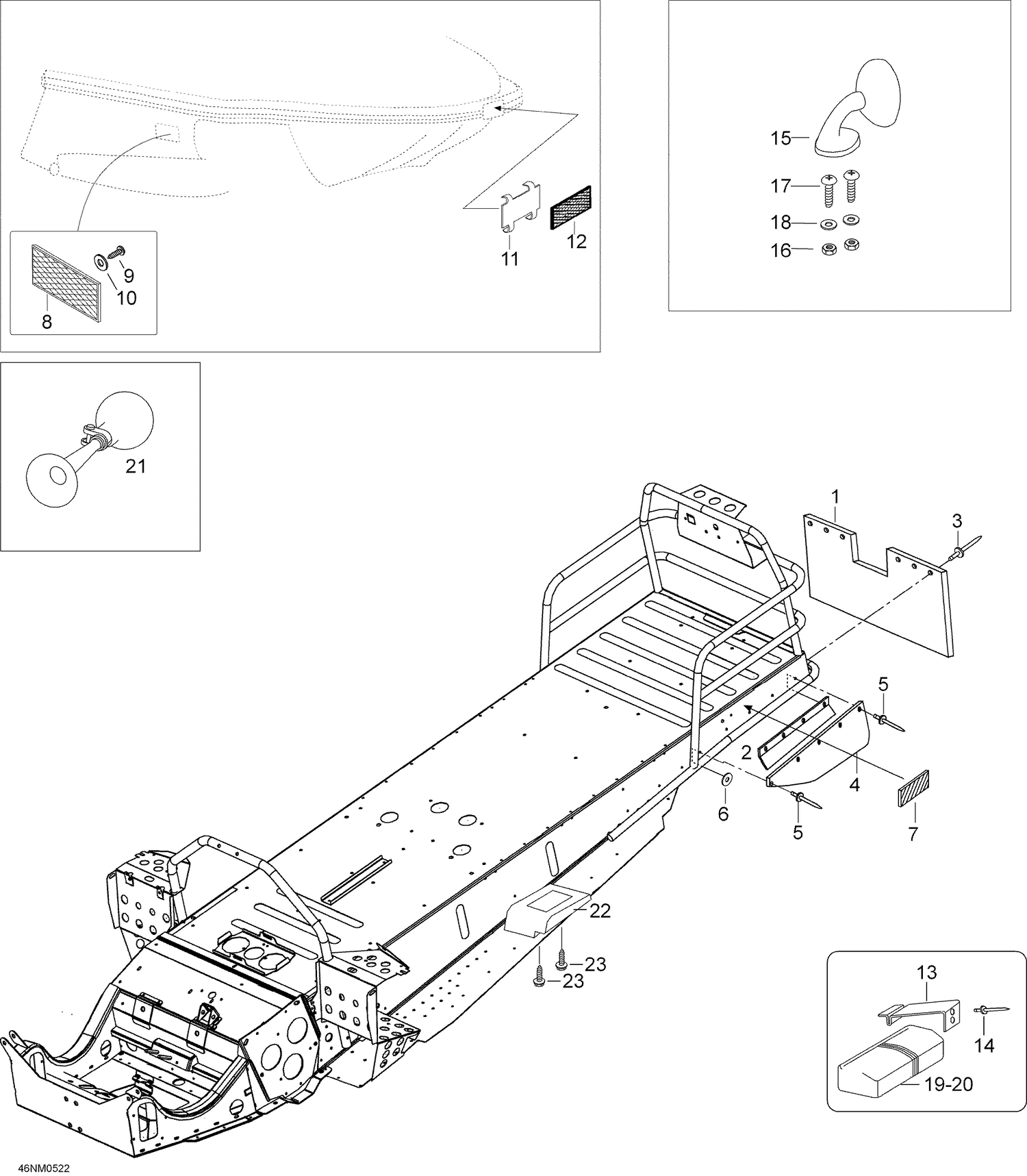

| Ref | Part Number | Description |
|---|
| 1 |
535437 |
Roiskeläppä |
| 2 |
5340532 |
Side Snow Guard Guide - Call your local BRP dealership |
| 3 |
36036 |
Vetoniitti |
| 4 |
5142828 |
Stöd, sida stänkskydd, höger |
| 5 |
36097 |
Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
| 6 |
20037 |
Korilevy A4,3 |
| 7 |
21121 |
REFLECTOR (YELLOW) - Call your local BRP dealership |
| 8 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 9 |
40070 |
Slot sc. M5 x 10DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 10 |
20018 |
Serrated lock washer A5,3 |
| 11 |
5440839 |
Support |
| 12 |
21060 |
Heijastin Teippisarjat |
| 13 |
5344443 |
Toolkit support |
| 14 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 15 |
414971910 |
RH MIRROR - Call your local BRP dealership |
| 15 |
414972010 |
LH MIRROR - Call your local BRP dealership |
| 16 |
33008 |
Locknut M4 DIN985 m8 Zne(1=10pcs) |
| 17 |
40167 |
SLOT SCREW M4 x 16DIN 966m4.8 A4(1=10pcs - Call your local BRP dealership |
| 18 |
20001 |
Washer A4,3 DIN125 -St m Zne(1=10pcs) - Call your local BRP dealership |
| 20 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
| 21 |
549011291 |
Horn This part replaces 21003. |
| 22 |
414975300 |
Rear Footrest R.H. |
| 22 |
414975400 |
Rear Footrest L.H. |
