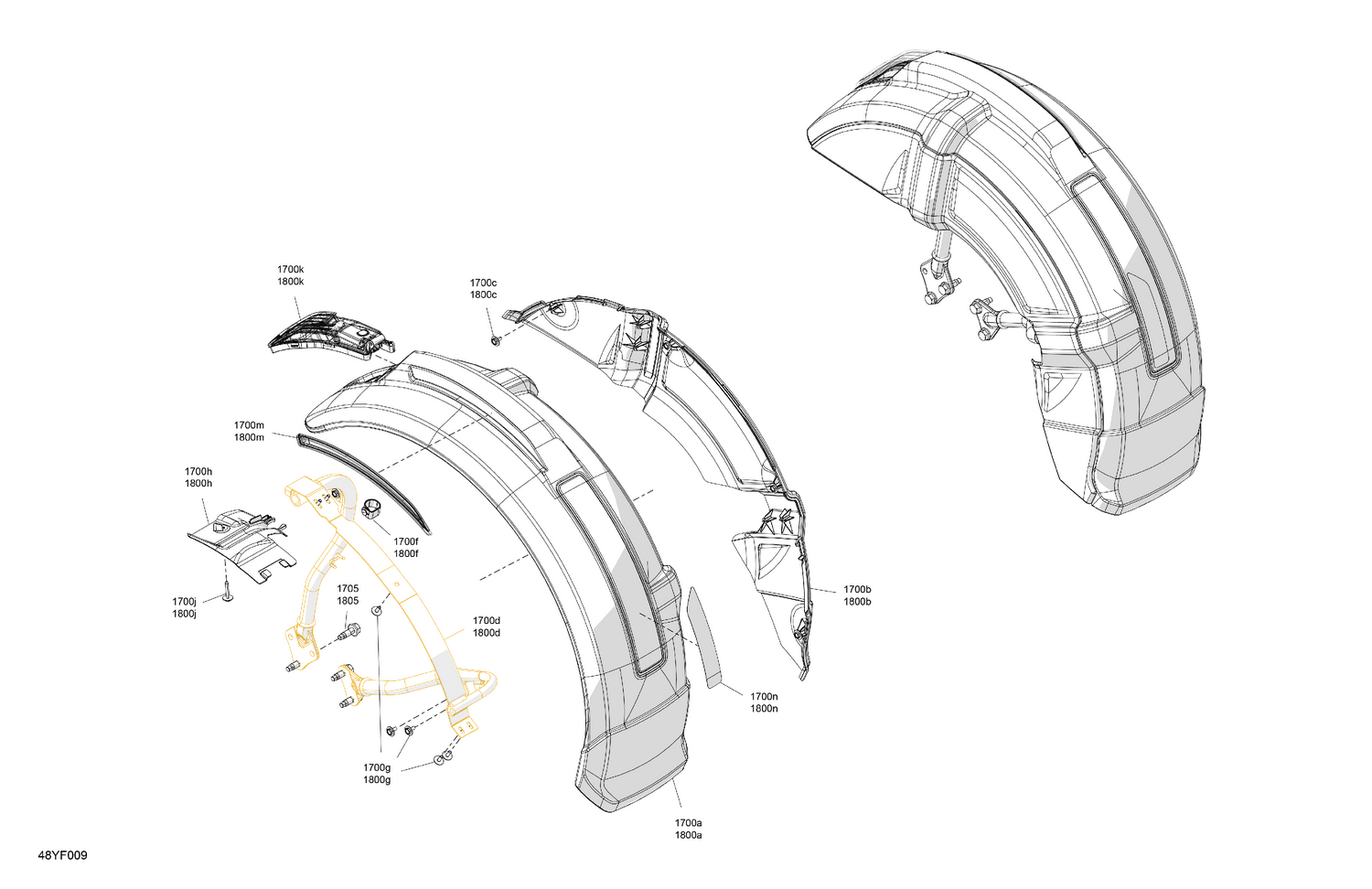

07- Body - Fender Kit
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1700a | 705017633 | LH Front Fender |
| 1700b | 705017634 | LH Int Fender |
| 1700c | 250000805 | Plastite Screw M4 X 10 |
| 1700f | 710011794 | Retaining Strap |
| 1700g | 250000805 | Plastite Screw M4 X 10 |
| 1700h | 705017823 | LH Connector Guard |
| 1700j | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 1700k | 710007008 | LH Front Position Light |
| 1700m | 705012404 | Yellow, LH Reflector |
| 1700n | 705019442 | Red, LH Reflective Strip |
| 1705 | 250000773 | Hexagonal Screw M8X25 Dog Point |
| 1800a | 705017635 | Front Fender |
| 1800b | 705017636 | RH Int Fender |
| 1800c | 250000805 | Plastite Screw M4 X 10 |
| 1800f | 710011794 | Retaining Strap |
| 1800g | 250000805 | Plastite Screw M4 X 10 |
| 1800h | 705017824 | RH Connector Guard |
| 1800j | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 1800k | 710007009 | RH Front Position Light |
| 1800m | 705012405 | Yellow, RH Reflector |
| 1800n | 705019443 | Red, RH Reflective Strip |
