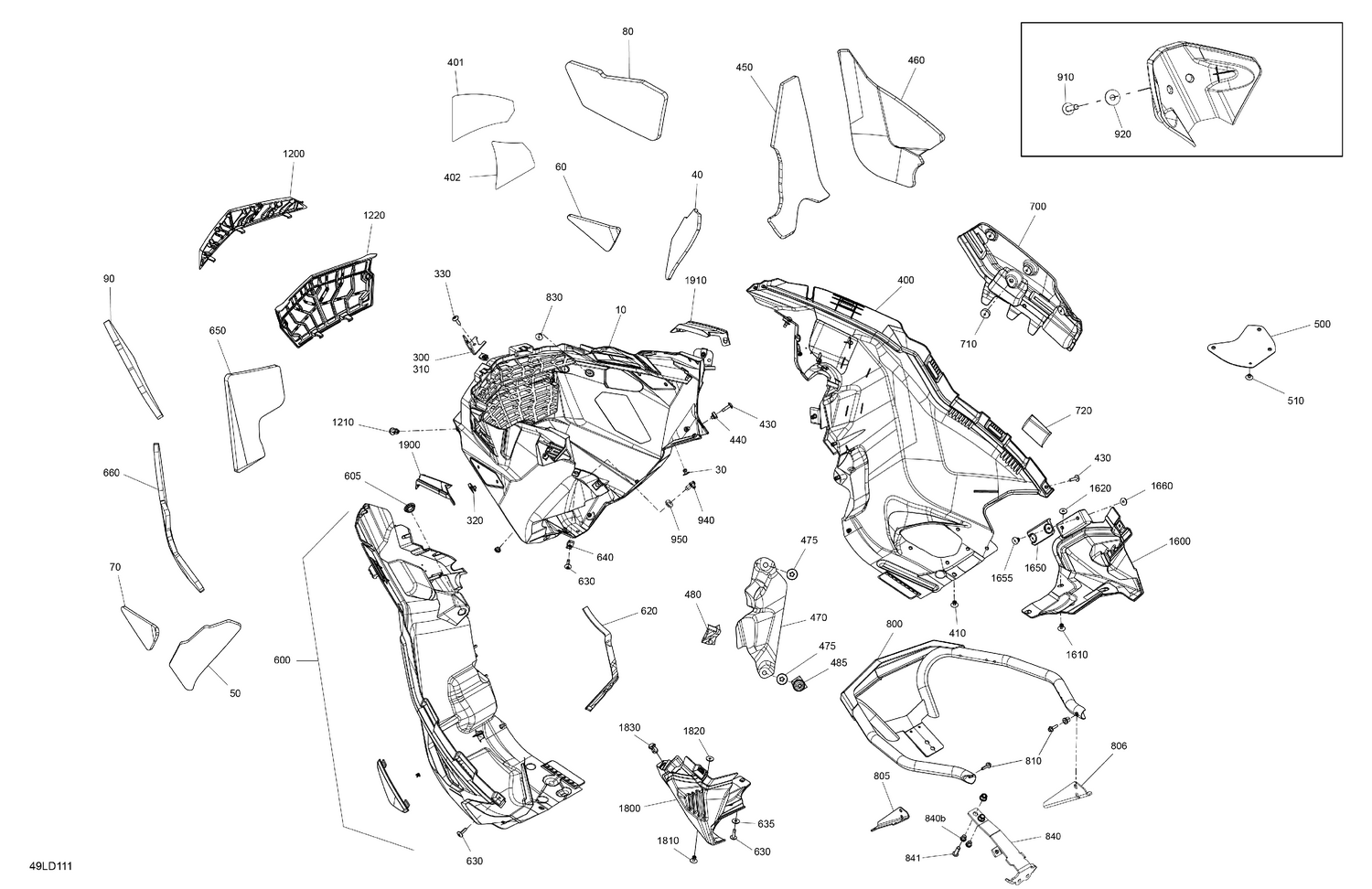

| Ref | Part Number | Description |
|---|
| 10 |
502008653 |
Front Bottom Pan |
| 30 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 40 |
502007788 |
Foam |
| 50 |
502007789 |
Foam |
| 60 |
502007545 |
RH Bottom Pan Central Foam |
| 70 |
502007546 |
LH Bottom Pan Central Foam |
| 80 |
502007800 |
Foam |
| 90 |
502007799 |
Foam |
| 300 |
502007723 |
LH Screw Plate |
| 310 |
502007724 |
RH Screw Plate |
| 320 |
250000958 |
Panel Nut M5 X 0.8 |
| 330 |
250000586 |
Torx Truss M5 X 20 |
| 400 |
502007774 |
RH Bottom Pan |
| 401 |
502008585 |
Heat Shield |
| 402 |
502008586 |
Heat Shield |
| 410 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 430 |
250000586 |
Torx Truss M5 X 20 |
| 440 |
250000958 |
Panel Nut M5 X 0.8 |
| 450 |
502008399 |
RH Upper Bottom Pan Foam |
| 460 |
502008400 |
RH Lower Bottom Pan Foam |
| 470 |
502007902 |
Heat Shield |
| 475 |
508000853 |
Push Nut |
| 480 |
44110 |
Aluminum Foil |
| 485 |
44110 |
Aluminum Foil |
| 500 |
502007901 |
Plate |
| 510 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 600 |
502007773 |
LH Bottom Pan Ass'y |
| 605 |
518330527 |
Bottom Pan Plug |
| 620 |
219704476 |
Gasket, Neoprene 2000Mm Long |
| 630 |
250000586 |
Torx Truss M5 X 20 |
| 635 |
250200025 |
Washer M5 |
| 640 |
250000958 |
Panel Nut M5 X 0.8 |
| 650 |
502008401 |
LH Upper Bottom Pan Foam |
| 660 |
502008402 |
LH Lower Bottom Pan Foam |
| 700 |
502008199 |
Heat Shield |
| 710 |
502008149 |
Stopper |
| 720 |
44110 |
Aluminum Foil |
| 800 |
502008389 |
Bumper |
| 805 |
502007915 |
LH Bumper Fastener |
| 806 |
502007916 |
RH Bumper Fastener HD |
| 810 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 840b |
605636003 |
Clinch Nut M6 Hexsert |
| 841 |
250000757 |
Screw-Torx Button Head M8 X 25 S.Gr |
| 910 |
250000758 |
Torx Screw M6 X 25 |
| 920 |
234062670 |
Flat Washer, Stainless |
| 940 |
414580700 |
Male Connector |
| 950 |
414036300 |
Grommet |
| 1200 |
502007978 |
Lower Pre Filter |
| 1210 |
293150230 |
Tuflok Plastic Rivet |
| 1220 |
502007977 |
Upper Pre Filter |
| 1600 |
502007859 |
RH Bottom Pan Corner 16 |
| 1610 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 1620 |
517124300 |
Washer |
| 1650 |
502007757 |
Stopper |
| 1655 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 1660 |
517124300 |
Washer |
| 1800 |
502008031 |
LH Bottom Pan Corner 16 |
| 1810 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 1820 |
517124300 |
Washer |
| 1830 |
293150230 |
Tuflok Plastic Rivet |
| 1900 |
502008035 |
LH Bottom Pan Deflector |
