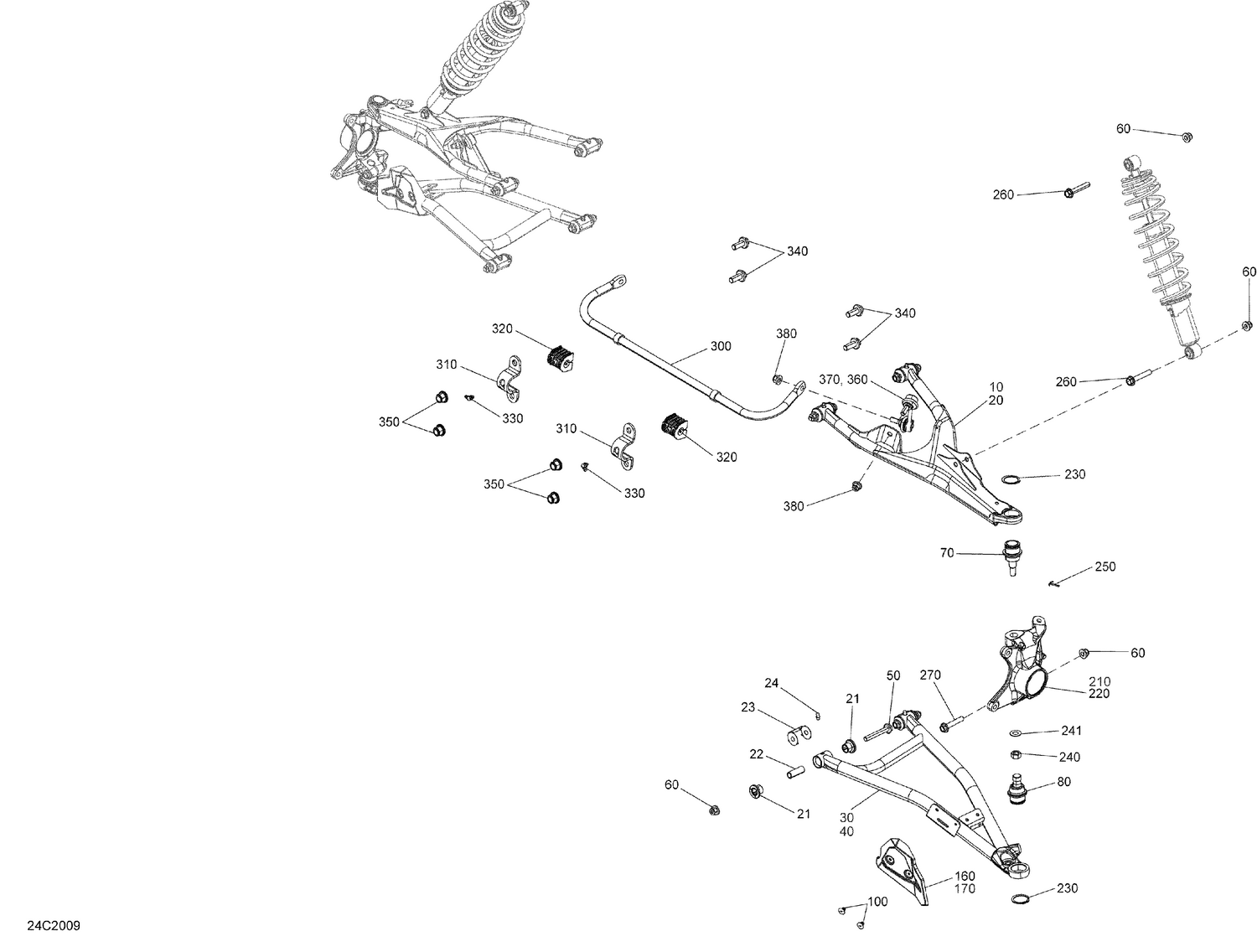

07- Suspension, Front - System
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 21 | 703500875 | Suspension Arm Bushing Kit |
| 22 | 703500875 | Suspension Arm Bushing Kit |
| 23 | 703500875 | Suspension Arm Bushing Kit |
| 24 | 408200700 | Grease Fitting |
| 50 | 207607046 | Hex. Flange Screw M10 X 70 |
| 60 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 70 | 706203084 | Ball Joint |
| 80 | 706202045 | Ball Joint |
| 100 | 293150104 | Pop Rivet 3/16" |
| 160 | 706202135 | RH CV joint Guard |
| 170 | 706202134 | LH CV joint Guard |
| 210 | 706205517 | LH Knuckle This part replaces 706203096. |
| 220 | 706205047 | RH Knuckle This part replaces 706203097. |
| 230 | 293370035 | Circlip |
| 240 | 250100099 | Nut M12 |
| 241 | 706200281 | Hardened Washer This part replaces 250200086. |
| 250 | 211400017 | Cotter Pin |
| 260 | 207606046 | Hex. Flange Screw M10 X 6 |
| 270 | 207605546 | Hex. Flange Screw M10 X 55 |
| 300 | 706203167 | Sway Bar |
| 310 | 706203437 | Clamp |
| 320 | 706204802 | Stabilizer Bar Bushing This part replaces 706002535. |
| 330 | 293550056 | Grease Fitting 90° |
| 340 | 250000951 | Hex. Flange Screw DIN.6921 |
| 350 | 233221466 | Elastic Flange Nut M12 |
| 360 | 706202538 | RH Stabilizer Bar Link |
| 370 | 706202539 | LH Stabilizer Bar Link |
