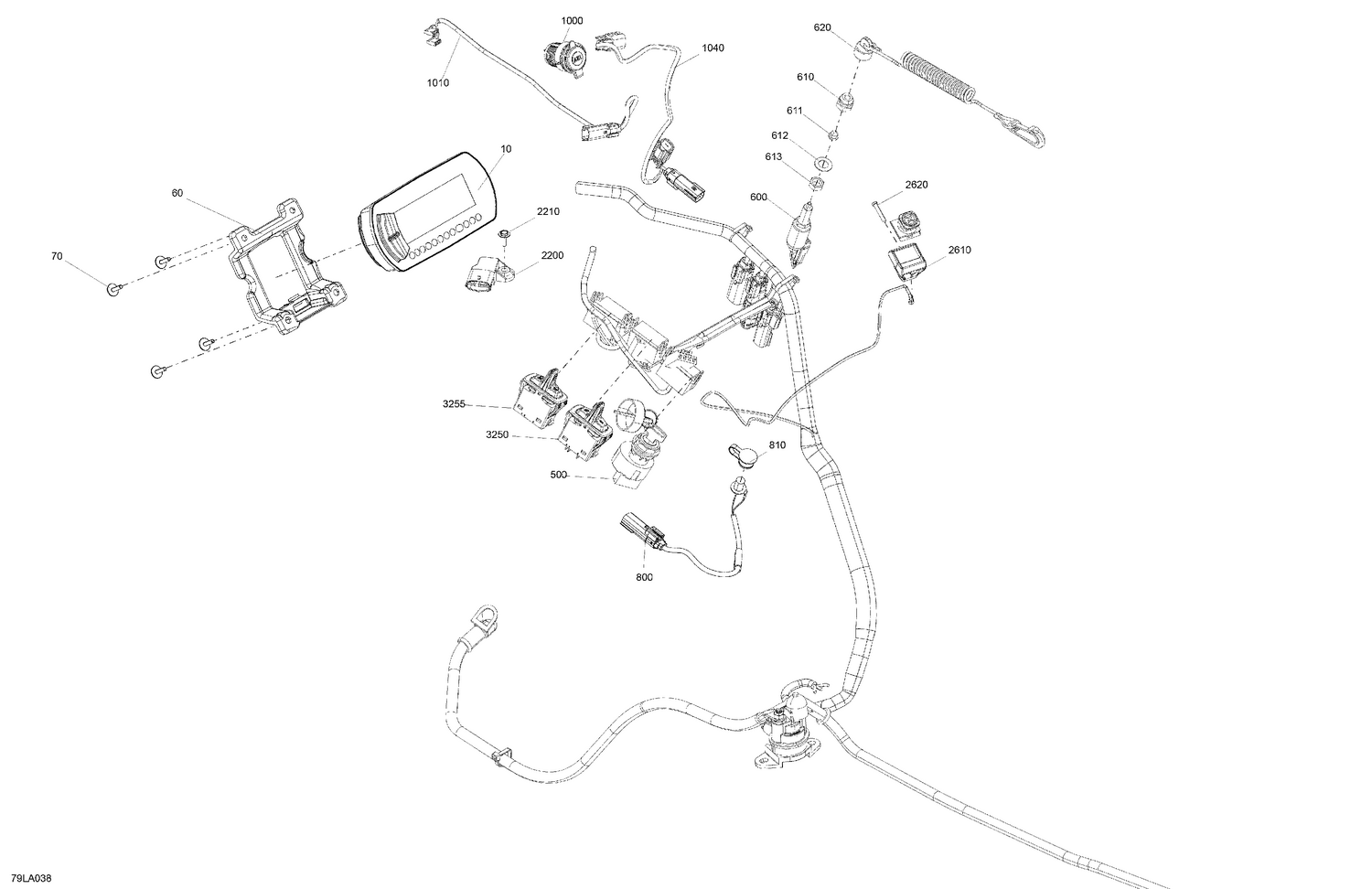

08- Electric - Upper Section
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178226 | Multifunction Gauge Full Size Color |
| 60 | 515178450 | Housing |
| 70 | 250000725 | Screw M4 X 16 |
| 500 | 515177063 | Ignition Switch |
| 600 | 515175653 | Brake Switch |
| 610 | 515145900 | Switch Nut |
| 611 | 570151100 | Plunger Cap |
| 612 | 503189564 | Washer |
| 613 | 234002600 | Flat Washer 10 mm, Stainless |
| 620 | 515178283 | Cap Ass'y |
| 800 | 515178645 | Heated Visor Wiring Harness |
| 810 | 572103300 | Cap |
| 1000 | 710001248 | Pistoke, virran ulosotto |
| 1010 | 515178190 | Harness |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000725 | Screw M4 X 16 |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 3255 | 515178463 | Switch Rocker Headlignt |
