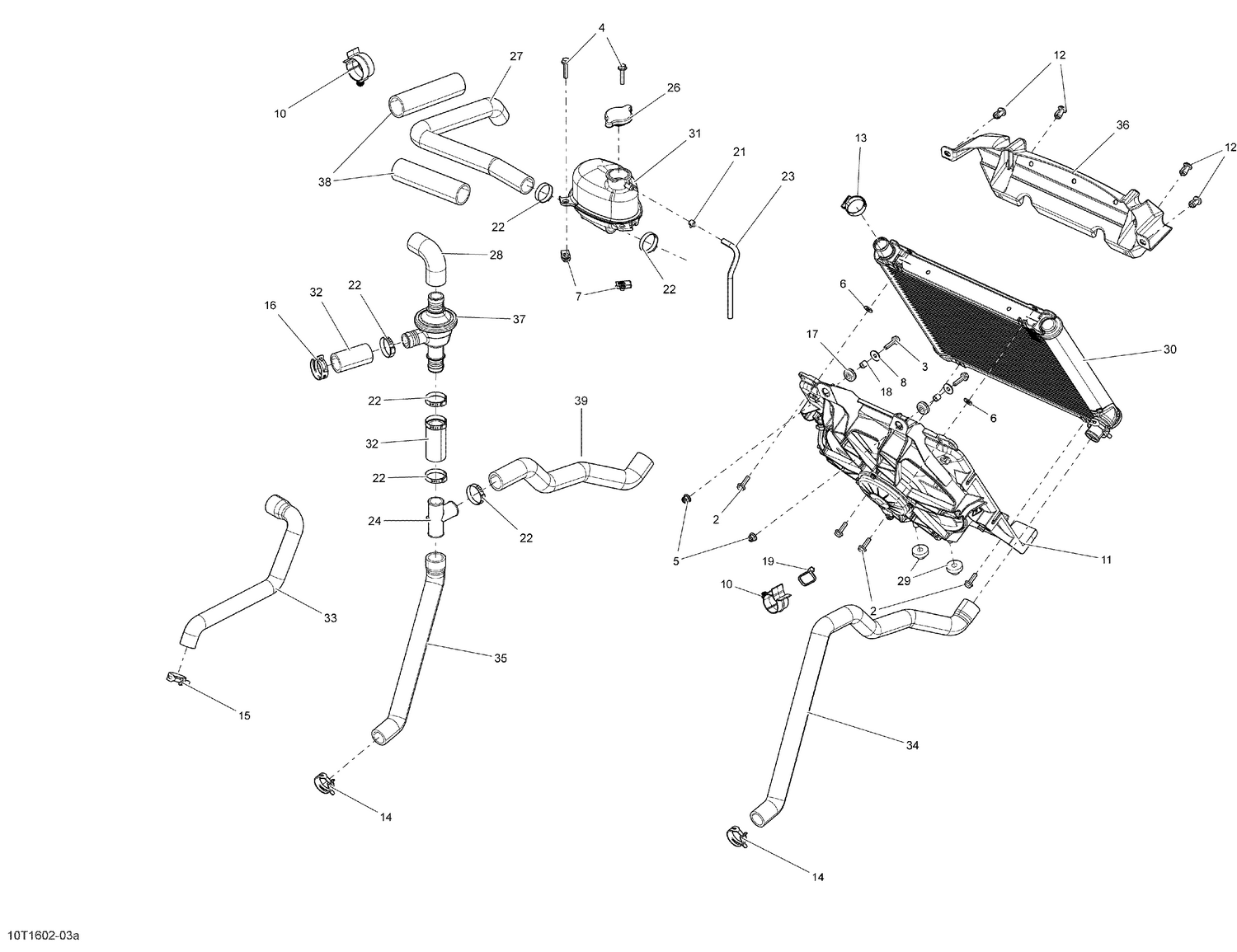

01- Cooling System - Except XMR
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207662034 | Hex. Flange Screw M6 X 20 |
| 3 | 207662534 | Hex. Flange Screw M6 X 25 |
| 4 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 5 | 233261434 | Flange Elastic Nut M6 |
| 6 | 234081410 | Flat Washer 8 mm |
| 7 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 8 | 250200082 | Flat Washer |
| 10 | 275500590 | Retainer |
| 12 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 13 | 293650098 | Norma Gear Clamp |
| 14 | 293650108 | Norma Spring Clamp |
| 15 | 293650109 | Norma Spring Clamp |
| 16 | 293650166 | Norma Spring Clamp |
| 17 | 709000582 | Grommet This part replaces 293720053. |
| 18 | 293900105 | Bushing |
| 19 | 414115200 | Tie-Rap 180 mm |
| 21 | 414554800 | Spring Clamp |
| 22 | 509000162 | Gear Clamp |
| 23 | 219704410 | Polyurethane Hose 10000Mm Long |
| 26 | 709200207 | Radiator Pressure Cap |
| 27 | 709200278 | Radiator Inlet Hose |
| 29 | 709200285 | Grommet |
| 30 | 709200286 | Radiator |
| 31 | 709200297 | Coolant Tank |
| 36 | 709200393 | Air Deflector |
| 38 | 219704428 | Tubing 35 MM 1000MM Long |
