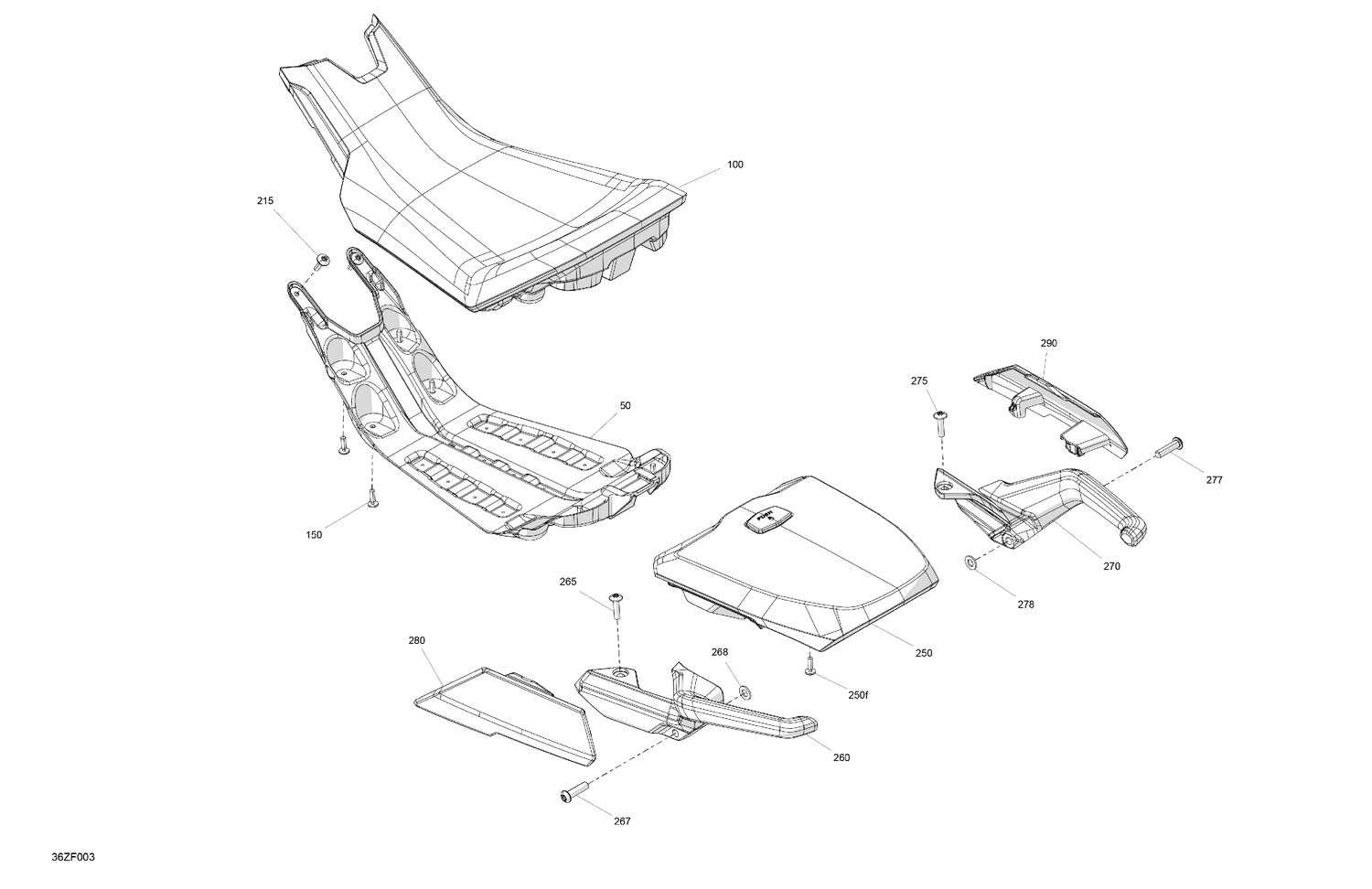

07- Body - Seat
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 50 | 708003292 | Driver Seat Base |
| 100 | 708003293 | Seat Driver Foam |
| 150 | 250000720 | Torx Screw K50 X 16 |
| 215 | 250000895 | Torx-Truss M/S M5X20 |
| 250f | 250000720 | Torx Screw K50 X 16 |
| 260 | 708004069 | LH Passenger Handle |
| 265 | 250001000 | Torx-Truss M/S M6 X 25 |
| 267 | 250001377 | Screw Torx Button Head M8 X 30 |
| 268 | 250200197 | Flat Washer 8 Mm |
| 270 | 708004070 | RH Passenger Handle |
| 275 | 250001000 | Torx-Truss M/S M6 X 25 |
| 277 | 250001377 | Screw Torx Button Head M8 X 30 |
| 278 | 250200197 | Flat Washer 8 Mm |
| 280 | 708004115 | Deep Black, LH Seat Trim |
