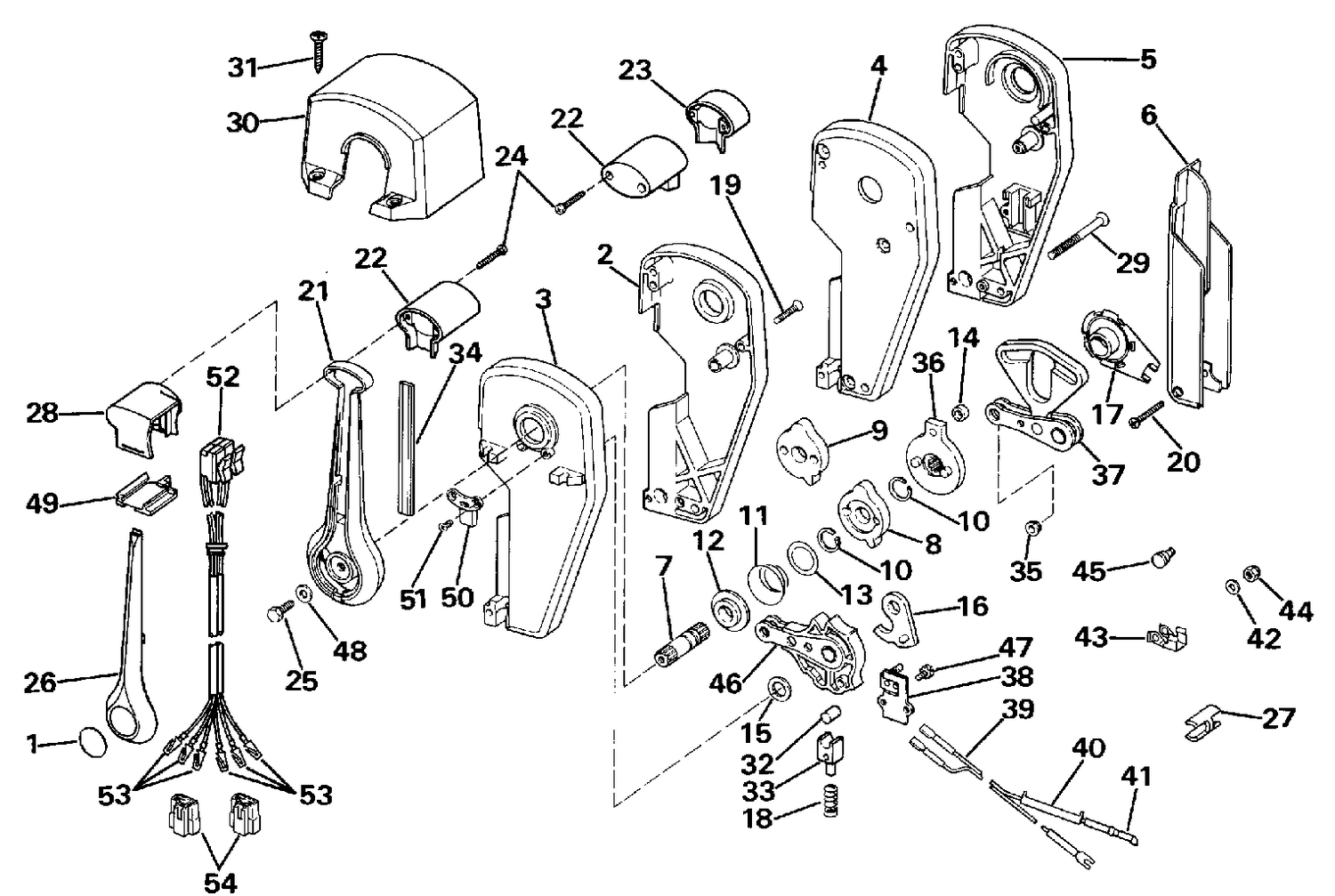

| Ref | Part Number | Description |
|---|
| 2 |
0125456 |
HOUSING |
| 3 |
0125457 |
HOUSING |
| 4 |
0125459 |
HOUSING |
| 5 |
0125460 |
HOUSING |
| 6 |
0173598 |
TRAY |
| 7 |
0123261 |
SHAFT, Remote control |
| 8 |
0123496 |
DRIVE GAR, Starboard |
| 9 |
0123497 |
DRIVE GEAR, Port |
| 11 |
0123265 |
SPRING, Drive gear |
| 12 |
0123266 |
BRUSHING, Shaft to housing |
| 13 |
0123267 |
WASHER |
| 14 |
0123268 |
ROLLER Throttle cam |
| 15 |
0123269 |
WASHER |
| 16 |
0123270 |
CAM Neutral switch |
| 17 |
0173587 |
FIRCTION CONTROL |
| 18 |
0909859 |
SCREW, Control housing |
| 20 |
0123274 |
SCREW, Tray to housing |
| 21 |
0123278 |
HANDLE |
| 22 |
0125198 |
KNOB, Binnacle |
| 23 |
0125199 |
END CAP, Knob |
| 26 |
0123610 |
COVER, Handle |
| 27 |
0123439 |
SPACER, Control cable |
| 28 |
0125200 |
KNOB, Switch housing |
| 29 |
0123310 |
SCREW, Binnacle assy |
| 30 |
0125151 |
COVER |
| 31 |
0124894 |
SCREW, Control mounting |
| 33 |
0123342 |
SHOE Detent roller |
| 34 |
0123343 |
TRIM INSERT |
| 35 |
0123350 |
BUSHING |
| 36 |
0173571 |
THROTTLE CAM & ARMS ASSY. |
| 37 |
0173478 |
THROTTLE CAM & ARM ASSY. |
| 38 |
0173480 |
NEUTRAL START SWITCH |
| 39 |
0173572 |
LEAD ASSEM BLY |
| 42 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 46 |
0173542 |
SHAFT GEAR & ARMS ASSY |
| 47 |
0308545 |
SCREW |
| 49 |
0125197 |
HATCH SWITCH KNOB |
| 50 |
0125196 |
RETAINER, Switch leads |
| 51 |
0123340 |
SCREW, Retainer |
| 52 |
0174583 |
TRIM SWITCH & LEAD ASSY |
| 53 |
0825886 |
TERMINAL |
| 0173581 |
0173581 |
CABLE MOUNT HARDWARE KIT |
| 0174584 |
0174584 |
REMOTE CONTROL ASSY. Binnacle mount, dual lever, 150CX |
