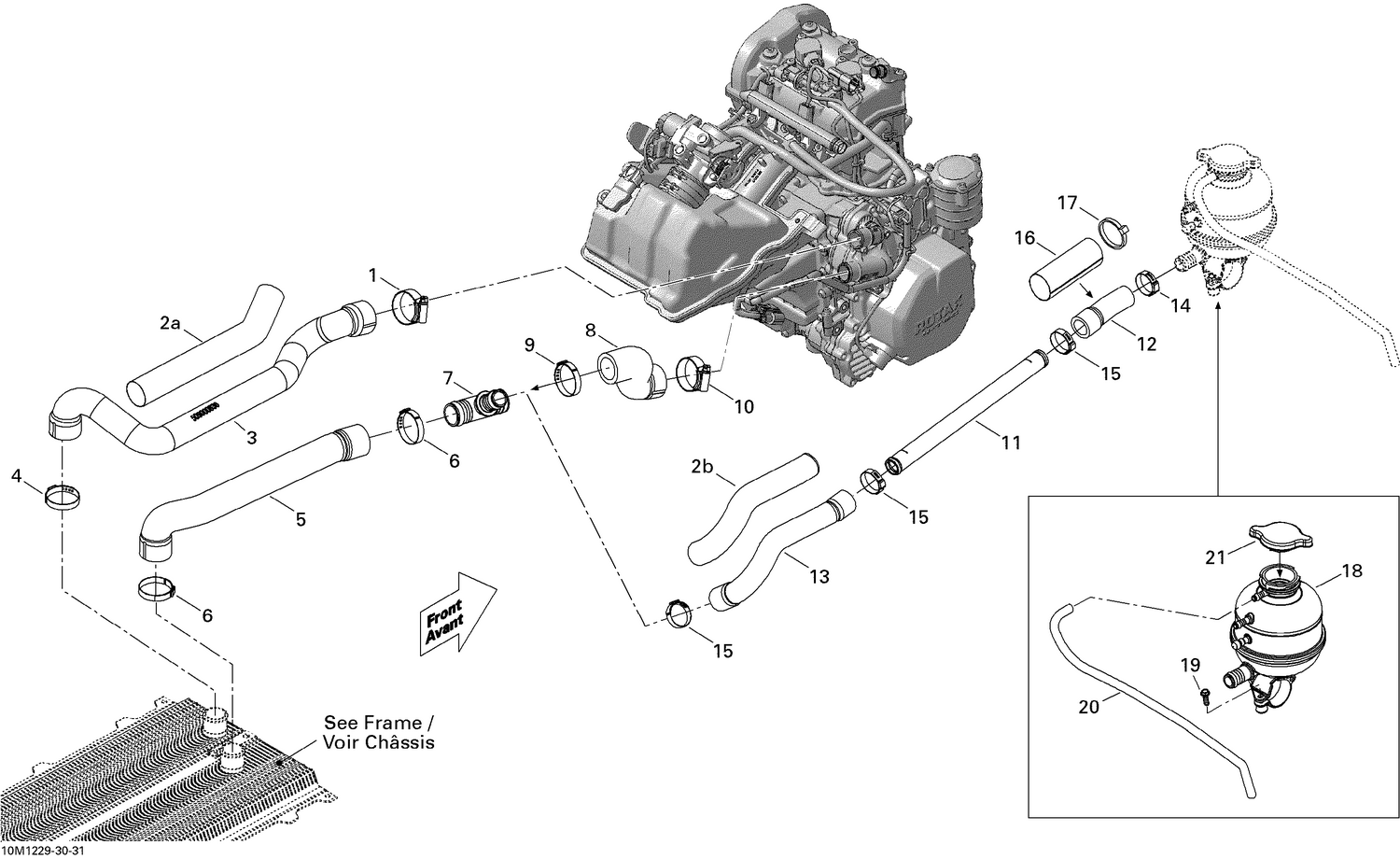

01- Cooling System
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 2a | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 2b | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 3 | 509000836 | Engine Outlet Hose |
| 4 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 5 | 509001062 | Radiator Return Hose This part replaces 509000697. |
| 6 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 7 | 509000372 | T-Fitting |
| 8 | 509000565 | Engine Inlet Hose |
| 9 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 10 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 11 | 509000644 | PIPE - Call your local BRP dealership |
| 12 | 509000698 | HOSE - Call your local BRP dealership |
| 13 | 509000563 | HOSE - Call your local BRP dealership |
| 14 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 15 | 293650099 | Crimp Clamp |
| 16 | 707001349 | Protector Tube This part replaces 509000730. |
| 17 | 414115200 | Tie-Rap 180 mm |
| 18 | 509000421 | Coolant Tank |
| 19 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 20 | 219704360 | Hose 6 Mm 15000Mm Long |
