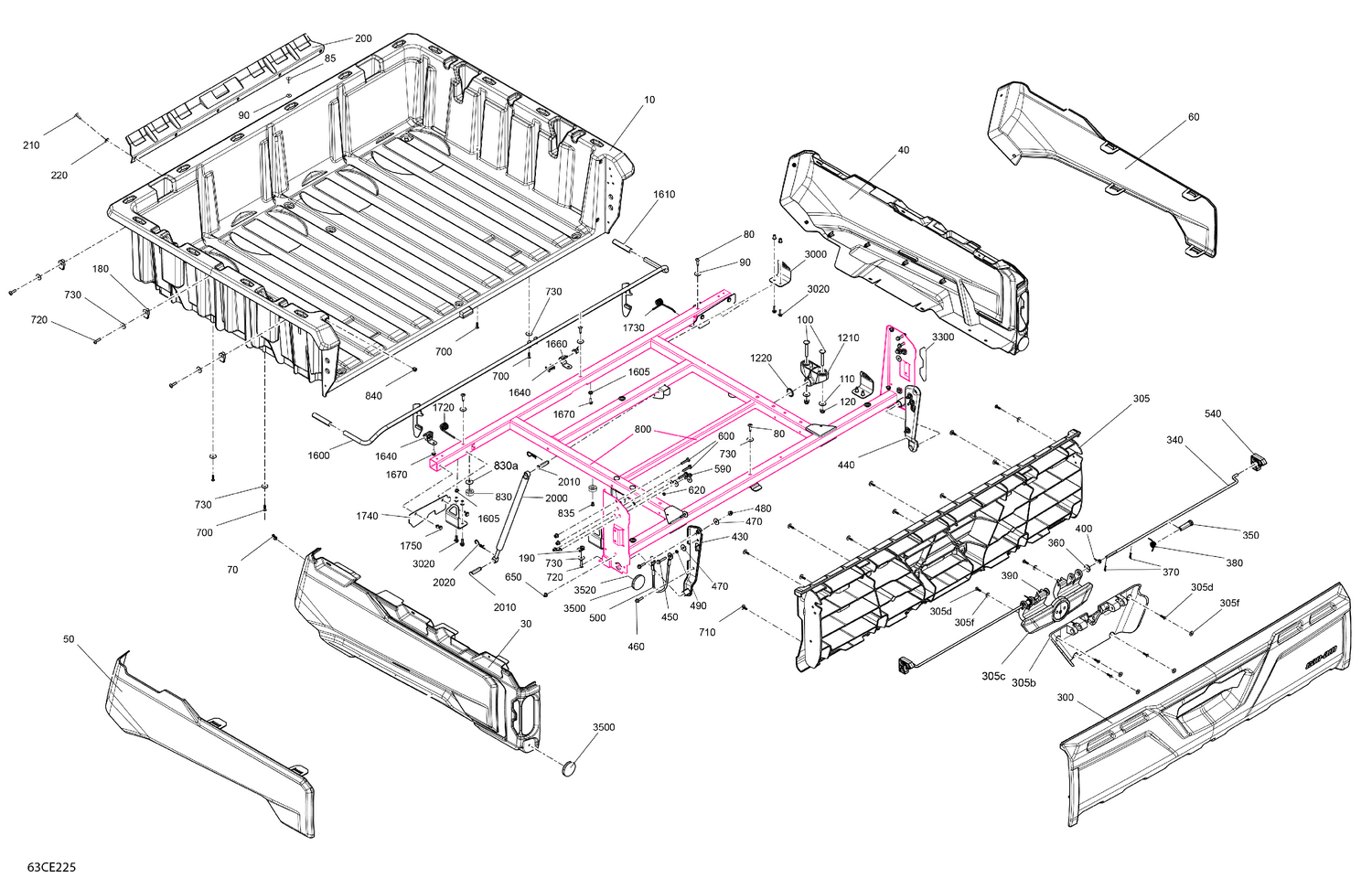

| Ref | Part Number | Description |
|---|
| 10 |
715010334 |
Open Carrier Interior Ass'y |
| 30 |
708304328 |
LH Panel Exterior |
| 40 |
708304329 |
RH Panel Exterior |
| 50 |
708304318 |
Macchiato Satin, LH Open Carrier Trim |
| 60 |
708304319 |
Macchiato Satin, RH Open Carrier Trim |
| 70 |
293150230 |
Tuflok Plastic Rivet |
| 80 |
250000728 |
Torx Screw M6 X 25 |
| 85 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 90 |
250200162 |
Flat Washer M6.6 X 22 |
| 100 |
207786044 |
Carriage Bolt M8 X 60 |
| 110 |
234082410 |
Flat Washer 8 mm |
| 120 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 180 |
250100224 |
Panel Nut M6 X 1.0 |
| 190 |
250100198 |
Panel Nut M6 X 1.0 |
| 200 |
708302584 |
Deflector |
| 210 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 220 |
517124300 |
Washer |
| 300 |
708301227 |
Outside Tailgate |
| 305b |
708302913 |
Handle Support |
| 305c |
708302911 |
Handle |
| 305d |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 305f |
250200025 |
Washer M5 |
| 340 |
708301500 |
Handle Rod |
| 350 |
708304564 |
Bushing Hinge |
| 360 |
708301653 |
Washer |
| 370 |
269800431 |
Hairpin Cotter |
| 380 |
705009468 |
Spring |
| 390 |
705009470 |
Spring |
| 400 |
705009471 |
Spring |
| 430 |
708304219 |
LH Tailgate Support |
| 440 |
708304221 |
RH Tailgate Support |
| 450 |
207663554 |
Hex. Flange Screw M6 X 35 |
| 460 |
207662554 |
Hex. Flange Screw M6 X 25 |
| 470 |
250200162 |
Flat Washer M6.6 X 22 |
| 480 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 490 |
708300737 |
Bushing |
| 500 |
708301491 |
Cable |
| 540 |
708304062 |
Latch Stopper |
| 590 |
207662554 |
Hex. Flange Screw M6 X 25 |
| 600 |
207663554 |
Hex. Flange Screw M6 X 35 |
| 620 |
708300737 |
Bushing |
| 650 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 700 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 710 |
250200025 |
Washer M5 |
| 720 |
250000807 |
Torx Truss Screw M6 X 25 |
| 730 |
250200162 |
Flat Washer M6.6 X 22 |
| 800 |
703501215 |
Open Carrier Frame Kit |
| 830a |
224060251 |
Washer |
| 835 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 840 |
293830005 |
Rubber Bumper |
| 1210 |
708303735 |
Support Pivot |
| 1220 |
293300131 |
O-Ring |
| 1600 |
708303712 |
Latch Lever |
| 1605 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 1610 |
708300358 |
Cap Latch Lever |
| 1640 |
705503570 |
Half Ring |
| 1660 |
708301479 |
Clamp Retainer |
| 1670 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 1720 |
708303190 |
LH Torsion Spring |
| 1730 |
708303191 |
RH Torsion Spring |
| 1740 |
708303097 |
Deflector |
| 1750 |
293150230 |
Tuflok Plastic Rivet |
| 2000 |
715007129 |
Gas Shock Absorber |
| 2010 |
250400098 |
Pin Clevis |
| 2020 |
414575600 |
Hair Pin |
| 3000 |
708301480 |
Retaining Plate |
| 3020 |
207662054 |
Hex. Flange Screw M6 X 20 |
| 3300 |
704905074 |
Reflector |
| 3500 |
705016982 |
Red, Reflector |
