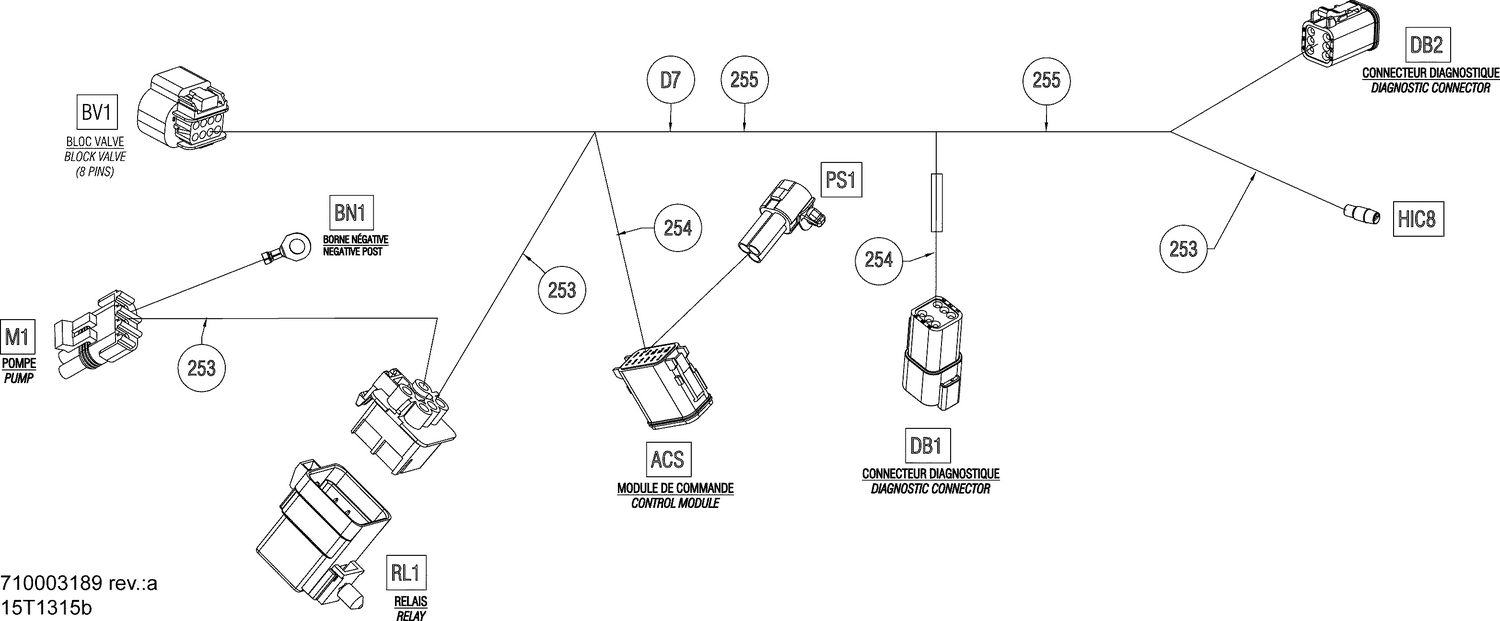

10- Electrical Harness Compressor
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| ACS | 278001665 | Female Terminal |
| ACS | 293000052 | Sealing Cap |
| BN1 | 278000992 | Open Barrel |
| BV1 | 710001229 | Terminal |
| BV1 | 710001233 | Seal |
| BV1 | 710001928 | Housing |
| D7 | 409012700 | Diode |
| D8 | 409012700 | Diode |
| D9 | 409012700 | Diode |
| DB1 | 278000735 | Female Lock, 6 Circuits |
| DB1 | 710001348 | Male Terminal |
| DB1 | 710001539 | Male Terminal Housing, 6 Circuits |
| DB2 | 278001665 | Female Terminal |
| DB2 | 515175678 | Male Wedge, 6 Circuits |
| DB2 | 710001540 | CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership |
| HIC8 | 278000230 | Male Terminal |
| HIC8 | 278001008 | Insulated Sheath |
| M1 | 278000216 | Wire Seal |
| M1 | 278000218 | Wire Seal |
| M1 | 278000273 | Male Housing, 3 Circuits |
| M1 | 409007300 | Female Terminal |
| PS | 409011300 | Male Terminal |
| PS | 710000402 | Wire Seal |
| PS | 710000722 | Connector |
| RL1 | 278000216 | Wire Seal |
| RL1 | 278000218 | Wire Seal |
| RL1 | 278001065 | Wire Seal |
| 1 | 710003189 | COMPRESSOR HARNESS ASS'Y - Call your local BRP dealership |
| 253 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 254 | 219704399 | Was 409901700 Tubing (9 mm) |
| 256 | 219704408 | Tubing 16 Mm 1000Mm Long |
