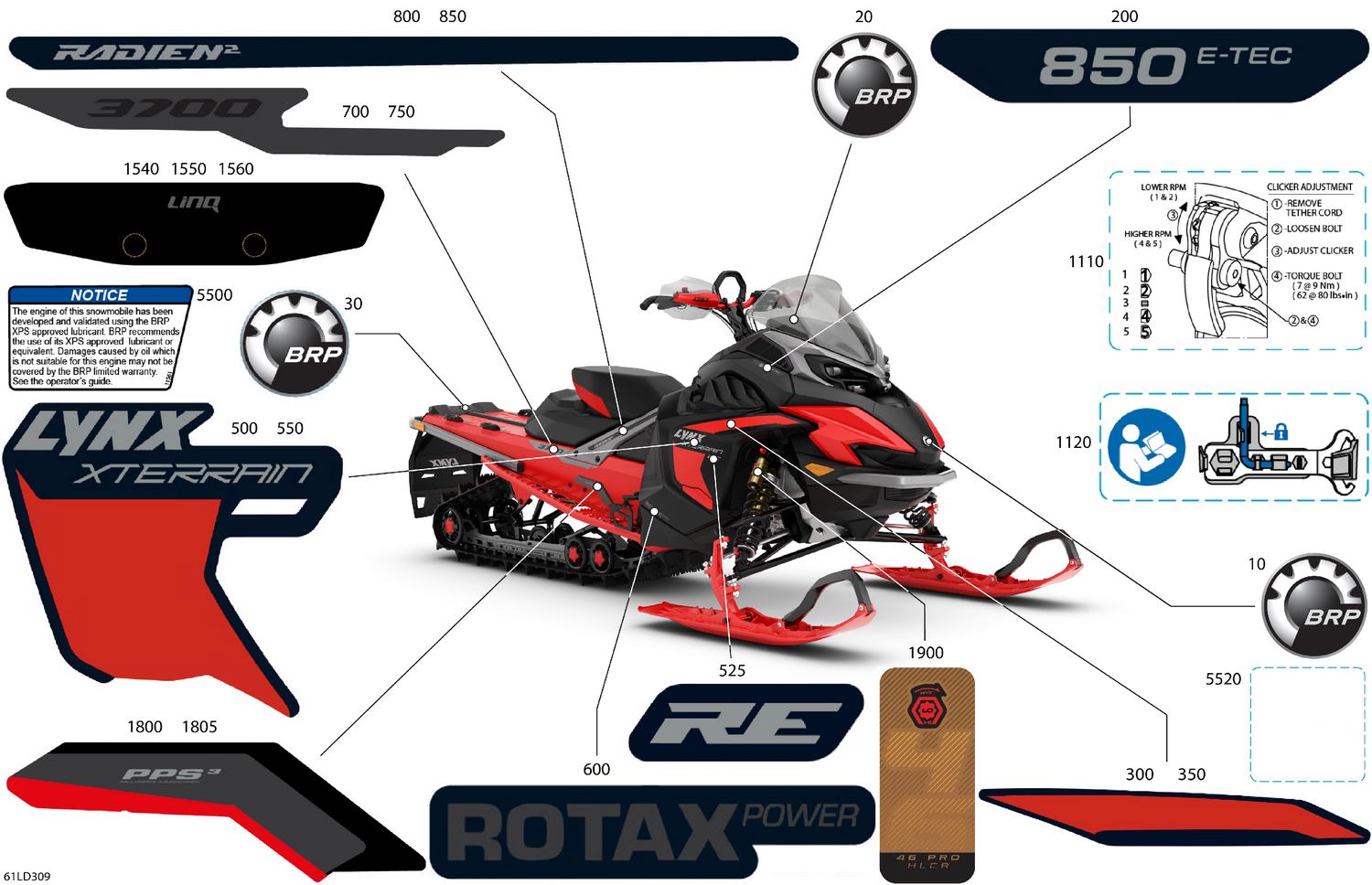

07- Body - Decals
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704909039 | Emblem BRP Logo 35 MM UV |
| 20 | 704909038 | Emblem Logo BRP 20 MM UV |
| 30 | 704909040 | Emblem BRP Logo 48 MM UV |
| 200 | 516011713 | Engine Decal 850 E-TEC |
| 300 | 516011754 | LH Top Panel Decal |
| 350 | 516011755 | LH Middle Panel Decal |
| 500 | 516011758 | LH Middle Panel Decal |
| 525 | 516011760 | Middle Panel Decal |
| 550 | 516011759 | RH Middle Panel Decal |
| 600 | 516011753 | ROTAX POWER Decal |
| 700 | 516011765 | LH Middle Tunnel Decal |
| 750 | 516011766 | RH Middle Tunnel Decal |
| 800 | 516011769 | LH Cross Member Decal |
| 850 | 516011770 | RH Cross Member Decal |
| 1110 | 516009265 | Ramp Clicker Decal |
| 1120 | 516011629 | Tool Instruction Label |
| 1540 | 516011681 | Decal Q-Link |
| 1550 | 516011681 | Decal Q-Link |
| 1560 | 516011681 | Decal Q-Link |
| 1800 | 516011771 | LH Decal, PPS3 |
| 1805 | 516011772 | RH Decal, PPS3 |
| 1900 | 516012120 | Decal KYB PRO 46 HLCRK |
| 5500 | 516011561 | Oil Tank Label |
