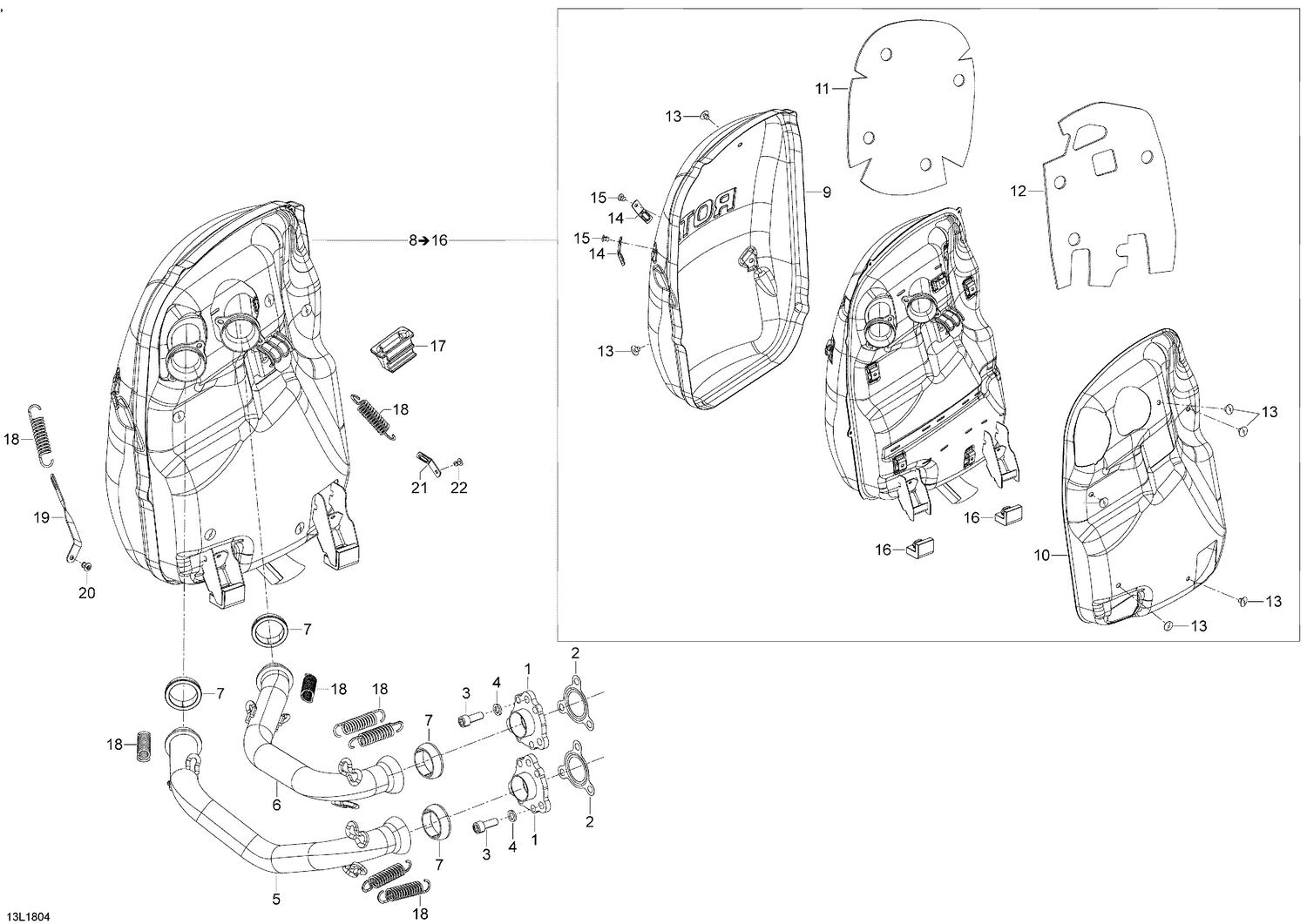

01- Exhaust 600 ACE - XU
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514054673 | Exhaust Manifold |
| 2 | 514055112 | Gasket |
| 3 | 250000414 | Socket Head Screw M8 X 22 |
| 4 | 250200111 | Washer |
| 5 | 514054733 | Welded Tube |
| 6 | 514054734 | WELDED TUBE - Call your local BRP dealership |
| 7 | 514054807 | Exhaust Gasket |
| 9 | 514055325 | RH Heat Shield |
| 10 | 514054645 | LH Heat Shield |
| 11 | 514054769 | RH Insulating Wool |
| 12 | 514054770 | LH Insulating Wool |
| 13 | 390910000 | Pop Rivet 3/16” |
| 14 | 514054522 | Spring Bracket |
| 15 | 390909200 | Avex Rivet |
| 16 | 514054496 | Lower Stopper |
| 17 | 514054737 | Upper Stopper |
| 18 | 415107100 | Spring |
| 19 | 514055317 | Spring Bracket |
