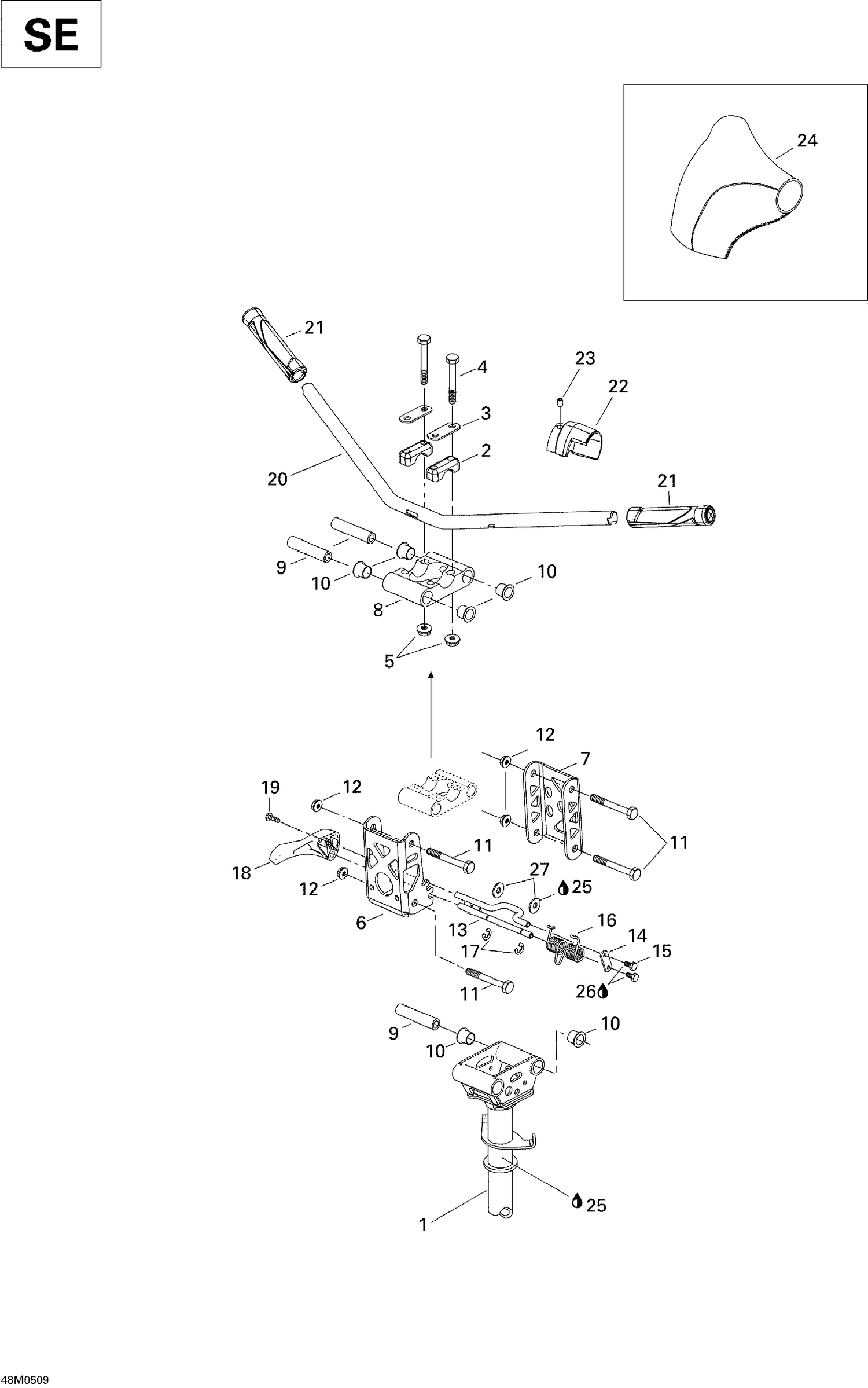

| Ref | Part Number | Description |
|---|
| 1 |
506151764 |
Tube |
| 2 |
709400919 |
Steering Support This part replaces 506151622. |
| 3 |
709400509 |
Stiffner This part replaces 506151196. |
| 4 |
207086044 |
HEX. SCREW M8 X 60 - Call your local BRP dealership |
| 5 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 6 |
506151156 |
FRONT ARM - Call your local BRP dealership |
| 7 |
506151152 |
Rear Arm |
| 8 |
506151147 |
Clamp |
| 9 |
506151146 |
Spacer |
| 10 |
506152520 |
Cushion This part replaces 506151153. |
| 11 |
207688044 |
HEX. FLANGED SCREW M8 X 80 - Call your local BRP dealership |
| 12 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 13 |
506151162 |
Lock |
| 14 |
506151240 |
Plate |
| 15 |
207141044 |
HEX. SCREW M4 X 10 - Call your local BRP dealership |
| 16 |
506151219 |
SPRING - Call your local BRP dealership |
| 17 |
414274500 |
Circlip |
| 18 |
506151188 |
HANDLE - Call your local BRP dealership |
| 19 |
205041254 |
Socket Head Screw M4 X 12 This part replaces 205041284. |
| 20 |
506151685 |
HANDLEBAR - Call your local BRP dealership |
| 21 |
506152238 |
Handle Grip This part replaces 506151714. |
| 22 |
506151566 |
ADAPTATOR - Call your local BRP dealership |
| 23 |
206581244 |
SOCKET SET SCREW M8 X 12 - Call your local BRP dealership |
| 24 |
506151598 |
COVER - Call your local BRP dealership |
| 25 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 26 |
293800060 |
Loctite 243, 10 ml |
