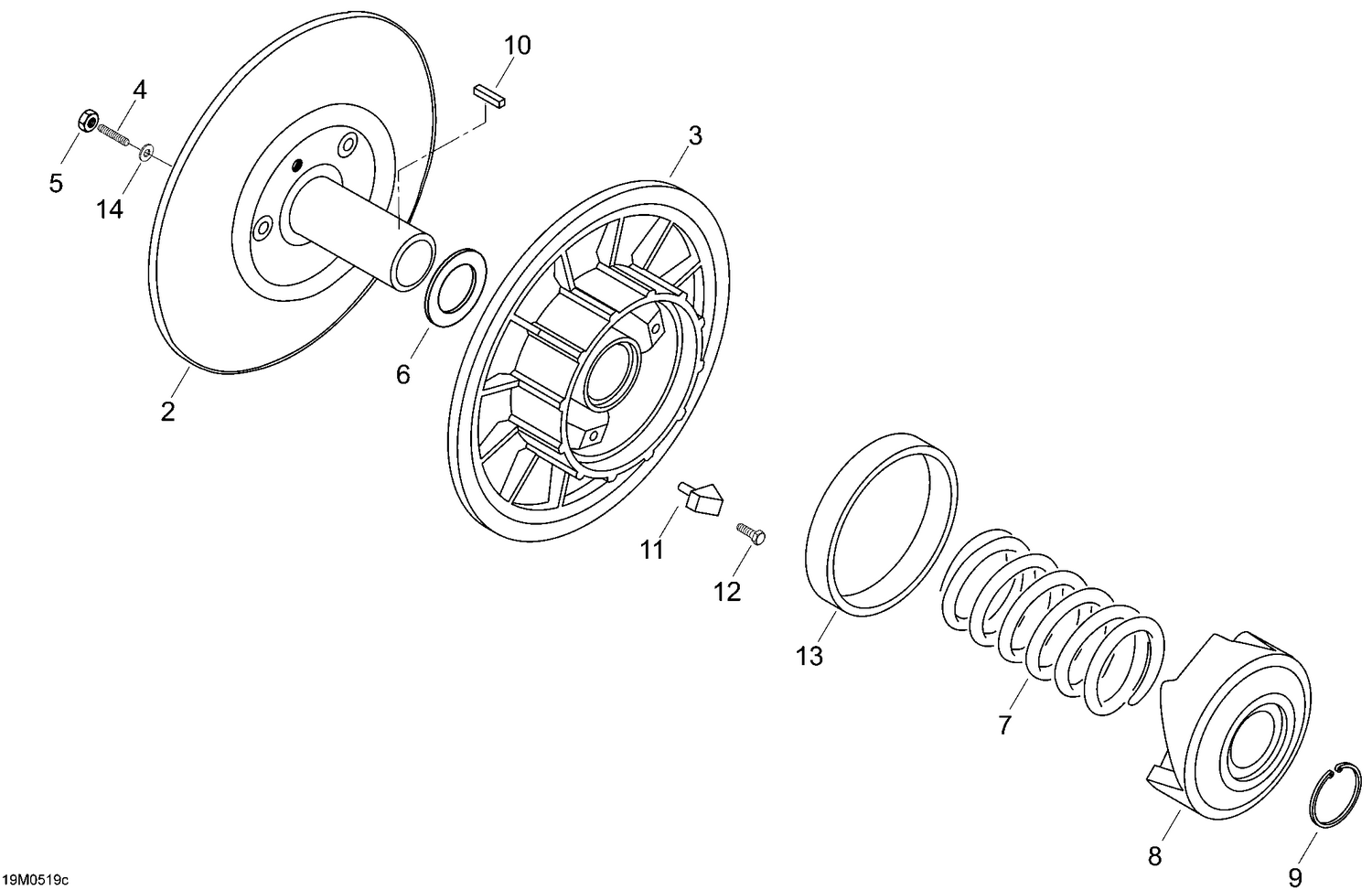

| Ref | Part Number | Description |
|---|
| 2 |
M140065 |
FIXED FLANGE - Call your local BRP dealership |
| 3 |
M140066 |
Sliding Flange |
| 4 |
Not |
Available As Spare Part - Hex. Screw Set |
| 5 |
232061414 |
Hex. Nut M6 |
| 6 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 7 |
M140069 |
Release Spring, Black |
| 8 |
M140067 |
Cam 40/30 Degr. |
| 9 |
371903100 |
CIRCLIP - Call your local BRP dealership |
| 10 |
417119400 |
KEY - Call your local BRP dealership |
| 11 |
140068 |
Cam Slide Shoe This part replaces M140068. |
| 12 |
Not |
Available As Spare Part - Screw |
| 13 |
M140053 |
Bushing |
