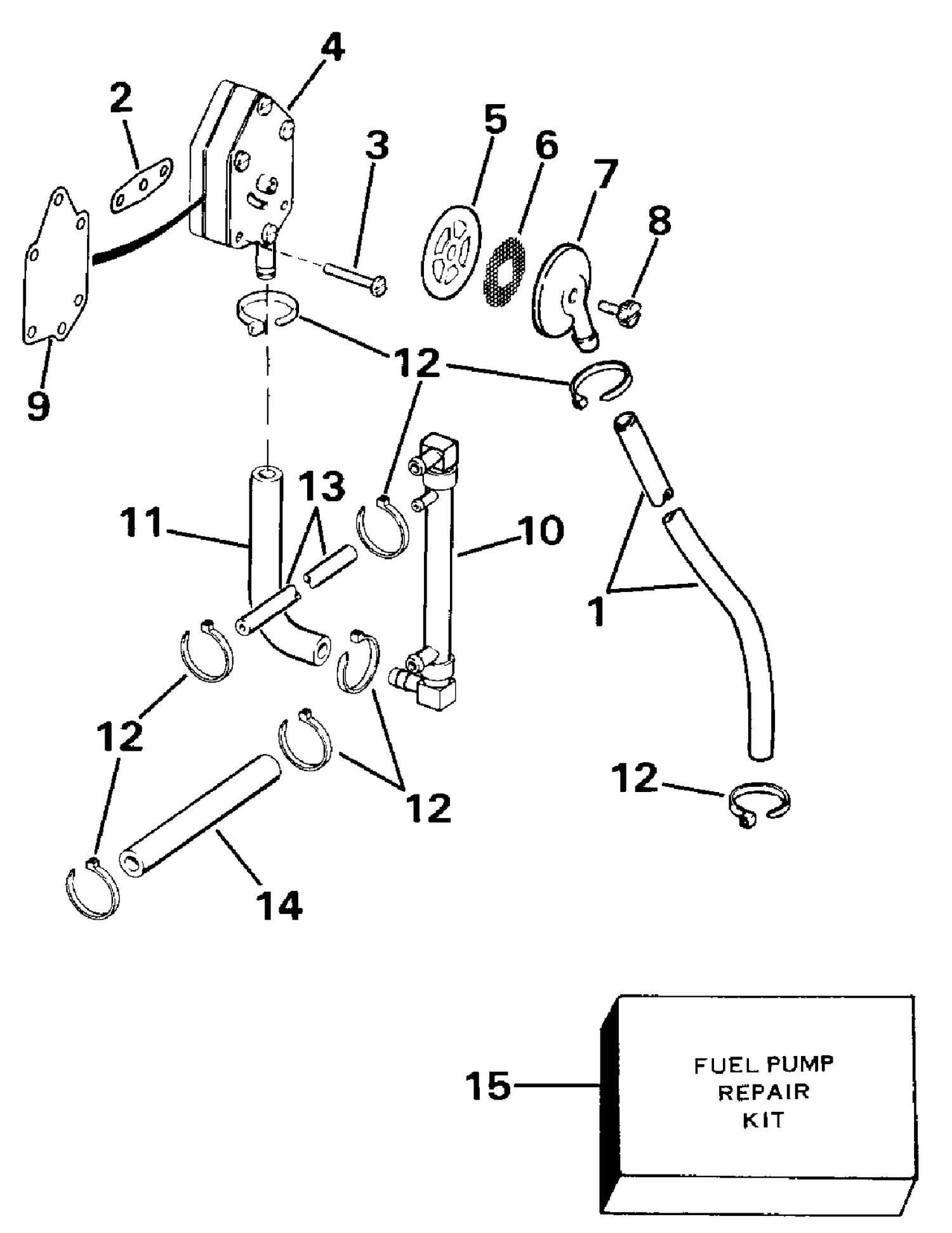

| Ref | Part Number | Description |
|---|
| 1 |
HOSE, |
Connector to filter, 11 1/2 in. (292mm) |
| 2 |
0303615 |
GASKET |
| 4 |
0438556 |
FUEL PUMP ASSY. This part replaces 0398387. |
| 5 |
0338879 |
GASKET, Cap to pump, upper This part replaces 0332694. |
| 7 |
0330092 |
CAP Filter |
| 10 |
0390465 |
FUEL MANIFOLD ASSY. |
| 11 |
0333407 |
FLEXIBLE, filtre à carburant vers pompe à carburant |
| 12 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 13 |
HOSE, |
Manifold to primer, 13" (159mm) |
| 14 |
HOSE, |
Carb. to manifold, 4 1/2" (165mm) |
