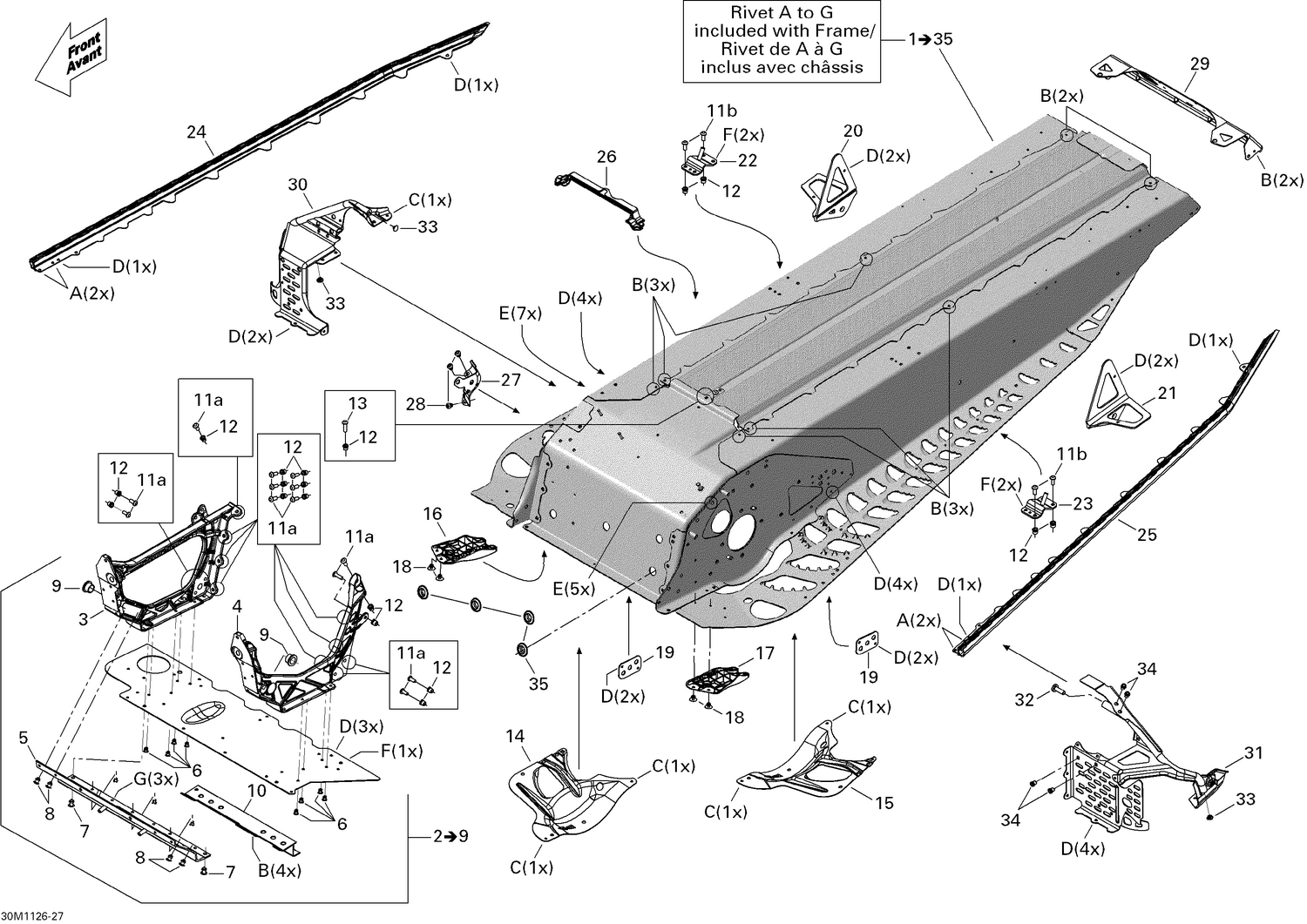

09- Frame
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| A | 390402300 | Pop Rivet 3/16" |
| B | 390909200 | Avex Rivet |
| C | 390909100 | Avex Rivet |
| D | 293150144 | Stavex Rivet |
| E | 293150146 | Henrob Rivet |
| F | 293150174 | Hemlock Rivet, 6.4 mm |
| 3 | 518326795 | RH Member This part replaces 518325922. |
| 4 | 518325558 | LH Member |
| 5 | 518325818 | Front Member |
| 6 | 293150144 | Stavex Rivet |
| 7 | 293150120 | Hemlock Rivet 6.5 mm |
| 8 | 293150119 | Hemlock Rivet, 6.5 mm |
| 9 | 505072690 | Leg Bushing This part replaces 505070954. |
| 10 | 518326120 | ENGINE SUPPORT - Call your local BRP dealership |
| 11a | 207662044 | Hex. Flange Screw M6 X 20 |
| 11b | 207661644 | Hex. Flange Screw M6 X 16 |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 207662044 | Hex. Flange Screw M6 X 20 |
| 14 | 518324874 | RH Reinforcement |
| 15 | 518324875 | LH Reinforcement |
| 16 | 518325782 | RH Deflector, Black Polypropylene |
| 17 | 518325783 | LH Deflector, Black Polypropylene |
| 18 | 293150104 | Pop Rivet 3/16" |
| 19 | 518201321 | REINFORCEMENT PLATE - Call your local BRP dealership |
| 20 | 518324885 | RH Slide Bracket |
| 21 | 518324886 | LH Slide Bracket |
| 22 | 518325973 | RH Rear Base |
| 23 | 518325974 | LH Rear Base |
| 24 | 518324812 | RH Roller |
| 25 | 518324813 | LH Roller |
| 26 | 518326656 | Seal |
| 27 | 518325559 | RH Engine Support |
| 28 | 293150096 | Hemlock Rivet, 6.5 mm |
| 29 | 518327105 | Rear Cap This part replaces 518325421. |
| 30 | 518328938 | RH Stirup This part replaces 518326216. |
| 31 | 518327935 | LH STIRUP - Call your local BRP dealership This part replaces 518326239. |
| 32 | 250000752 | Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. |
| 33 | 293730042 | Full Moon Dart 5 mm |
| 34 | 293450268 | Insert M5 X 0.8 |
| 35 | 293730052 | Black, Plug |
