10- Electrical System _33M1518

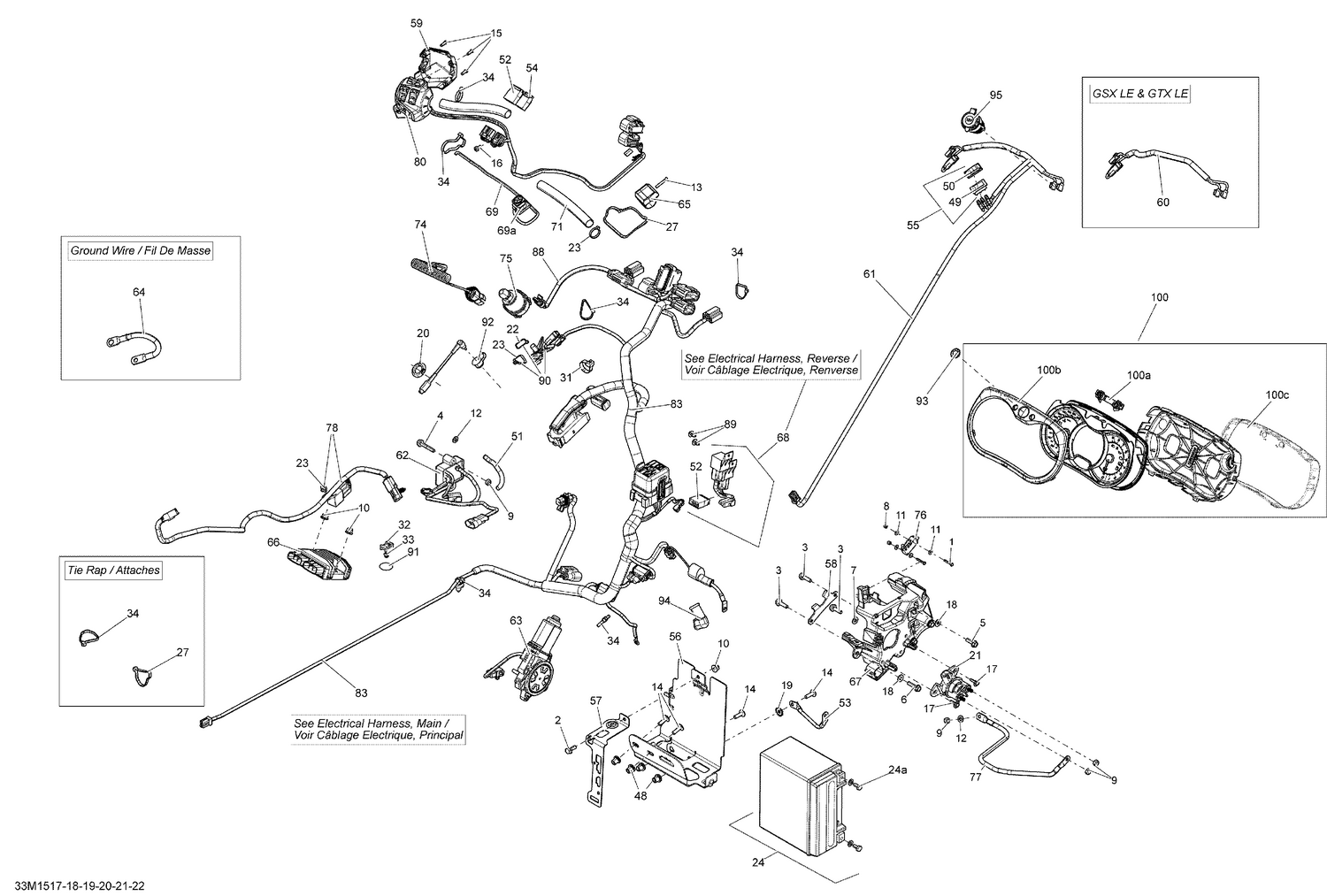

10- Electrical System _33M1518

Parts (69)

RefPart NumberDescription
1 207132044 Hex Screw M3 X 20
2 207661644 Hex. Flange Screw M6 X 16
3 XXX Not Available As Spare Parts
4 XXX Not Available As Spare Parts
5 210262040 Hex. Flange Screw M6 X 20
6 210262550 Hex. Flange Forming Screw M6 X 25 This part replaces 210262580.
7 XXX Not Available As Spare Parts
8 232531423 Elastic Stop Nut M3
9 232561434 Elastic Stop Nut M6
10 233261414 Hex. Flange Elastic Nut M6 x 1.0
11 234032600 Flat Washer M3, Stainless
12 234061410 Flat Washer 6 mm
13 250000263 Torx Screw #8-18
14 250000770 Hex. Socket Screw M6 X 20 This part replaces 250000335.
15 250000671 Torx Screw
16 250000690 Pan Screw Forming, 7500C
17 250000725 Screw M4 X 16
18 250200039 Flat Washer
19 250200041 Lock Washer Serrated M6
20 278002963 Safety Nut (DESS Switch)
21 278003012 Starter Relay
22 293750001 Tie Wrap 94 mm
23 293750002 Tie Wrap 142 mm
24a 250000282 Battery Bolt Kit
27 293750008 Tie Wrap 368 mm
31 293750027 Tie-Rap 206 mm
32 XXX Not Available As Spare Parts
33 XXX Not Available As Spare Parts
34 414115200 Tie-Rap 180 mm
48 293450275 Insert
49 XXX Not Available As Spare Parts
50 XXX Not Available As Spare Parts
51 XXX Not Available As Spare Parts
52 515175662 Male Terminal Housing, 6 Circuits
53 515175749 Ground Wire
54 515175846 Male Terminal Housing, 4 Circuits
55 XXX Not Available As Spare Parts
56 515176970 BATTERY SUPPORT - Call your local BRP dealership
57 515177008 BATTERY STRIP - Call your local BRP dealership
58 XXX Not Available As Spare Parts
59 515177147 Housing Plate
60 XXX Not Available As Spare Parts
61 XXX Not Available As Spare Parts
62 XXX Not Available As Spare Parts
63 XXX Not Available As Spare Parts
64 515177289 Ground Wire
65 515177310 Emergency Stop Switch Support
66 710010539 Voltage Regulator This part replaces 515177325.
67 515177347 Plate
68 XXX Not Available As Spare Parts
69a 515175232 Male Terminal
71 219704418 PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership
74 515178286 Grey, RF Key Ass'y This part replaces 515177457.
75 515178840 Terminal Dess One-Wire This part replaces 515177458.
76 515177460 Switch Ass'y
77 515177535 BATTERY WIRE - Call your local BRP dealership
78 XXX Not Available As Spare Parts
80 515178198 LH Housing This part replaces 515177676.
83 515177750 WIRING HARNESS MAIN - Call your local BRP dealership
88 515177803 WIRING HARNESS MAIN - Call your local BRP dealership
89 XXX Not Available As Spare Parts
90 XXX Not Available As Spare Parts
91 518325560 Adhesive Patch
92 XXX Not Available As Spare Parts
93 516006224 BRP Logo 20MM x 2MM This part replaces 704904616.
94 710000495 Protector Cap
95 XXX Not Available As Spare Parts
100a 415129355 Speedometer Button
100b 415129370 Gauge Ring
