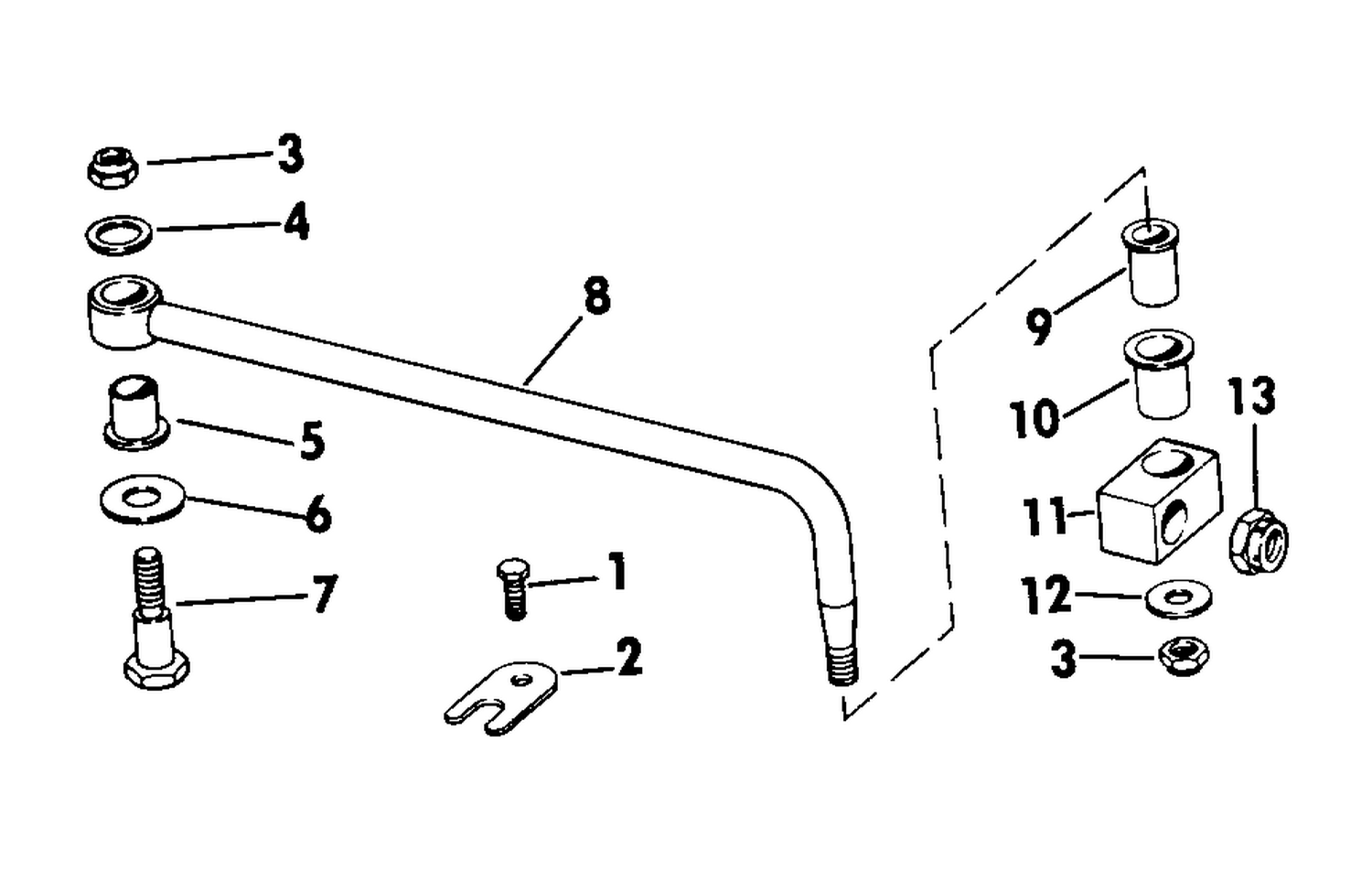

STEERING CON. KITS 50 HP THRU 135 HP-SINGLE ENGINE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0310539 | SCREW, Clamp choke solenoid |
| 2 | 0333739 | RETAINER, Fuel hose to cover This part replaces 0318313. |
| 3 | 0317940 | LOCKNUT |
| 4 | 0317936 | WASHER |
| 5 | 0317934 | BUSHING, Rod |
| 6 | 0204071 | WASHER, Pinion |
| 7 | 0317933 | SCREW, Rod to arm |
| 8 | 0385961 | STEERING ROD, 50 HP |
| 8 | 0385962 | STEERING ROD, 65-135 HP |
| 9 | 0317938 | SLEEVE |
| 10 | 0318193 | BUSHING |
| 11 | 0317941 | SWIVEL BLOCK |
| 0385707 | 0385707 | STEERING ROD KIT, 50 HP |
| 0385708 | 0385708 | STEERING ROD KIT, 70-135 HP |
