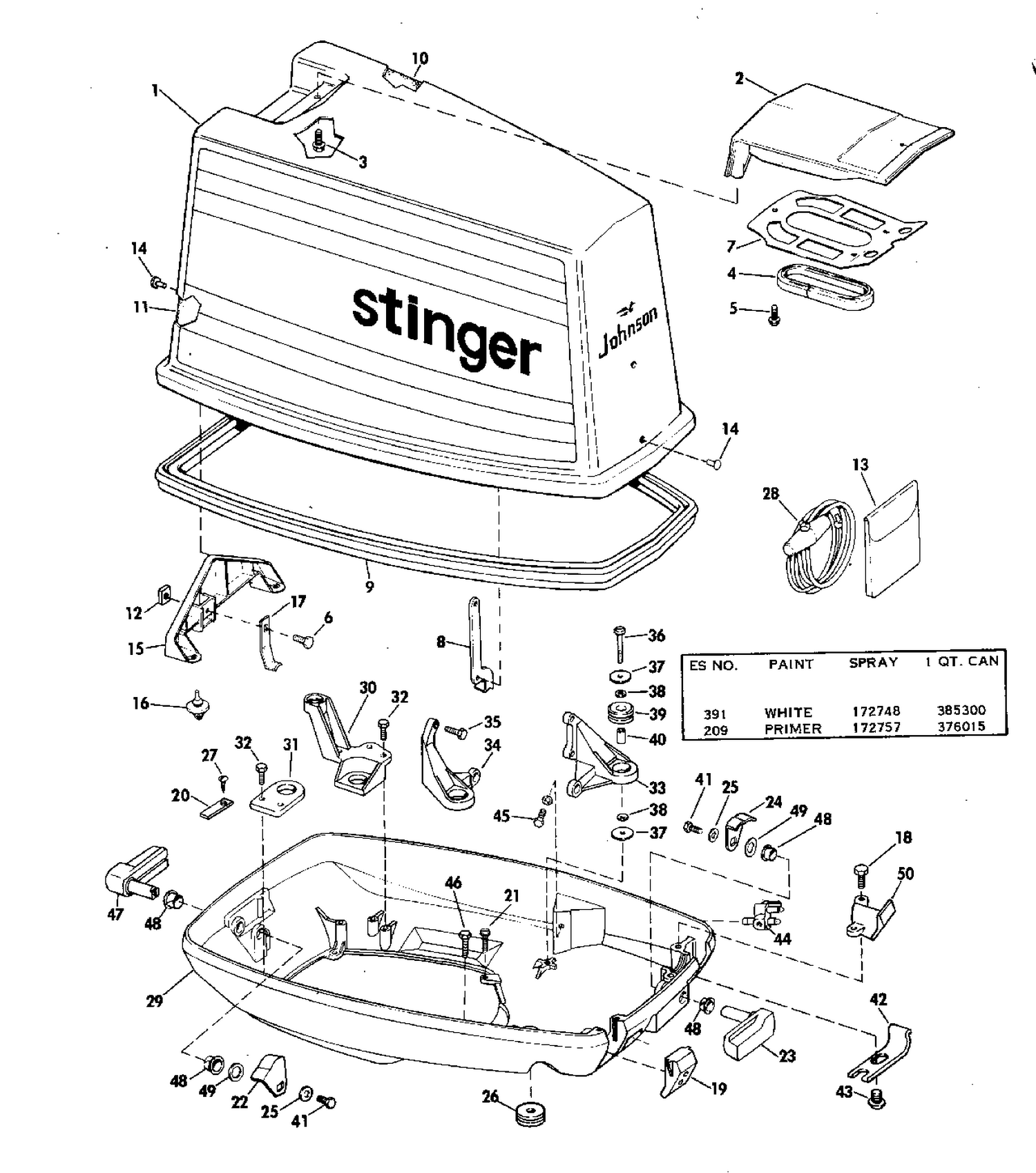

| Ref | Part Number | Description |
|---|
| 1 |
0387911 |
MOTOR COVER ASSEMBLY |
| 1 |
0388176 |
MOTOR COVER ASSSEMBLY |
| 2 |
0389075 |
TILT HANDLE This part replaces 0386009. |
| 4 |
0315984 |
SEAL , Baffle to motor cover |
| 5 |
0316195 |
SCREW |
| 7 |
0315989 |
AIR INLET BAFFLE |
| 8 |
0323233 |
HOOK, Front This part replaces 0315953. |
| 9 |
0329273 |
SEAL, Engine cover This part replaces 0315985. |
| 10 |
0317447 |
SOUND BLANKET, Tip |
| 10 |
520001646 |
Snow Guard |
| 13 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 15 |
2206128 |
LOCATING BRACKET |
| 18 |
0307151 |
SCREW |
| 19 |
0318401 |
GROMMET, Remote cont cable |
| 20 |
0206268 |
SPRING, Handle detent |
| 21 |
0316657 |
SCREW, Cov mtg, front port |
| 23 |
0322537 |
LATCH HANDLE & SHAFT ASSEMBLY |
| 24 |
0330253 |
HOOK Front This part replaces 0318183. |
| 28 |
3788347 |
ROPE,Emergency start |
| 29 |
0386812 |
LOWER MOTOR COVER |
| 30 |
0317290 |
BRACKET, Port, rear |
| 31 |
0317291 |
BRACKET, Starboard, rear |
| 32 |
0300646 |
VIS, ancrage |
| 33 |
0313839 |
BRACKET, Cover, port |
| 34 |
0313840 |
BRACKET, Cover, starboard |
| 35 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 36 |
0308995 |
SCREW, Front mount |
| 38 |
0329241 |
RONDELLE This part replaces 0306482. |
| 39 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 40 |
0302406 |
SLEEVE |
| 41 |
0318468 |
SCRAEW, Latch to handle |
| 42 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0318313. |
| 43 |
0310539 |
SCREW, Clamp choke solenoid |
| 44 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 45 |
0313117 |
SCR,Clamp,eng cable |
| 46 |
0309021 |
SCREW, Condenser to regulator |
| 47 |
0384338 |
HANDLE & SHAFT ASSY. |
| 75 |
293150104 |
Pop Rivet 3/16 |
| 80 |
517124300 |
Washer |
| 110 |
293720101 |
Grommet |
| 200 |
520001302 |
Rear Light |
| 1000 |
520002343 |
RH Front Reflector |
| 1010 |
520002344 |
LH Front Reflector |
| 1300 |
520003528 |
Amber, LH/RH Rear Reflector This part replaces 705016306. |
| 1310 |
705016307 |
Yellow, LH Reflector |
| 1320 |
520002649 |
RH Support Tape |
| 1330 |
520002650 |
LH Support Tape |
| 1400b |
520001815 |
Key |
| 1400c |
529017500 |
Rope Starter |
| 3600b |
520001632 |
Hitch Support |
| 3600c |
520001243 |
Hitch Fastening Plate |
| 3600d |
520001288 |
Sleeve |
| 3600f |
205484546 |
Socket Head Screw M8 X 45 |
| 3600g |
207782544 |
Carriage Bolt, M8 X 25 |
| 3600h |
233281414 |
Hex. Flange Elastic Nut M8 |
| 3600j |
28056 |
Cover |
| 0388370 |
0388370 |
DECAL SET |
| 0388371 |
0388371 |
DECAL SET |
