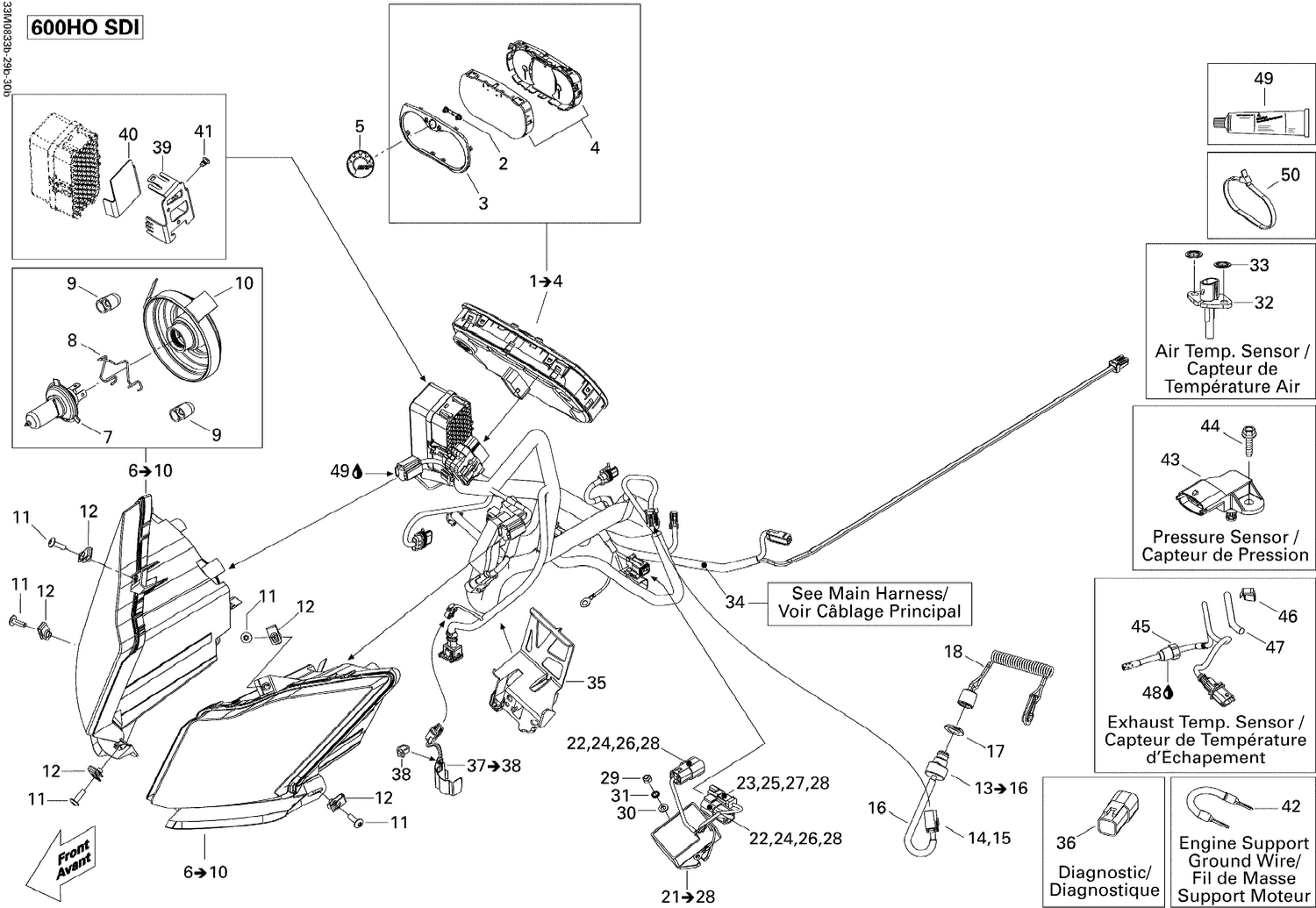

| Ref | Part Number | Description |
|---|
| 2 |
415129355 |
Speedometer Button This part replaces 415129347. |
| 3 |
415129348 |
Gauge Ring |
| 4 |
415129349 |
Lens |
| 5 |
516006224 |
BRP Logo 20MM x 2MM This part replaces 219902677. |
| 7 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 8 |
Not |
Available As Spare Part - Bulb Holder |
| 9 |
515176498 |
Cap |
| 10 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 11 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 12 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 14 |
515175232 |
Male Terminal |
| 15 |
515175494 |
Male Housing, 3 Circuits |
| 16 |
409902000 |
Tubing 12 mm |
| 17 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 18 |
515178284 |
DESS This part replaces 515176461. |
| 22 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 23 |
278001674 |
Mâle Terminal Housing, 2 Circuits |
| 24 |
515175568 |
Male Terminal |
| 25 |
278000631 |
Male Terminal |
| 26 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 27 |
278001672 |
Male Lock, 2 Circuits |
| 28 |
293000052 |
Sealing Cap |
| 29 |
232561414 |
Elastic Stop Nut M6 |
| 30 |
234061410 |
Flat Washer 6 mm |
| 31 |
234461608 |
External Serrated Lock Washer 6 mm |
| 32 |
515176366 |
Air Temperature Sensor |
| 33 |
389804300 |
Push Nut |
| 34 |
515176603 |
MAIN HARNESS ASS'Y - Call your local BRP dealership |
| 35 |
515176513 |
BRACKET - Call your local BRP dealership |
| 36 |
278002704 |
Diagnostic Connector This part replaces 278002148. |
| 38 |
293750001 |
Tie Wrap 94 mm |
| 39 |
515177549 |
Fuse Support - Call Your Local BRP Dealership This part replaces 515176514. |
| 40 |
515176637 |
PROTECTOR - Call your local BRP dealership |
| 41 |
390909200 |
Avex Rivet |
| 42 |
515176358 |
Ground Wire |
| 43 |
707000995 |
Pressure And Temperature Sensor This part replaces 420874650. |
| 44 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 45 |
514054641 |
Temperature Sensor This part replaces 515176490. |
| 46 |
414227300 |
Clip |
| 47 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 48 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 49 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 50 |
293750001 |
Tie Wrap 94 mm |
| 50 |
293750002 |
Tie Wrap 142 mm |
| 50 |
414115200 |
Tie-Rap 180 mm |
