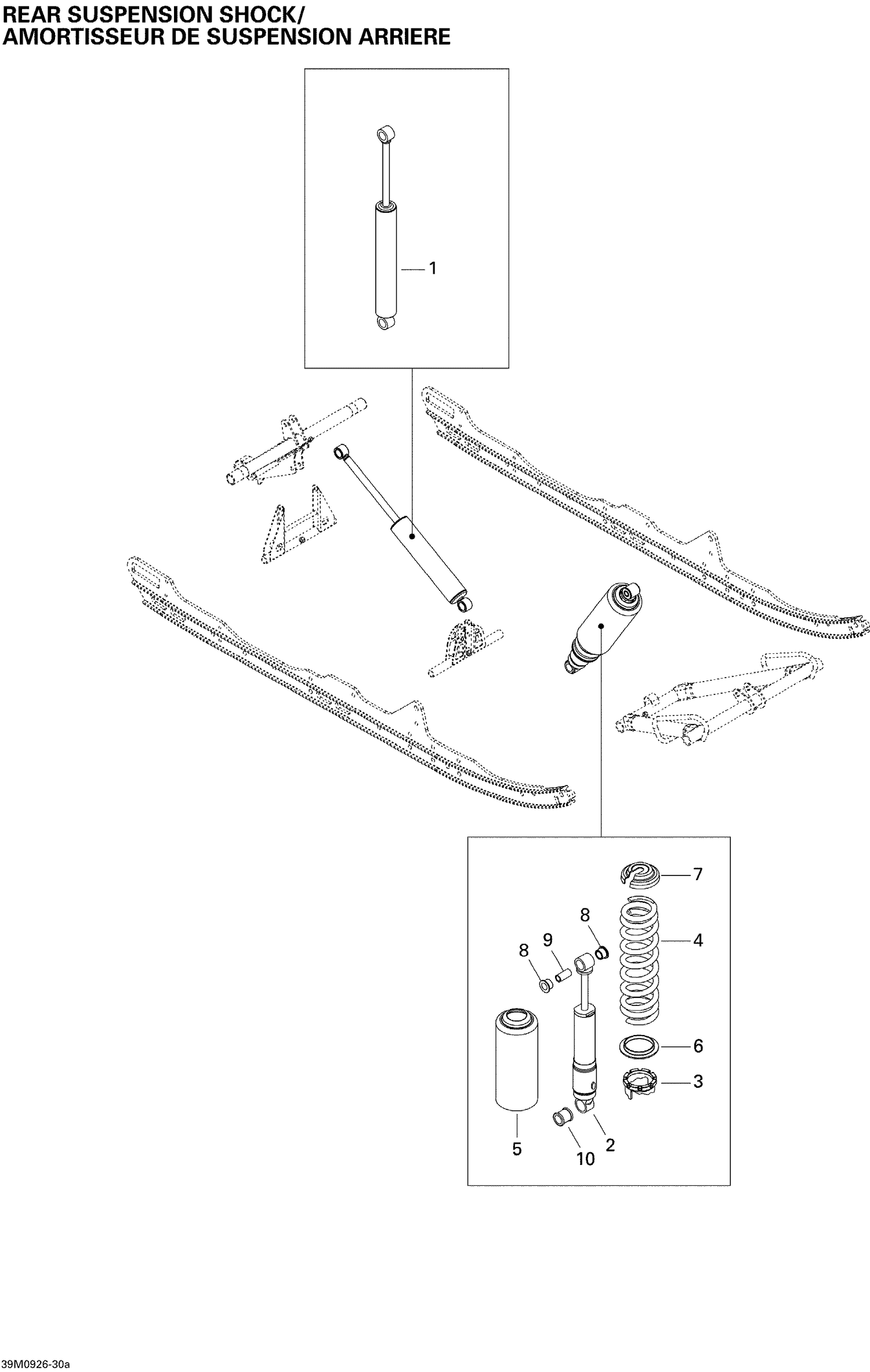

08- Rear Suspension Shocks STD
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503191487 | Rear Shock |
| 2 | 503191468 | CENTER SHOCK - Call your local BRP dealership |
| 3 | 505073625 | Adjustment Cam This part replaces 505070150. |
| 4 | 503189325 | SPRING - Call your local BRP dealership |
| 5 | 503193663 | Protector This part replaces 503191126. |
| 6 | 503191872 | Spring Guide |
| 7 | 706200881 | Spring Stopper |
| 8 | 503189117 | Cushion |
| 9 | 503189282 | Bushing |
