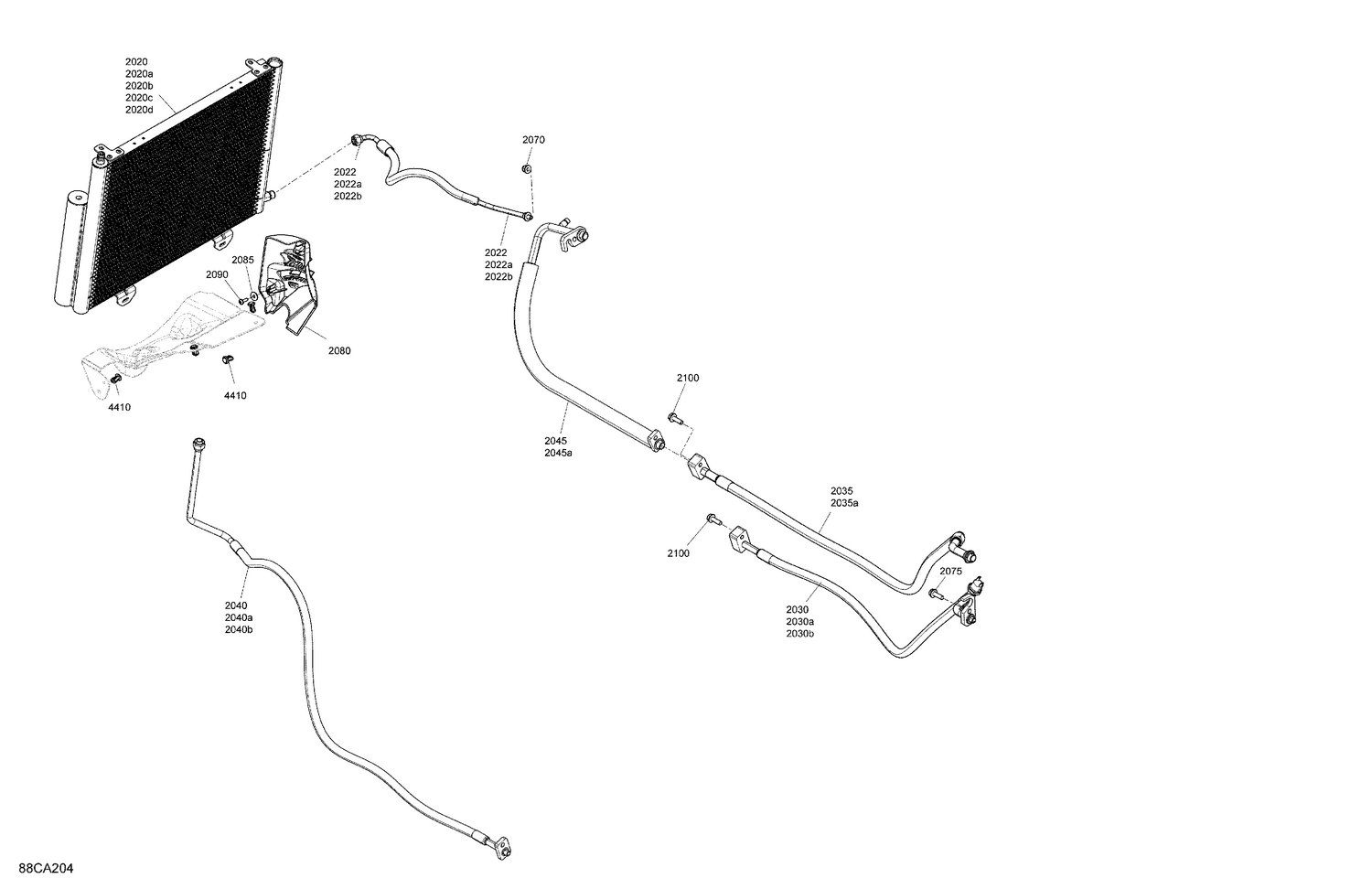

07- Body - Enclosure Cab - Air Conditioner System
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2020 | 520001931 | Condenser |
| 2020a | 715900678 | Plastic Cap |
| 2020b | 715900671 | O-Ring |
| 2020c | 715900672 | Dessicant Cartridge |
| 2020d | 715900679 | Plug |
| 2022 | 705800531 | Hose |
| 2022a | 715900665 | Sealing Washer #6 |
| 2022b | 715900687 | O-Ring |
| 2030 | 705800521 | Compressor Hose |
| 2030a | 715900666 | Sealing Washer #8 |
| 2030b | 715900673 | Pressure Switch |
| 2035 | 705800522 | Compressor Hose |
| 2035a | 715900667 | Sealing Washer #12 |
| 2040 | 705800523 | Compressor Hose |
| 2040a | 715900669 | O-Ring |
| 2040b | 715900666 | Sealing Washer #8 |
| 2045 | 705800524 | Compressor Hose |
| 2045a | 715900667 | Sealing Washer #12 |
| 2070 | 233281416 | Hex. Elastic Flange Nut M8 |
| 2075 | 207682534 | Hex. Flange Screw M8 X 25 |
| 2080 | 705800779 | Hose Support |
| 2085 | 234062670 | Stainless Steel Flat Washer |
| 2090 | 250000720 | Torx Screw K50 X 16 |
| 2100 | 207682534 | Hex. Flange Screw M8 X 25 |
