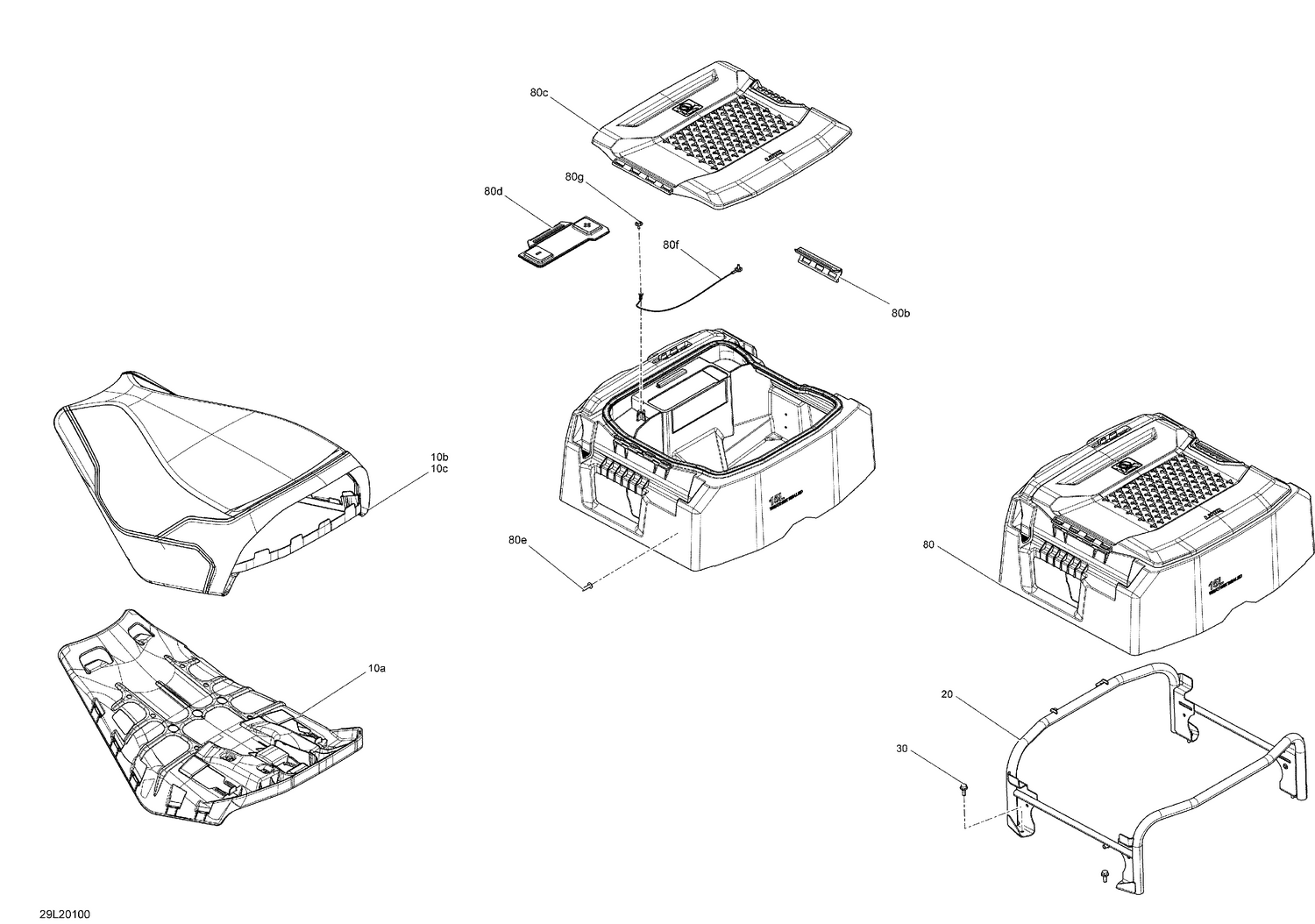

09- Seat - Main Section - STD
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510006721 | Seat Base |
| 10b | 510008182 | Front Foam Seat This part replaces 510006722. |
| 10c | 510006724 | Seat Cover |
| 20 | 510007010 | Seat Support Ass'y |
| 30 | 207661644 | Hex. Flange Screw M6 X 16 |
| 80b | 269502449 | Latch This part replaces 269502402. |
| 80c | 511001274 | Box Cover |
| 80d | 510006789 | Access Cover |
| 80e | 250000724 | Torx Screw M5 X 20 |
| 80f | 293750092 | Retaining Cable |
