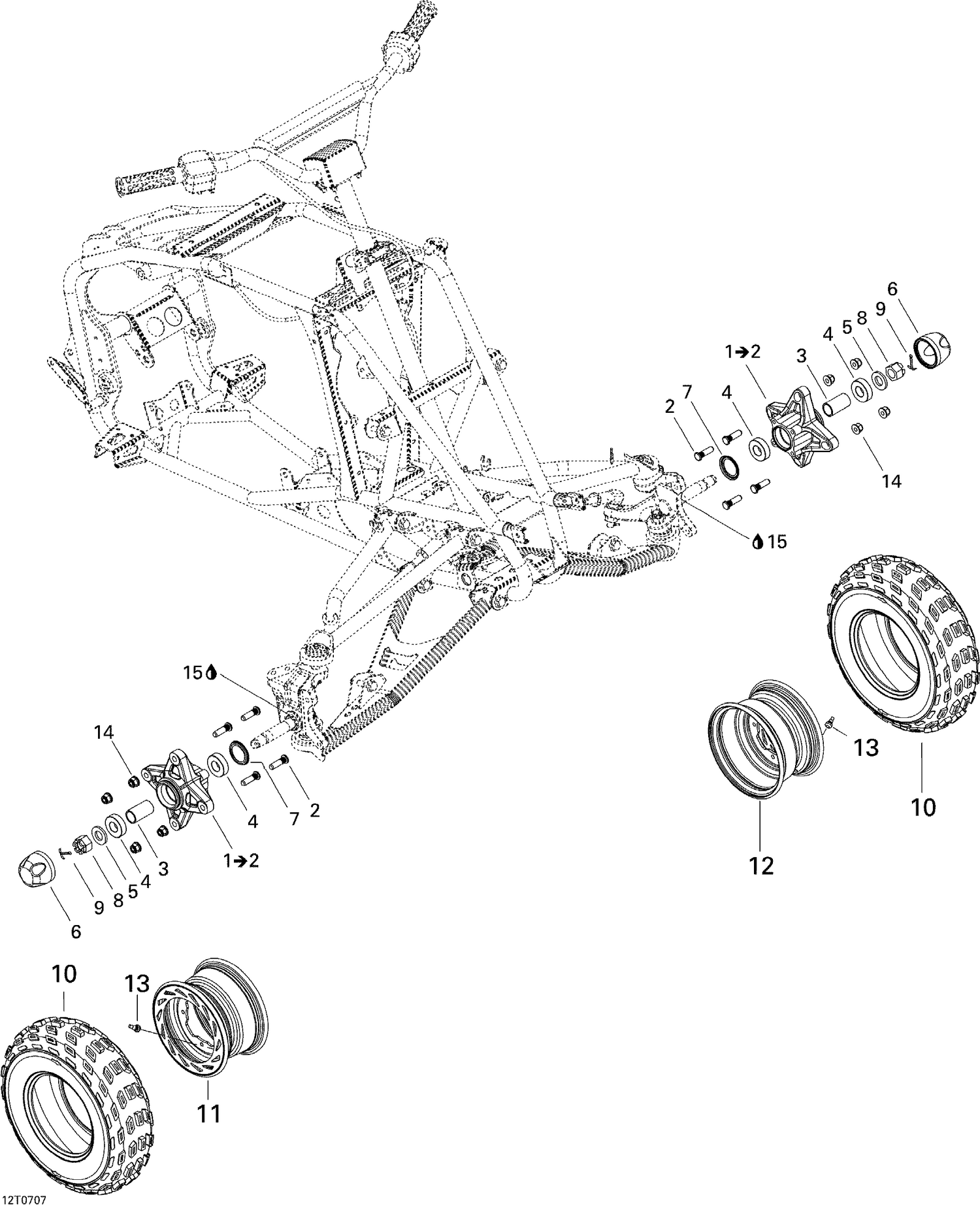

| Ref | Part Number | Description |
|---|
| 2 |
250000138 |
WHEEL STUD - Call your local BRP dealership |
| 3 |
293900043 |
INSIDE BUSHING - Call your local BRP dealership |
| 4 |
293350036 |
BALL BEARING - Call your local BRP dealership |
| 5 |
250200019 |
WASHER - Call your local BRP dealership |
| 6 |
705400012 |
WHEEL CAP - Call your local BRP dealership |
| 7 |
293250094 |
SEAL - Call your local BRP dealership |
| 8 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 9 |
371003400 |
Cotter Pin This part replaces 211400011. |
| 10 |
705400136 |
FRONT TIRE - Call your local BRP dealership |
| 11 |
705400137 |
RH FRONT RIM - Call your local BRP dealership |
| 12 |
705400140 |
LH Front Rim |
| 13 |
705400193 |
Rim Valve With Cap |
| 14 |
250100105 |
Flange Nut M10 This part replaces 732610084. |
