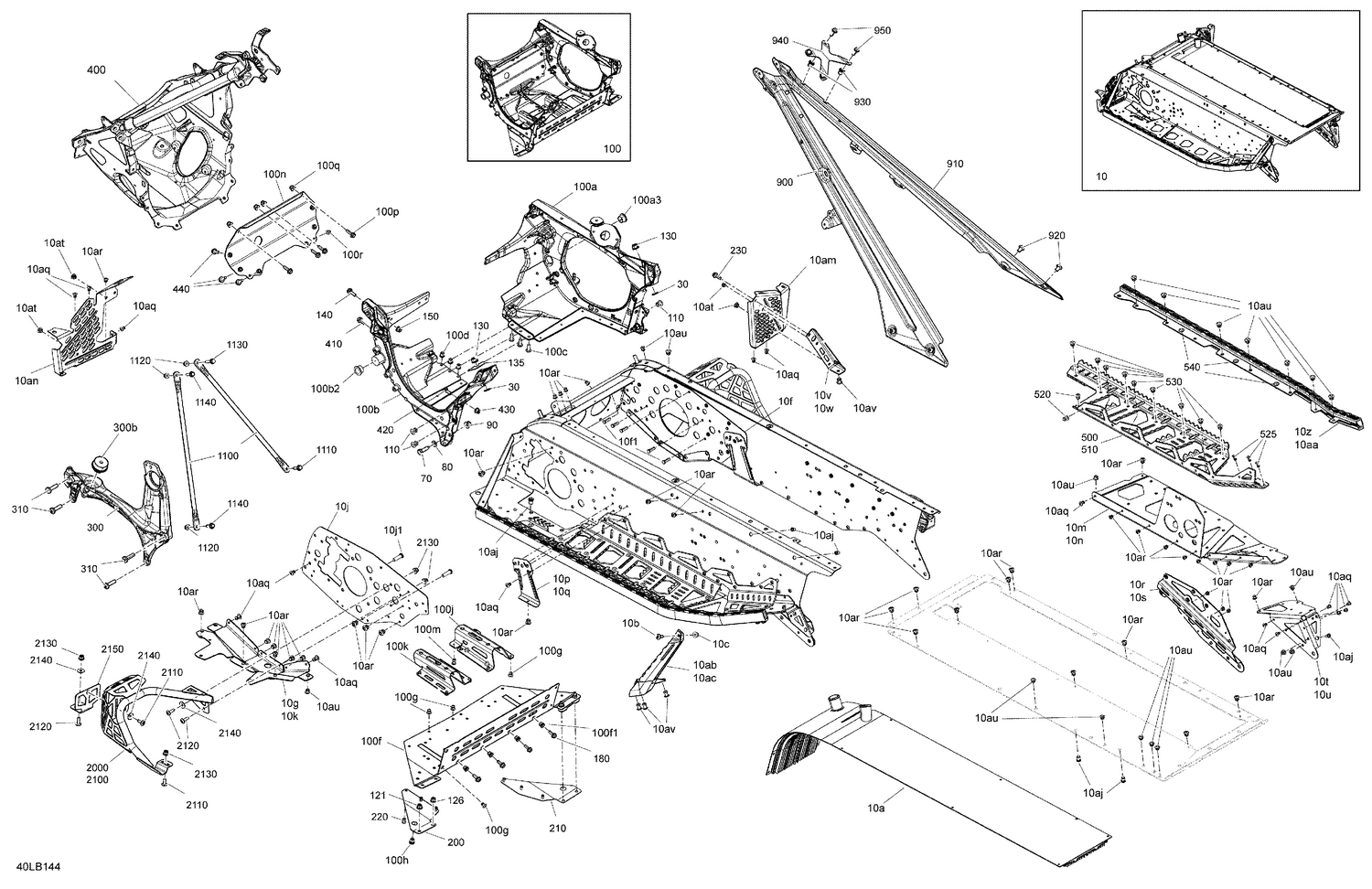

| Ref | Part Number | Description |
|---|
| 10a |
518331680 |
Radiator Tunnel |
| 10aa |
518330590 |
Roller LH |
| 10ab |
518330161 |
RH Roller Link |
| 10ac |
518330160 |
LH Roller Link |
| 10aj |
605636003 |
Clinch Nut M6 Hexsert |
| 10am |
518330593 |
RH Footrest RS |
| 10an |
518330594 |
LH Footrest RS |
| 10aq |
390909100 |
Avex Rivet |
| 10ar |
390909200 |
Avex Rivet |
| 10at |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10au |
293150174 |
Hemlock Rivet, 6.5 mm |
| 10av |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 10b |
250000717 |
Torx Head Screw M6 X 16 |
| 10c |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 10f1 |
250300027 |
Clinch Stud M6 X 20 |
| 10g |
518330578 |
Footrest Reinforcement Rs RH |
| 10j1 |
250300027 |
Clinch Stud M6 X 20 |
| 10k |
518330581 |
Footrest Reinforcement Rs LH |
| 10m |
518332726 |
LH Angle Reinforcement |
| 10n |
518332727 |
RH Angle Reinforcement |
| 10p |
518334069 |
Front Suspension Arm Reinforcement |
| 10q |
518334070 |
LH Front Suspension Arm Reinforcement |
| 10r |
518332728 |
LH Rear Arm Reinforcement |
| 10s |
518332729 |
RH Rear Arm Support |
| 10t |
518332730 |
LH Rear Support |
| 10u |
518332731 |
RH Rear Support |
| 10v |
518331176 |
LH Reinforcement Chassis |
| 10w |
518331177 |
Reinforcement Chassis RH |
| 10z |
518330591 |
Roller RH |
| 30 |
506151252 |
Washer |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a3 |
505072690 |
Leg Bushing |
| 100b2 |
505072690 |
Leg Bushing |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100f1 |
605636003 |
Clinch Nut M6 Hexsert |
| 100g |
390909100 |
Avex Rivet |
| 100h |
293450268 |
Insert M5 X 0.8 |
| 100j |
518329814 |
RH Cross Link |
| 100k |
518330641 |
LH Cross Link |
| 100m |
293150163 |
Rivet Hucklok |
| 100n |
518330100 |
Front Member |
| 100p |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100q |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100r |
390909100 |
Avex Rivet |
| 110 |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 121 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 126 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 135 |
518331826 |
Plate RS EMOD |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 200 |
518331245 |
LH Under Reinforcement |
| 210 |
518331246 |
RH Under Reinforcement |
| 220 |
293150163 |
Rivet Hucklok |
| 230 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 300b |
512061284 |
Rubber Mount |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 400 |
518333914 |
Chassis Suspension Module Kit |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 420 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 440 |
207661636 |
Hex. Flange Screw M6 X 16 |
| 500 |
518332080 |
Black - Reinforcement Frame LH |
| 510 |
518332081 |
Black - Reinforcement Frame RH |
| 520 |
390909200 |
Avex Rivet |
| 525 |
390909100 |
Avex Rivet |
| 530 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 540 |
293150266 |
Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 900 |
518334157 |
Full Moon,LH Diagonal Cross Member Ass'y |
| 910 |
518334158 |
Full Moon,RH Diagonal Cross Member Ass'y |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 930 |
293450275 |
Insert |
| 940 |
518329499 |
Brace Rear Member |
| 950 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 1100 |
518329974 |
Upper Colomn Support |
| 1110 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 1120 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1130 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 2000 |
518330907 |
Black, RH Footrest Ass'y |
| 2100 |
518330908 |
Black, LH Footrest Ass'y |
| 2110 |
250000721 |
Torx Truss Screw M6 X 16 |
| 2120 |
250000722 |
Torx Truss Screw M6 x 20 |
| 2130 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 2140 |
20117 |
Washer |
