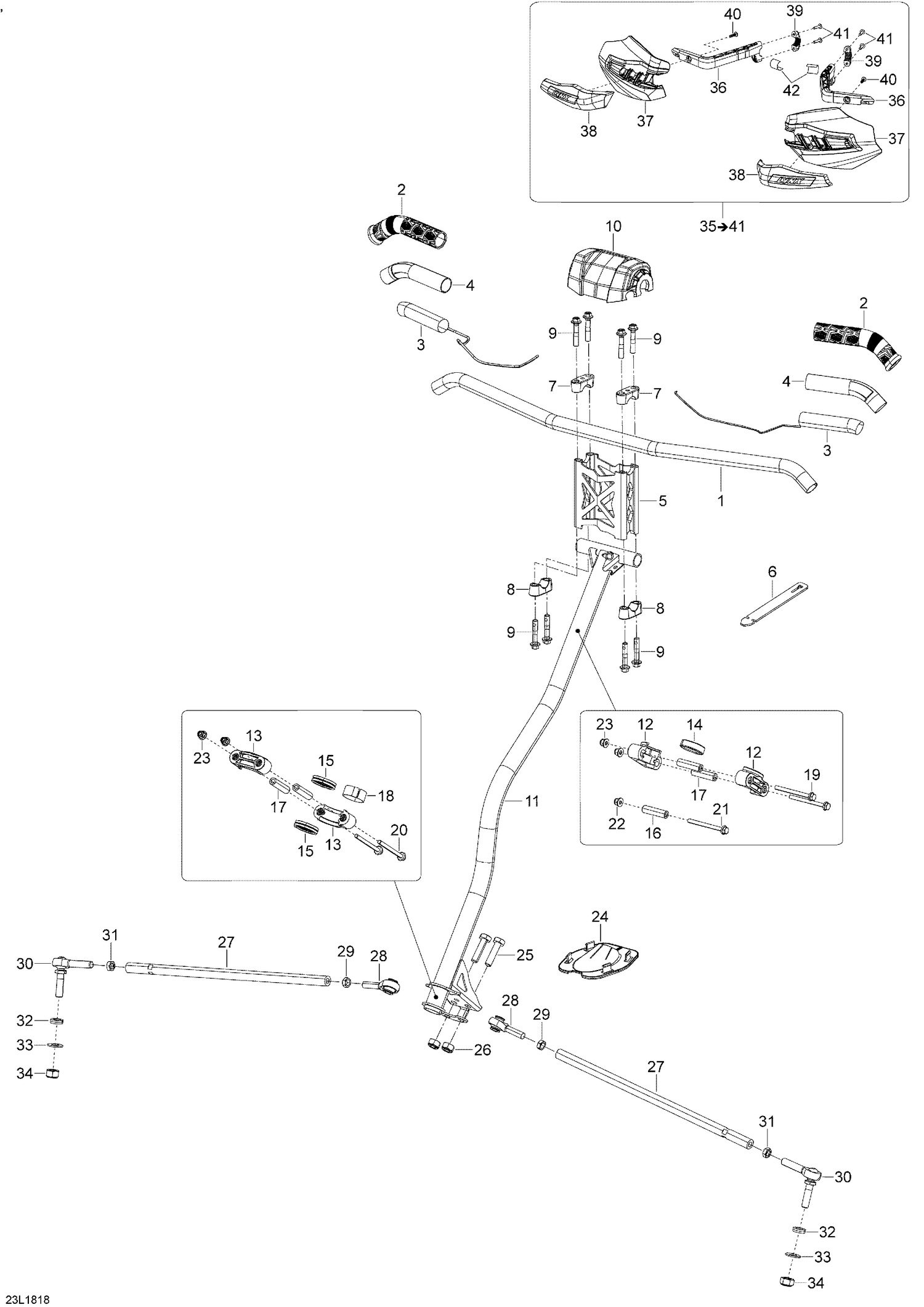

07- Steering XTRIM - 600HO E-TEC
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 293850117 | Rubber Strap |
| 7 | 506152751 | Steering Support |
| 8 | 506152751 | Steering Support |
| 9 | 250000352 | Hex. Flange Screw M8 X 40 |
| 10 | 506152553 | Steering Pad |
| 11 | 506152962 | Steering Column |
| 12 | 506152508 | Upper Half-Housing |
| 13 | 506152217 | Lower Half-Housing |
| 14 | 506152509 | Upper Anti-Vibration Gasket |
| 15 | 506152518 | Lower Vibration Ring |
| 16 | 506152297 | Housing Bushing |
| 17 | 506152297 | Housing Bushing |
| 19 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 20 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 21 | 207667056 | Hex. Flange Screw M6 x 70 This part replaces 207667086. |
| 22 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 23 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 24 | 506152163 | Plate |
| 25 | 207004044 | Hex. Screw M10 X 40 |
| 26 | 232500416 | Elastic Stop Nut M10 |
| 27 | 506152498 | Tie-Rod |
| 28 | 506152081 | LH Thread Ball Joint |
| 29 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 30 | 506152684 | RH Thread Ball Joint |
| 31 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 33 | 506152582 | Washer |
