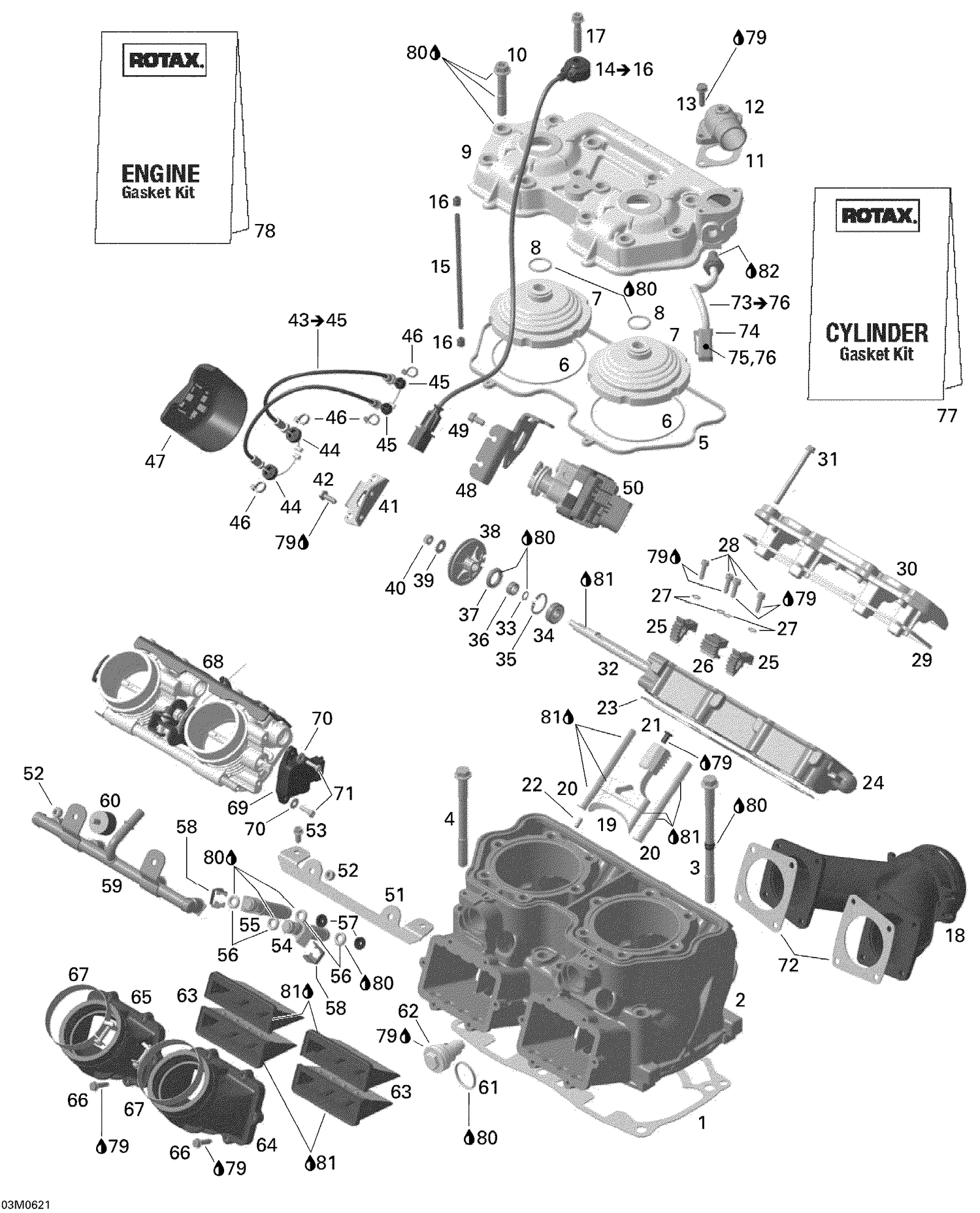

| Ref | Part Number | Description |
|---|
| 1 |
420630460 |
GASKET 1.0 MM - Call your local BRP dealership |
| 1 |
420630461 |
GASKET 1.1 MM - Call your local BRP dealership |
| 1 |
420630462 |
GASKET 1.2 MM - Call your local BRP dealership |
| 1 |
420630463 |
GASKET 1.3 MM - Call your local BRP dealership |
| 2 |
420613746 |
CYLINDER - Call your local BRP dealership |
| 3 |
420641762 |
Hex. Flange Screw M10 X 150 |
| 4 |
420641772 |
HEX. FLANGED SCREW M10 X 115 - Call your local BRP dealership |
| 5 |
420630451 |
GASKET - Call your local BRP dealership |
| 6 |
420630630 |
O-RING - Call your local BRP dealership |
| 7 |
420613730 |
Combustion Chamber |
| 8 |
420430373 |
O-Ring This part replaces 420430370. |
| 9 |
420613720 |
CYLINDER HEAD COVER - Call your local BRP dealership |
| 10 |
420940142 |
TORX FLANGE SCREW M10 X 55 - Call your local BRP dealership |
| 11 |
420850339 |
Gasket This part replaces 420850338. |
| 12 |
420822080 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 13 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 15 |
420460010 |
TUBE - Call your local BRP dealership |
| 16 |
420960890 |
CLIP - Call your local BRP dealership |
| 17 |
420440862 |
TORX FLANGE SCREW M8 X 35 - Call your local BRP dealership |
| 18 |
420673150 |
EXHAUST MANIFOLD - Call your local BRP dealership |
| 19 |
420854730 |
MAIN EXHAUST VALVE - Call your local BRP dealership |
| 20 |
420854740 |
Side Exhaust Valve |
| 21 |
420960390 |
STOPPER - Call your local BRP dealership |
| 22 |
420929650 |
Drive Pin 5 X 10 |
| 23 |
420630690 |
GASKET - Call your local BRP dealership |
| 24 |
420854761 |
VALVE HOUSING - Call your local BRP dealership |
| 25 |
420834655 |
DRIVE GEAR - Call your local BRP dealership |
| 26 |
420834650 |
DRIVE GEAR - Call your local BRP dealership |
| 27 |
420939440 |
SPRING WASHER - Call your local BRP dealership |
| 28 |
420840514 |
Allen Screw M5 x 16 This part replaces 420840511. |
| 29 |
420631532 |
GASKET - Call your local BRP dealership |
| 30 |
420854770 |
VALVE COVER - Call your local BRP dealership |
| 31 |
420440602 |
Hex. Flange Screw M6 X 65 |
| 32 |
420837700 |
DRIVE SHAFT - Call your local BRP dealership |
| 33 |
420230990 |
O-RING - Call your local BRP dealership |
| 34 |
420832830 |
BALL BEARING - Call your local BRP dealership |
| 35 |
420245480 |
RETAINING RING - Call your local BRP dealership |
| 36 |
420947360 |
DISTANCE SLEEVE - Call your local BRP dealership |
| 37 |
420430102 |
O-RING - Call your local BRP dealership |
| 38 |
420980710 |
CABLE ACTUATOR - Call your local BRP dealership |
| 39 |
420939450 |
SPRING WASHER - Call your local BRP dealership |
| 40 |
232561414 |
Elastic Stop Nut M6 |
| 41 |
420853052 |
CABLE SUPPORT - Call your local BRP dealership |
| 42 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 44 |
420460350 |
Cap |
| 45 |
420960773 |
CAP - Call your local BRP dealership |
| 46 |
293750001 |
Tie Wrap 94 mm This part replaces 420866718. |
| 47 |
420812630 |
RAVE COVER - Call your local BRP dealership |
| 48 |
420851920 |
PLATE - Call your local BRP dealership |
| 49 |
420841580 |
Hex. Screw M6 X 8 |
| 50 |
420889430 |
E-RAVE ACTUATOR - Call your local BRP dealership |
| 51 |
420851893 |
RETAINING PLATE - Call your local BRP dealership |
| 52 |
232561414 |
Elastic Stop Nut M6 |
| 53 |
420440147 |
Hex. Flange Screw M6 X 12 This part replaces 420440142. |
| 54 |
420874485 |
Fuel Injectors |
| 55 |
420874480 |
FUEL INJECTOR - Call your local BRP dealership |
| 56 |
420631220 |
O-Ring |
| 58 |
420851800 |
CLIP - Call your local BRP dealership |
| 59 |
420874470 |
Fuel Rail Ass'y |
| 60 |
420960065 |
STOPPER - Call your local BRP dealership |
| 61 |
420430060 |
O-ring |
| 62 |
420231135 |
Deco Insert |
| 63 |
420924798 |
Reed Valve Ass'y This part replaces 420924790. |
| 64 |
420667065 |
CARBURATOR SOCKET, MAG - Call your local BRP dealership |
| 65 |
420667060 |
CARBURATOR SOCKET, PTO - Call your local BRP dealership |
| 66 |
420841555 |
Hex. Tapping Screw M5 X 20 |
| 67 |
420851810 |
CLAMP - Call your local BRP dealership |
| 68 |
420889194 |
Throttle Body |
| 69 |
420866120 |
Position Sensor This part replaces 270000251. |
| 70 |
234041600 |
Flat Washer 4 mm, Stainless |
| 71 |
208641660 |
Phillips Screw M4 X 16 |
| 72 |
420630820 |
GASKET - Call your local BRP dealership |
| 74 |
278000739 |
Male Connector, 4 Circuits |
| 75 |
278000632 |
Female Terminal |
| 76 |
515175677 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 77 |
420891136 |
CYLINDER GASKET SET - Call your local BRP dealership |
| 78 |
420891131 |
Engine Gasket Set |
| 79 |
293800060 |
Loctite 243, 10 ml |
| 80 |
413707000 |
Dow Corning 111, 150 g |
| 81 |
Not |
Available As Spare Part - Engine Oil, Mineral, API SJ SAE 10W40 |
