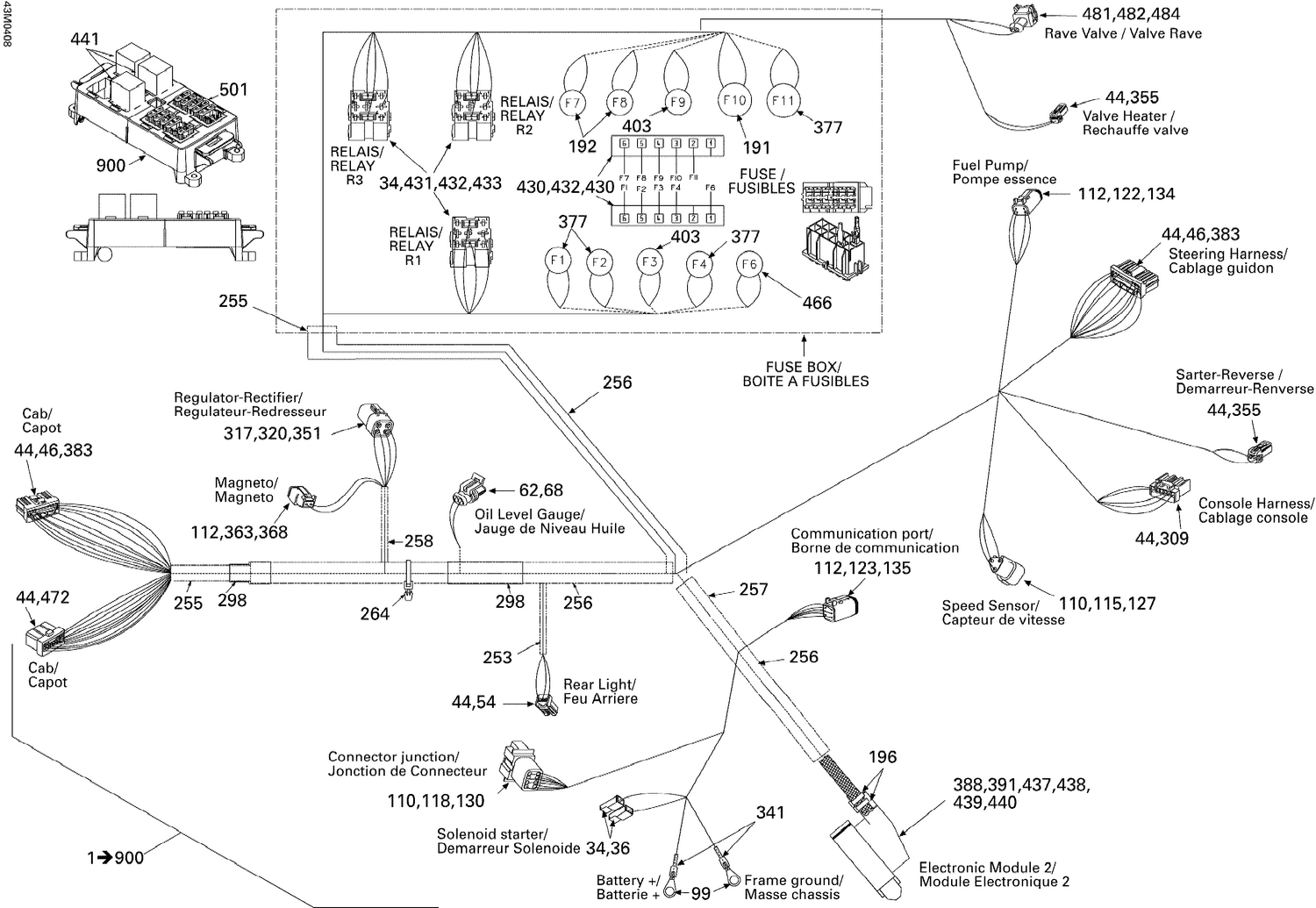

| Ref | Part Number | Description |
|---|
| 34 |
409010100 |
Female Terminal |
| 36 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 44 |
515175231 |
Female Terminal |
| 46 |
515175282 |
Female Terminal |
| 54 |
515175495 |
Female Housing, 3 Circuits |
| 62 |
278001014 |
Female Terminal |
| 69 |
409209500 |
Female Housing, 2 Circuits |
| 99 |
278000992 |
Open Barrel |
| 110 |
278000631 |
Male Terminal |
| 112 |
278000632 |
Female Terminal |
| 115 |
278002378 |
Male Housing This part replaces 409207000. |
| 118 |
278001742 |
CONNECTOR 6 CAVITIES - Call your local BRP dealership |
| 122 |
278000739 |
Male Connector, 4 Circuits |
| 123 |
710001540 |
CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736. |
| 127 |
409207600 |
Male Lock, 3 Circuits |
| 130 |
515175276 |
LOCK MALE, 8 CIRCUITS - Call your local BRP dealership |
| 134 |
278000738 |
Male Lock, 4 Circuits |
| 135 |
278000737 |
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 138 |
293000052 |
Sealing Cap |
| 191 |
410917200 |
Fuse, 30 Amperes |
| 192 |
409003900 |
Fuse, 20 Amperes |
| 196 |
293750002 |
Tie Wrap 142 mm |
| 206 |
409004200 |
Female Terminal |
| 253 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 255 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 256 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 257 |
219704398 |
Was 409901600 Tubing 19mm |
| 258 |
219704407 |
Tubing 10 MM 1000MM Long |
| 264 |
515175220 |
Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 298 |
293740005 |
Tape |
| 309 |
515175543 |
Female Terminal Housing, 6 Circuits |
| 317 |
278001473 |
Female Terminal Housing, 4 Circuits |
| 319 |
515175568 |
Male Terminal |
| 320 |
515175567 |
Female Terminal |
| 341 |
Not |
Available As Spare Part - Tubing Shrink |
| 351 |
278001474 |
Female Lock, 4 Circuits |
| 355 |
515175658 |
Female Housing, 2 Circuits |
| 363 |
515175670 |
Female Terminal Housing, 2 Circuits |
| 368 |
515175675 |
Female Lock, 2 Circuits |
| 377 |
278000344 |
Fuse, 5 Amperes |
| 383 |
515175719 |
FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 387 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 388 |
278001750 |
FEMALE TERMINAL - Call your local BRP dealership |
| 391 |
Not |
Available As Spare Part - Battery 19 amperes |
| 403 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 430 |
515175857 |
FUSE HOLDER - Call your local BRP dealership |
| 431 |
515175856 |
RELAY HOLDER - Call your local BRP dealership |
| 432 |
515175855 |
FEMALE TERMINAL - Call your local BRP dealership |
| 433 |
515175854 |
FEMALE TERMINAL - Call your local BRP dealership |
| 436 |
515175881 |
Female Terminal |
| 437 |
515175886 |
SEAL - Call your local BRP dealership |
| 438 |
515175883 |
Latch |
| 439 |
515175884 |
LOCK - Call your local BRP dealership |
| 440 |
515175885 |
COVER - Call your local BRP dealership |
| 441 |
515177672 |
Relais *Relay This part replaces 410113604. |
| 466 |
415128525 |
Fuse, 0.5 Ampere |
| 472 |
415128527 |
Female Terminal Housing |
| 481 |
415128500 |
Female Terminal Housing, 2 Circuits |
| 482 |
278000998 |
Female Terminal This part replaces 415128502. |
| 484 |
415128501 |
Seal |
| 501 |
515175739 |
Fuse Box Base |
