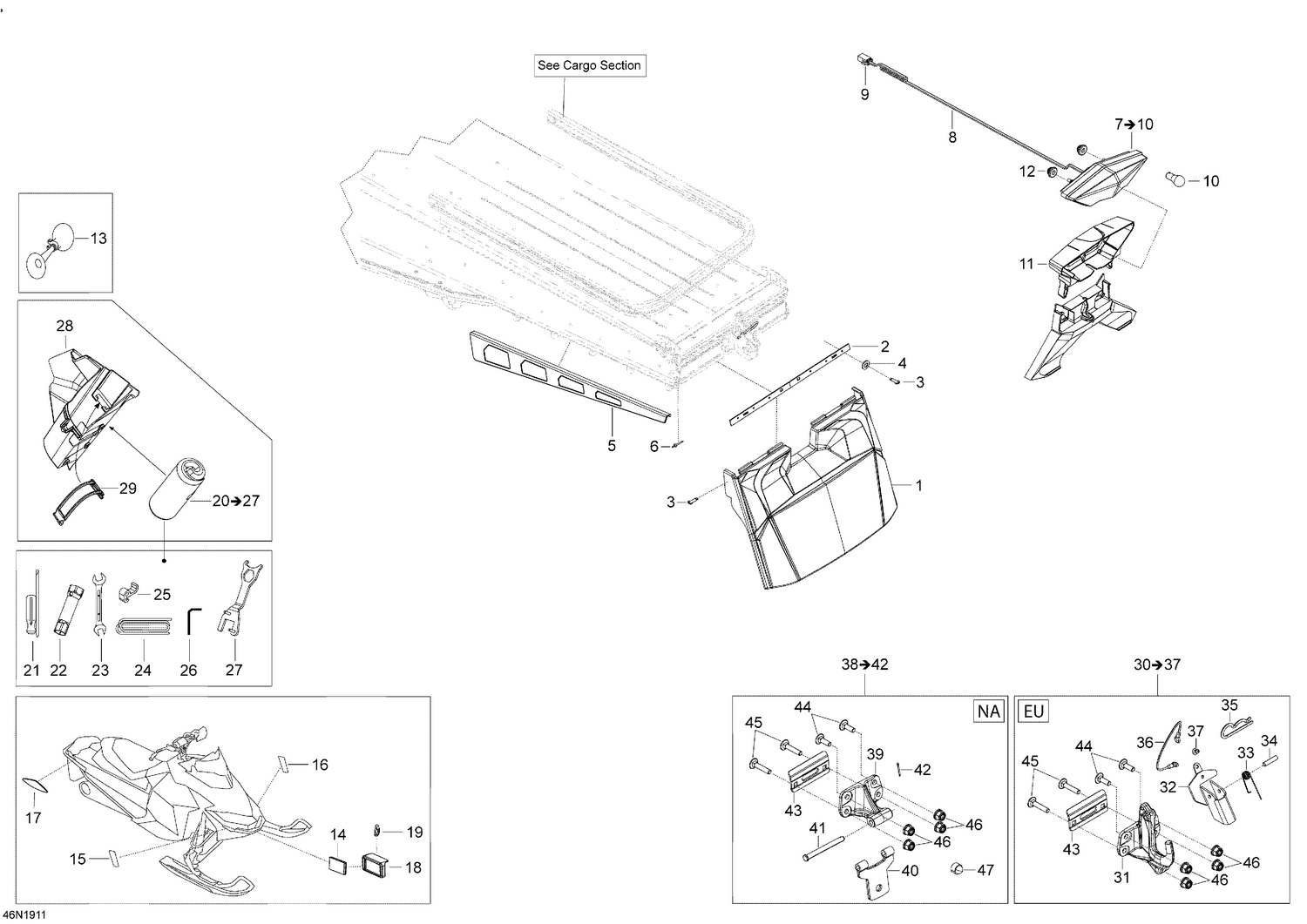

09- Utilities - 550F - Europe
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 250000676 | Forming Screw M5 x 16 |
| 4 | 250200025 | Washer M5 |
| 5 | 520000693 | RH Protector |
| 5 | 520000694 | LH Protector |
| 6 | 293150163 | Rivet Hucklok |
| 8 | 520000677 | Wiring Harness Ass'y |
| 10 | 520000758 | Bulb |
| 11 | 511000764 | Rear Light Cover |
| 12 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 13 | 549011291 | Horn |
| 14 | 21118 | Reflector (Bright) |
| 15 | 520001600 | Yellow, RH Reflector |
| 16 | 520001601 | Yellow, LH Reflector |
| 17 | 705002423 | Amber, Lateral Reflector |
| 18 | 520000871 | Deep Black, Reflector Support |
| 19 | 27120 | TIE RAP - Call your local BRP dealership |
| 28 | 520000894 | Tool Kit Rack |
| 29 | 520000528 | Latch |
| 32 | 520001775 | Locking Plate |
| 34 | 520001810 | Clevis Pin |
| 35 | 41029 | Hair pin |
| 37 | 390909100 | Avex Rivet |
| 43 | 520000727 | Plate |
| 44 | 207782544 | Carriage Bolt, M8 X 25 |
| 45 | 207784044 | Bolt Carriage M8 X 40 |
| 46 | 233281414 | Hex. Flange Elastic Nut M8 |
