| Ref | Part Number | Description |
|---|
| 1 |
5030624 |
ANODE |
| 2 |
5030674 |
MANIFOLD, Intake |
| 3 |
5030675 |
GASKET, Inlet manifold |
| 4 |
5030121 |
CUSHION |
| 5 |
5030678 |
COVER, Manifold |
| 6 |
5030679 |
BOOT, Shift rod |
| 7 |
5030681 |
SCREW |
| 8 |
5030682 |
SOLENOID |
| 9 |
5030684 |
FLANGE, Solenoid |
| 10 |
5030685 |
HOLDER, Solenoid |
| 10 |
516010651 |
BRP Logo 20 MM x 2 MM |
| 11 |
5030683 |
SEAT, Solenoid |
| 12 |
5030750 |
SILENCER, IAC Valve |
| 13 |
5030751 |
CLAMP, ISC SILENCER |
| 14 |
5030411 |
SCREW, Anode |
| 15 |
5030509 |
PIN |
| 15 |
704909041 |
Emblem Logo BRP 68 MM UV |
| 16 |
HOSE, |
Manifold to tee, 3 1/2 in. (90mm) |
| 17 |
HOSE, |
Case to case, 2 3/8 in. (60mm) |
| 18 |
HOSE, |
Tee to separator, 9 3/4 in. (250mm) |
| 19 |
HOSE, |
Separator to tee, 8 5/8 in. (220mm) |
| 20 |
HOSE, |
Tee to case, 8 1/4 in. (210mm) |
| 21 |
HOSE, |
Tee to oil pan, 9 1/2 in. (240mm) |
| 22 |
HOSE, |
Holder to manifold, 15 3/4 in. (400mm) |
| 23 |
HOSE, |
Case to tee, 19 1/2 in. (500mm) |
| 24 |
HOSE, |
Manifold to silencer, 17 1/4 in. (440mm ) |
| 25 |
HOSE, |
Silencer, 25 3/8 in. (620mm) |
| 29 |
5030979 |
BOLT, STUD |
| 30 |
5030980 |
BOLT, STUD |
| 30 |
704909040 |
Emblem BRP Logo 48 MM UV |
| 34 |
5030005 |
SCREW, Lever |
| 35 |
5031010 |
SCREW |
| 37 |
5030987 |
BOLT |
| 38 |
5030135 |
BRIDE This part replaces 5030346. |
| 39 |
5031070 |
ARRESTER, FLAME |
| 40 |
5030688 |
SILENCER |
| 41 |
5030689 |
COVER, Silencer |
| 42 |
5031152 |
HOLDER, Flame arrester |
| 43 |
5031153 |
SEAL, Silencer |
| 44 |
5031071 |
BAND, Silencer cover |
| 45 |
5030387 |
BOLT (8X105mm) |
| 46 |
5030472 |
GROMMET |
| 47 |
5030556 |
CUSHION |

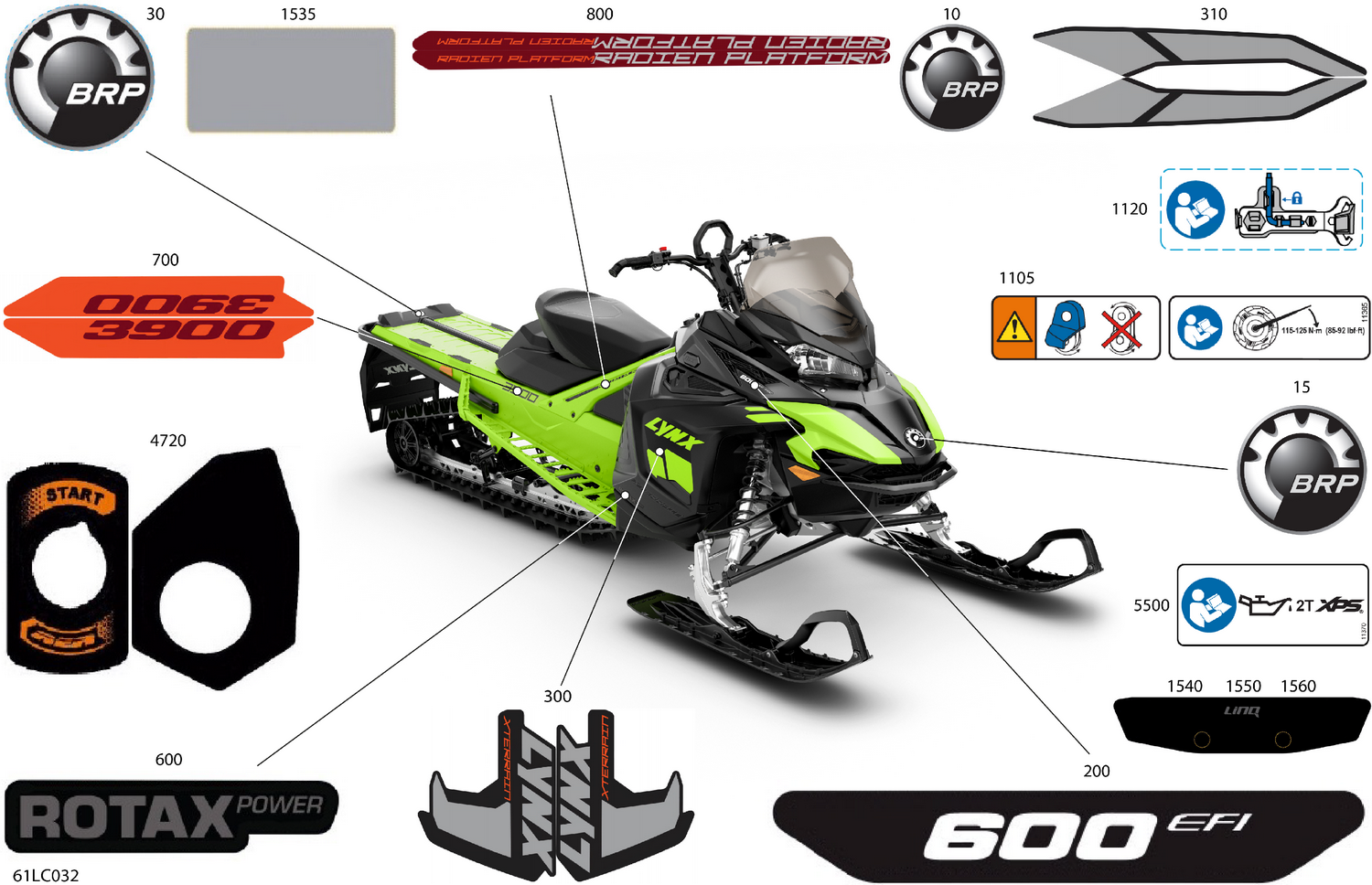

| 200 |
516010363 |
Upper Sidepanel Decal "600 EFI" |
| 300 |
516010629 |
LH/RH Side Panel Decal "Lynx X Terrain" |
| 310 |
516010970 |
LH/RH Side Panel Decal |
| 600 |
516008760 |
Decal "Rotax Power" |
| 700 |
516010633 |
LH/RH Tunnel Decal |
| 800 |
516010635 |
LH/RH Platform Decal |
| 1105 |
516011365 |
Clutch Instruction Label |
| 1120 |
516011629 |
Tool Instruction Label |
| 1535 |
516009954 |
Protective Decal |
| 1540 |
516011681 |
Decal Q-Link |
| 1550 |
516011681 |
Decal Q-Link |
| 1560 |
516011681 |
Decal Q-Link |
| 4720 |
516010547 |
Ident. Decal |
