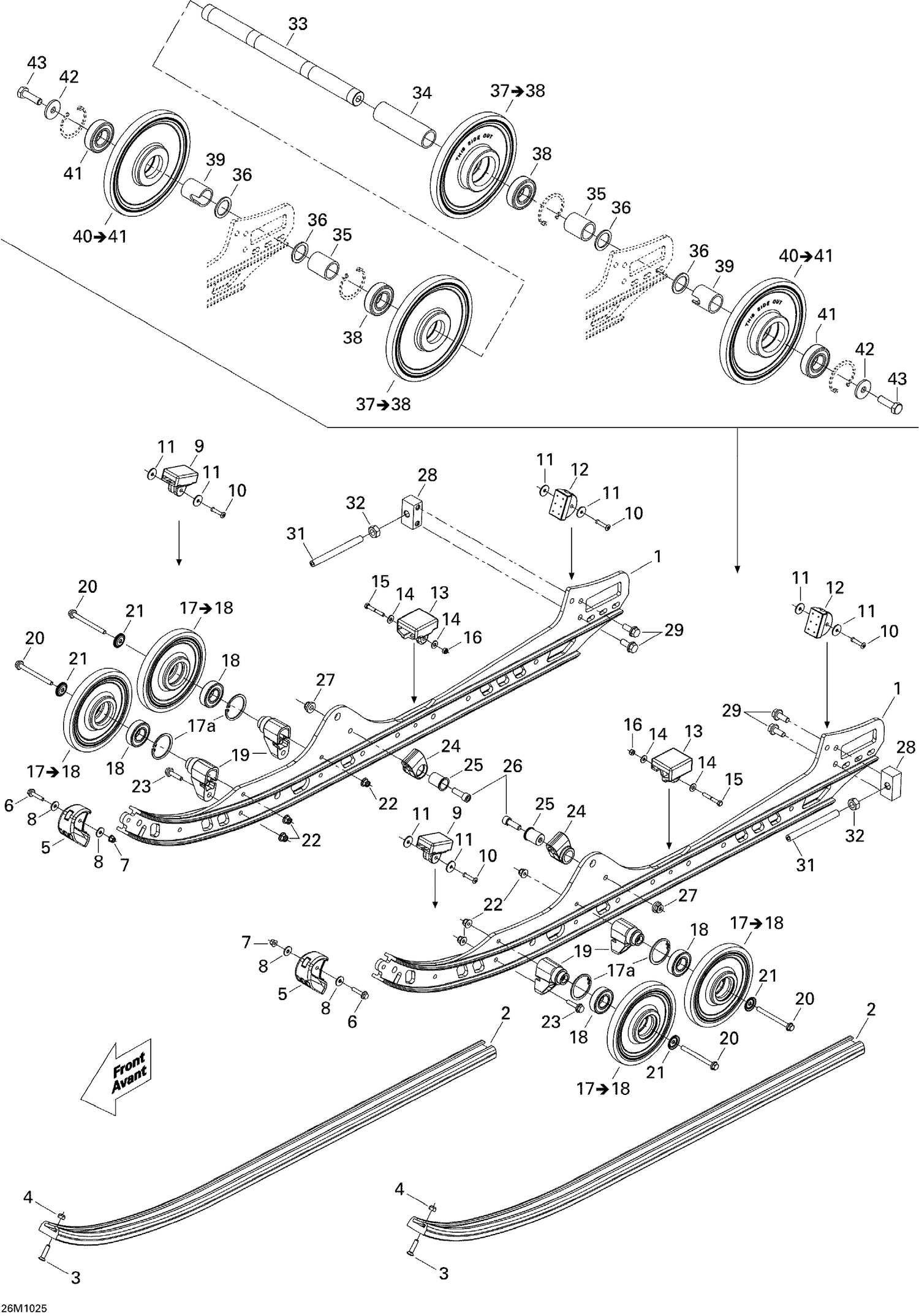

08- Rear Suspension
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503192291 | RUNNER - Call your local BRP dealership |
| 2 | 503190573 | Slider Shoe |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 503191137 | Runner Protector |
| 6 | 207652544 | Hex. Flange Screw M5 X 25 |
| 7 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 8 | 391301600 | Washer |
| 9 | 503190576 | Rubber Stopper |
| 10 | 293150142 | Pop Rivet 3/16" |
| 11 | 503191273 | Washer |
| 12 | 503191291 | Rubber Stopper |
| 13 | 503192099 | RUBBER STOPPER - Call your local BRP dealership |
| 14 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 15 | 207053544 | Hex. Screw M5 X 35 |
| 16 | 232551414 | Elastic Stop Nut M5 |
| 17a | 415129371 | Retaining Ring |
| 18 | 503190396 | Ball Bearing |
| 19 | 503193894 | Casted Support This part replaces 503191833. |
| 20 | 207667044 | Hex. Flange Screw M6 X 70 |
| 21 | 503191820 | Wheel Cup M6 |
| 22 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 23 | 207662544 | Hex. Flange Screw M6 X 25 |
| 24 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 25 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 26 | 205082544 | Socket Head Screw M8 X 25 |
| 27 | 233281414 | Hex. Flange Elastic Nut M8 |
| 28 | 503191984 | TENSIONER - Call your local BRP dealership |
| 29 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 31 | 504152602 | Adjustment Screw |
| 32 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 33 | 503167900 | Rear Axle |
| 34 | 503156000 | Center Spacer |
| 35 | 503182900 | Inner Spacer |
| 36 | 503180400 | Washer |
| 38 | 293350115 | Ball Bearing This part replaces 293350055. |
| 39 | 503189809 | Outer Spacer |
| 41 | 293350115 | Ball Bearing This part replaces 293350055. |
| 42 | 503183300 | Washer |
