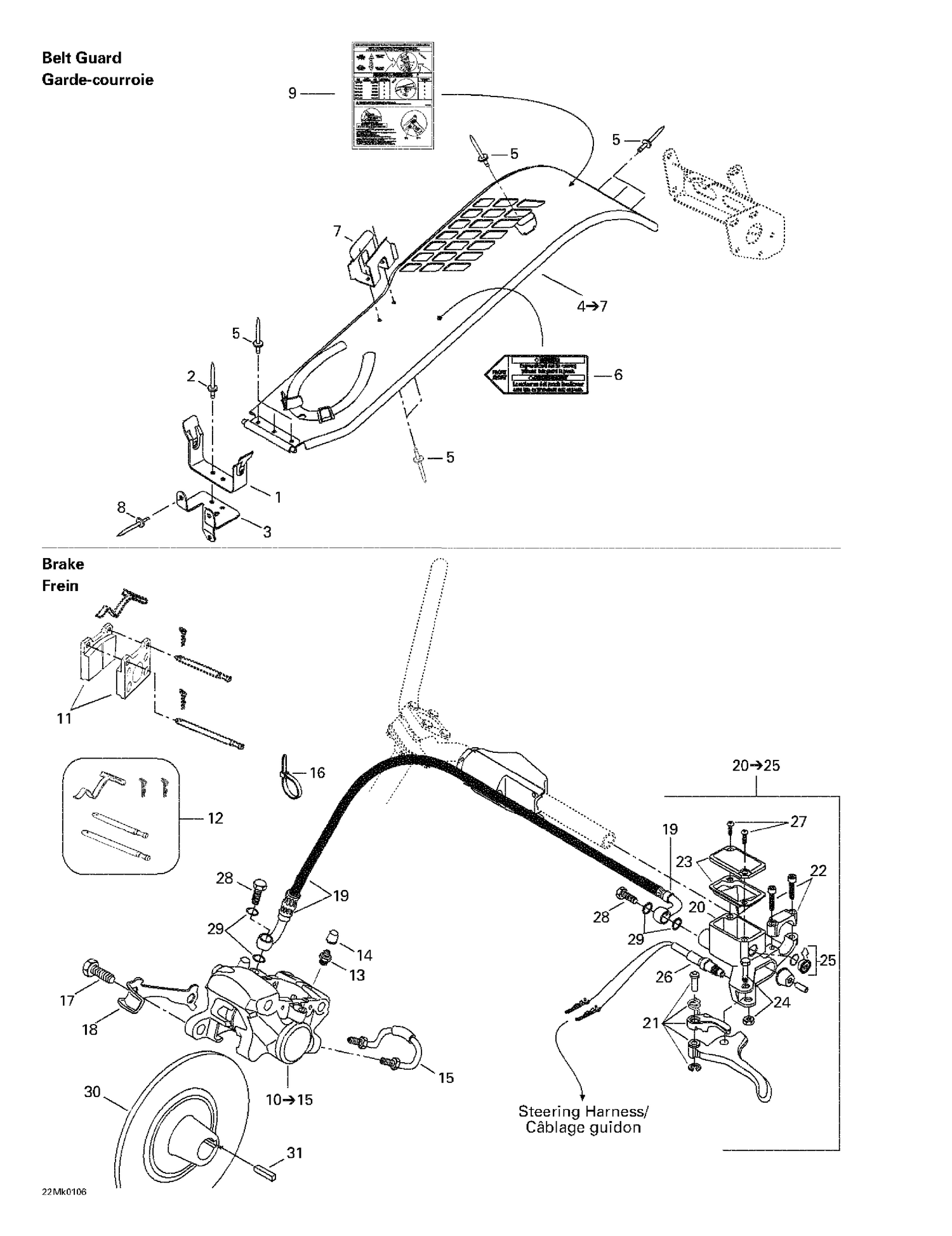

| Ref | Part Number | Description |
|---|
| 1 |
518202100 |
Belt Guard Bracket |
| 2 |
390402200 |
Pop Rivet 3/16" |
| 3 |
518317000 |
Pulley Guard Support |
| 5 |
390402200 |
Pop Rivet 3/16" |
| 6 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516000132. |
| 7 |
517281905 |
Bracket |
| 8 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 9 |
516000953 |
Suspension Adjustment Decal (SE) |
| 11 |
415084600 |
Brake Pad Kit This part replaces 414990000. |
| 12 |
414990700 |
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership |
| 13 |
414989800 |
BLEEDER SCREW - Call your local BRP dealership |
| 14 |
414989700 |
BOOT-QTS 20 - Call your local BRP dealership |
| 15 |
414989900 |
RIGID TUBING - Call your local BRP dealership |
| 16 |
293750008 |
Tie Wrap 368 mm |
| 17 |
207103544 |
Hex. Screw M10 X 35 |
| 18 |
507031900 |
Locking Tab |
| 19 |
507032272 |
Hose |
| 21 |
507032428 |
LEVER - Call your local BRP dealership This part replaces 415075300. |
| 22 |
507032477 |
Clamp And Screw Kit This part replaces 415029800. |
| 23 |
415029900 |
Cap |
| 24 |
415030000 |
Pin Ass'y |
| 25 |
414990600 |
WINDOW - Call your local BRP dealership |
| 26 |
507032366 |
Microswitch This part replaces 507032285. |
| 27 |
216141260 |
SCREW M4 X 12 - Call your local BRP dealership |
| 28 |
414920500 |
Banjo Bolt |
| 29 |
414920600 |
Washer |
| 30 |
507031300 |
BRAKE DISK - Call your local BRP dealership |
