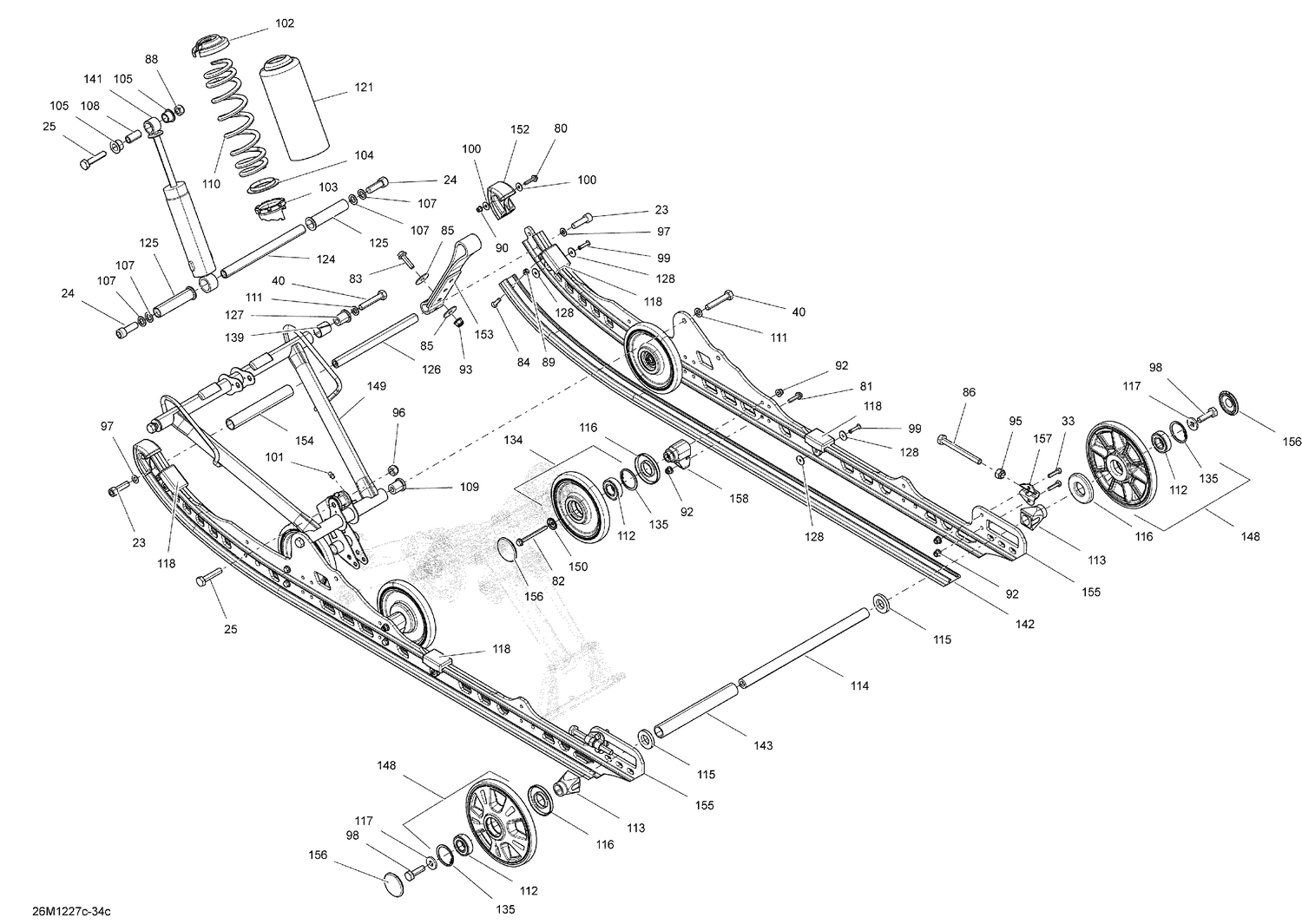

08- Rear Suspension Base 137, Front Arm
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 23 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 24 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 25 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 33 | 250000479 | HEX. SCREW CAP FULL THREAD M6 X 25 - Call your local BRP dealership |
| 40 | 207205586 | HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership |
| 80 | 207652544 | Hex. Flange Screw M5 X 25 |
| 83 | 207683044 | Hex. Flange Screw M8 X 30 |
| 84 | 208562531 | Phillips Screw M6 X 25 |
| 85 | 224081301 | Flat Washer |
| 86 | 230100054 | Hex Screw M10 x 100 |
| 88 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 89 | 232561414 | Elastic Stop Nut M6 |
| 90 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 93 | 233281414 | Hex. Flange Elastic Nut M8 |
| 95 | 250100132 | ELASTIC LOCKING NUT M10 - Call your local BRP dealership |
| 96 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 97 | 503189564 | Washer |
| 98 | 250000019 | Hex. Screw With Nylon |
| 99 | 293150142 | Pop Rivet 3/16" |
| 100 | 391301600 | Washer |
| 101 | 408200700 | Grease Fitting |
| 102 | 706200881 | Spring Stopper |
| 103 | 505073625 | Adjustment Cam This part replaces 505070150. |
| 104 | 503191872 | Spring Guide |
| 105 | 503189117 | Urethane Bushing |
| 107 | 503189276 | Washer |
| 108 | 503189282 | Bushing |
| 109 | 503189324 | Bushing |
| 111 | 503189564 | Washer |
| 111 | 503192496 | Washer |
| 112 | 503190396 | Ball Bearing |
| 113 | 503190428 | Rear Wheel Spacer |
| 114 | 503190429 | Rear Axle |
| 115 | 503190432 | Washer |
| 117 | 503190439 | Washer |
| 118 | 503190576 | Rubber Stopper |
| 121 | 503193663 | Protector This part replaces 503191126. |
| 124 | 503189272 | CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258. |
| 125 | 503191259 | Center Bushing |
| 126 | 503191260 | Axle Strap |
| 127 | 503191262 | Bushing |
| 128 | 503191273 | Washer |
| 135 | 415129371 | Retaining Ring |
| 139 | 503191556 | Extended Bushing |
| 141 | 503192266 | Center Shock |
| 142 | 503191619 | Slider 137 |
| 149 | 503191752 | Front Arm |
| 152 | 503192299 | Runner Protector |
| 153 | 503192360 | Stopper Strap |
| 154 | 503196943 | Spacer This part replaces 503192678. |
| 155 | 503192902 | RAIL_SUSPENSION 137 - Call your local BRP dealership |
| 156 | 503192771 | Black, Wheel Cap |
| 157 | 503192583 | Tensioner This part replaces 503192814. |
