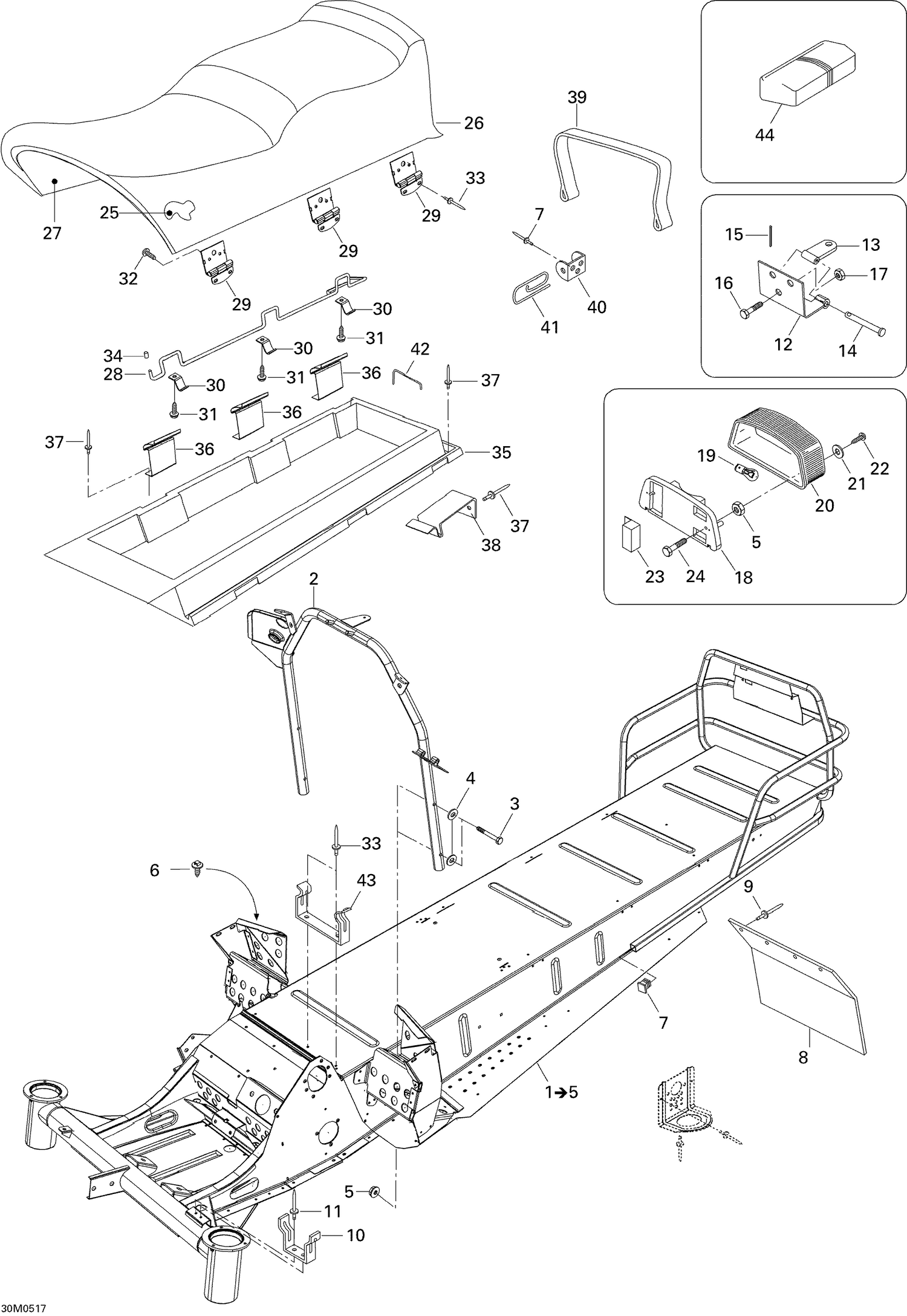

09- Frame And Seat
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605148749 | Lt Frame Ass'y |
| 2 | 605250274 | Handle Support |
| 3 | 207064044 | Hex. Screw M6 X 40 |
| 4 | 234061410 | Flat Washer 6 mm |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 6 | 414644300 | Black, Dart |
| 7 | M28232 | PLUG - Call your local BRP dealership |
| 8 | 572013800 | Snow Guard |
| 9 | M36036 | Black, Rivet |
| 10 | 518202100 | Belt Guard Bracket |
| 11 | 36108 | Rivet This part replaces M36083. |
| 12 | M5346638 | Plate |
| 13 | 548745 | TONGUE WELD - Call your local BRP dealership This part replaces M548745. |
| 14 | 560309200 | PIN-RETAINER - Call your local BRP dealership |
| 15 | 41031 | Cotter Pin This part replaces M41031. |
| 16 | 40336 | HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336. |
| 17 | 232581414 | Hex. Elastic Stop Nut M8 |
| 18 | 510004061 | LIGHT HOUSING - Call your local BRP dealership |
| 19 | 520000758 | Bulb This part replaces 410504100. |
| 20 | 414513700 | Lens |
| 21 | 414516400 | Washer - Call your local BRP dealership |
| 22 | 209632540 | Phillips Tapping Screw M3.9 X 25 |
| 23 | 605448415 | PROTECTION PLATE - Call your local BRP dealership |
| 24 | 207063044 | Hex. Screw M6 X 30 |
| 25 | M5145106 | Seat Foam |
| 26 | 605148629 | Cover Seat |
| 27 | M5144962 | Seat Base |
| 28 | M5245337 | Locking Shaft |
| 29 | M5346518 | Hinge |
| 30 | M5446102 | Locking Plate |
| 31 | M40888 | Screw |
| 32 | M40887 | SCREW - Call your local BRP dealership |
| 33 | 36108 | Rivet This part replaces M36083. |
| 34 | M28019 | Cap |
| 35 | 605350823 | Seat Box |
| 36 | M5345195 | Lock |
| 37 | M36489 | Rivet |
| 38 | M5346728 | SPRING PLATE - Call your local BRP dealership |
| 39 | M5346727 | SEAT BELT - Call your local BRP dealership |
| 40 | M548824 | Seat Belt Latch |
| 41 | 548834 | Spring This part replaces M548834. |
| 42 | M5441849 | Stopper Hook |
| 43 | M5346204 | Support |
