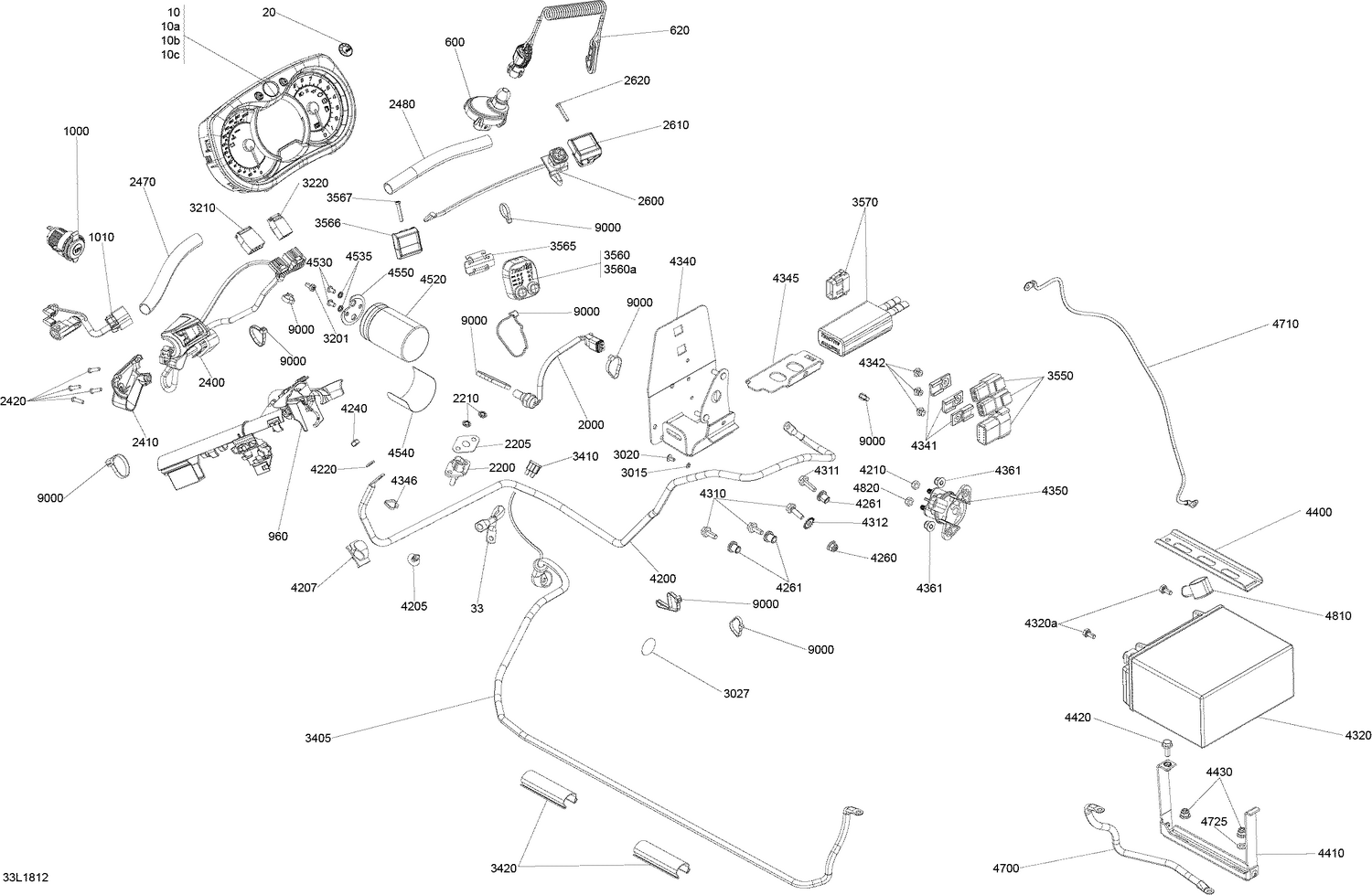

10- Electrical Xtrim - 600HO E-TEC - SC
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 415129355 | Speedometer Button |
| 10b | 415129348 | Hastighetsmätare ram |
| 10c | 415129349 | Class och tätning |
| 20 | 516006224 | BRP Logo, 20MM x 2MM |
| 33 | 515177289 | Engine ground wire |
| 600 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 620 | 515178288 | Key |
| 960 | 515177134 | Connector Plate |
| 1000 | 710001248 | Pistoke, virran ulosotto |
| 2000 | 420664509 | Temperature Senor This part replaces 515177813. |
| 2200 | 515176366 | Air Temperature Sensor |
| 2205 | 508000769 | Seal ring |
| 2210 | 389804300 | Push Nut |
| 2400 | 515178197 | LH Switch Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415129879 | Corrugated Tube |
| 2480 | 415129879 | Corrugated Tube |
| 2600 | 515177362 | Emergency Stop Switch |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3015 | 234141601 | Lock Washer 4 mm |
| 3020 | 250000741 | Screw-Torx Button Head M4 X 8 |
| 3027 | 518325560 | Adhesive Patch |
| 3201 | 250000690 | Pan Screw Forming, 7500C |
| 3210 | 515175662 | Male Terminal Housing, 8 Circuits |
| 3220 | 515175846 | Male Terminal Housing, 8 Circuits |
| 3405 | 515177496 | Battery Cable With Charging |
| 3410 | 278001443 | Fuse, 25 Amperes |
| 3420 | 520001525 | Trim |
| 4200 | 515177208 | Battery/Starter Wire |
| 4205 | 414644300 | Black, Dart |
| 4207 | 515177066 | Clip |
| 4210 | 232561414 | Elastic Stop Nut M6 |
| 4220 | 234061410 | Flat Washer 6 mm |
| 4240 | 232561414 | Elastic Stop Nut M6 |
| 4260 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4310 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4311 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4312 | 250200041 | Lock Washer Serrated M6 |
| 4320a | 250000282 | Battery Bolt Kit |
| 4350 | 278003012 | Starter Relay |
| 4361 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 4400 | 518327281 | Battery Strap |
| 4410 | 518327282 | Battery Strap |
| 4430 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 4520 | 515177272 | Capacitor |
| 4530 | 250000462 | Socket Head Screw M10 X 32 |
| 4535 | 250200026 | Lock Washer |
| 4540 | 516006206 | Capacitor Decal |
| 4550 | 515177193 | Cap |
| 4700 | 515176780 | Battery ground cable 380 mm. |
| 4710 | 515178052 | Ground Cable |
| 4725 | 234061410 | Flat Washer 6 mm |
| 4810 | 570151000 | Cap protection, black |
| 4820 | 232561414 | Elastic Stop Nut M6 |
| 9000 | 293750001 | Tie-Rap 94 mm |
| 9000 | 293750002 | Tie-Rap 142 mm |
| 9000 | 414115200 | Tie-Rap 180 mm |
